BOILING & CHILLED FILTERED WATER

BOILING & CHILLED FILTERED WATER

Product catalog summary

Overview: The HydroTap is an advanced, energy-efficient system providing boiling and chilled filtered drinking water. It is available with a stand-alone font or a sink-mounted tap-head, designed for user convenience and accessibility.

Features:

Boiling, chilled, filtered water system
Choice of tap location
High energy efficiency
Ergonomic design with safety lock
Oversize levers for disabled users

Specifications:

Boiling water set at 98.0°C, adjustable for altitude
Chilled water temperature between 4.7°C – 10.1°C
Chiller uses a 1/4 hp compressor with R134a refrigerant
Sub-micron triple action filter with Precoat Technology
High temperature styrene insulation for tanks

Functionality:

Filtration system activation between 1,000 and 6,000 litres
Two sleep mode facilities for energy saving
Programmable daily cycle for energy efficiency
Safety features to prevent accidental use

Usage and Installation:

Suitable for ambient temperatures up to 35ºC
Direct connection to mains water supply required
Minimum water pressure of 1.75 bar, with pressure reducing valve if exceeding 7 bar
Installation requires a double pole fused spur conforming to IEE regulations

Models and Capacity:

Boiling/Chilled/Filtered: 100 boiling cups/hour, 125 chilled glasses/hour, 2.7 litres boiling, 3.5 litres chilled, 1.8 kW
Boiling/Filtered: 100 boiling cups/hour, 2.7 litres boiling, 1.5 kW

Contact Information: Zip Heaters (UK) Ltd, 14 Bertie Ward Way, Dereham, NR19 1TE. Tel: 01362 852222, Fax: 01362 692448, Email: [email protected], Website: www.zipdesignerrange.co.uk

Catalog excerpts

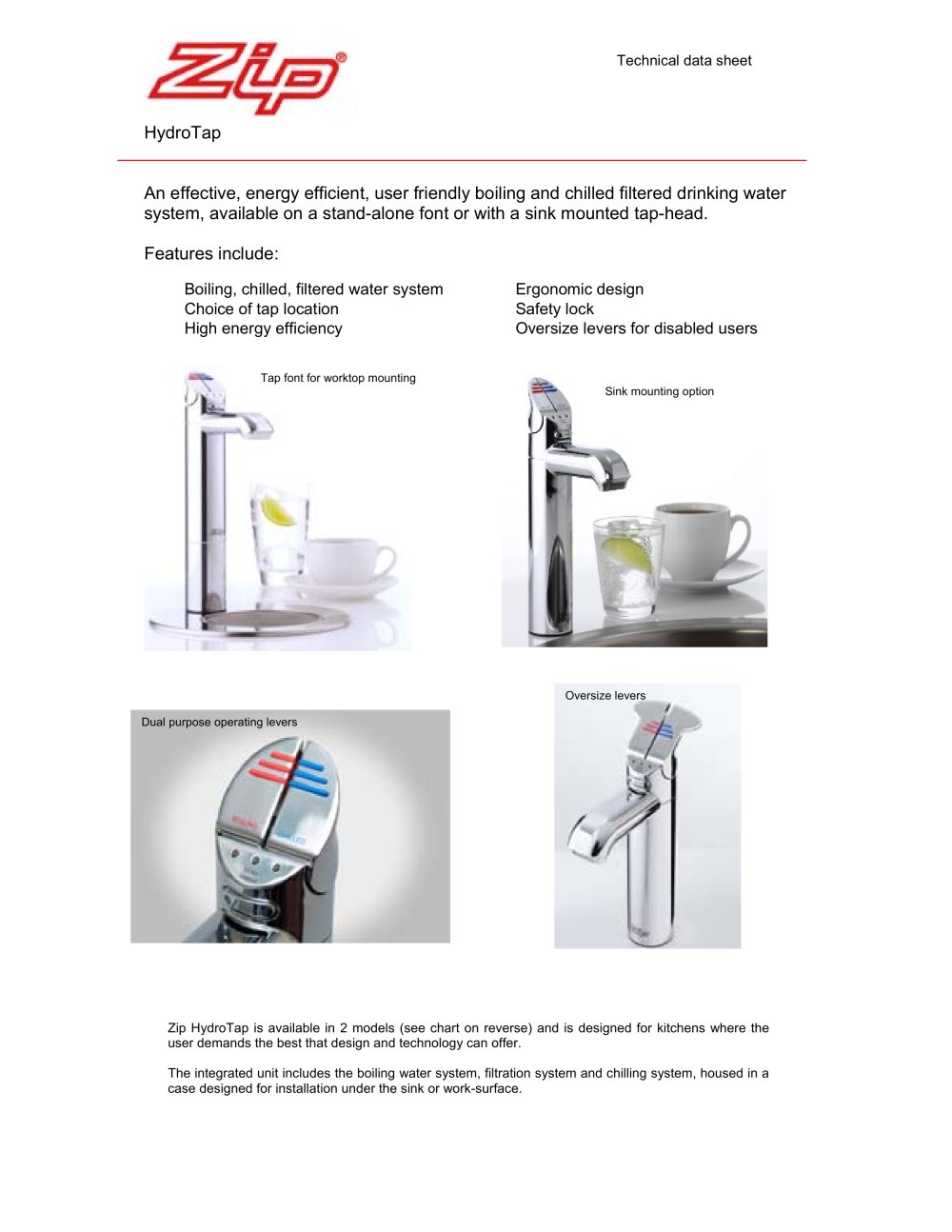

Technical data sheet Boiling, chilled, filtered water system Ergonomic design Choice of tap location Safety lock High energy efficiency Oversize levers for disabled users > Tap font for worktop mounting Sink mounting option Dual purpose operating levers Oversize levers Zip HydroTap is available in 2 models (see chart on reverse) and is designed for kitchens where the user demands the best that design and technology can offer. The integrated unit includes the boiling water system, filtration system and chilling system, housed in a case designed for installation under the sink or work-surface. size="-2">

Open the catalog to page 1

Technical data sheet > DESCRIPTION Zip HydroTap is a sophisticated drinking water system that is designed to deliver boiling and chilled filtered water or boiling filtered water. All available with the option of over-size levers. The taphead can be installed on the specially designed font or at the side of the sink, whichever is more suitable. Functionality (cont) 3. Program the system to cycle on and off at a pre- determined time each day. This sleep mode will keep the boiling tank temperature at 64 C and thus save energy. This temperature will minimise energy consumption whilst preventing the...
