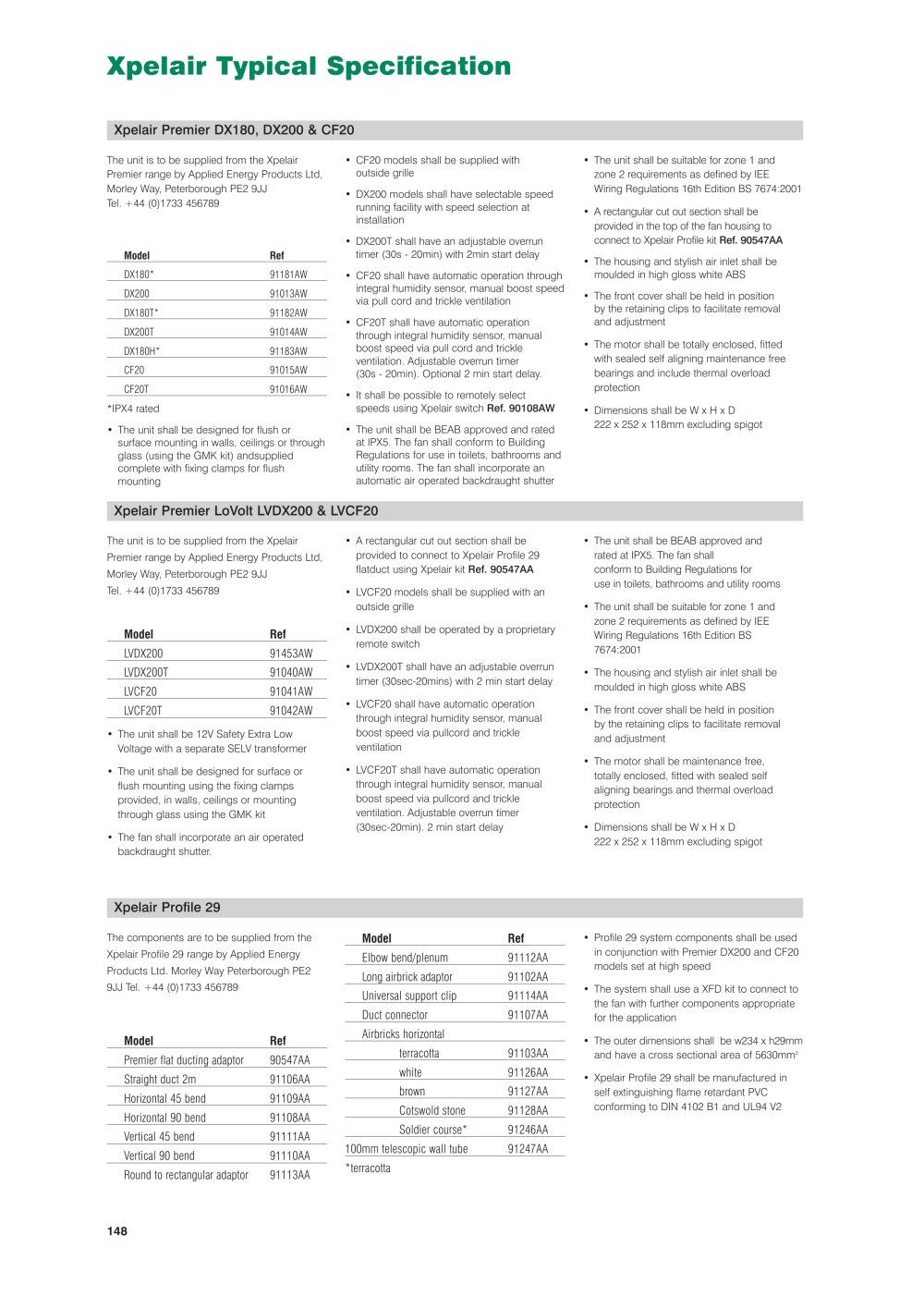

Xpelair Typical Specification
18Pages

Ref. 90547AA The housing and stylish air inlet shall be moulded in high gloss white ABSՕThe front cover shall be held in position by the retaining clips to facilitate removal and adjustmentThe motor shall be totally enclosed, fitted with sealed self aligning maintenance free bearings and include thermal overload protectionՕDimensions shall be W x H x D 222 x 252 x 118mm excluding spigot The unit is to be supplied from the XpelairPremier range by Applied Energy Products Ltd, Morley Way, Peterborough PE2 9JJ Tel. +44 (0)1733 456789 Ref. 90108AW The unit shall be BEAB approved and rated at IPX5. The fan shall conform to Building Regulations for use in toilets, bathrooms and utility rooms. The fan shall incorporate an automatic air operated backdraught shutter ՕThe unit shall be suitable for zone 1 and zone 2 requirements as defined by IEE Wiring Regulations 16th Edition BS 7674:2001A rectangular cut out section shall be provided in the top of the fan housing to connect to Xpelair Profile kit ModelRef DX180*91181AW DX20091013AW DX180T*91182AW DX200T91014AW DX180H*91183AW CF2091015AW CF20T91016AW *IPX4 ratedՕThe unit shall be designed for flush or surface mounting in walls, ceilings or through glass (using the GMK kit) andsupplied complete with fixing clamps for flush mounting CF20 models shall be supplied with outside grilleՕDX200 models shall have selectable speed running facility with speed selection at installationDX200T shall have an adjustable overrun timer (30s - 20min) with 2min start delayՕCF20 shall have automatic operation throughintegral humidity sensor, manual boost speed via pull cord and trickle ventilationCF20T shall have automatic operation through integral humidity sensor, manual boost speed via pull cord and trickle ventilation. Adjustable overrun timer (30s - 20min). Optional 2 min start delay.ՕIt shall be possible to remotely select speeds using Xpelair switch Ref. 90547AA LVCF20 models shall be supplied with an outside grilleՕLVDX200 shall be operated by a proprietary remote switchLVDX200T shall have an adjustable overrun timer (30sec-20mins) with 2 min start delayՕLVCF20 shall have automatic operation through integral humidity sensor, manual boost speed via pullcord and trickle ventilationLVCF20T shall have automatic operation through integral humidity sensor, manual boost speed via pullcord and trickle ventilation. Adjustable overrun timer (30sec-20min). 2 min start delay ՕThe unit shall be BEAB approved and rated at IPX5. The fan shall conform to Building Regulations for use in toilets, bathrooms and utility roomsThe unit shall be suitable for zone 1 and zone 2 requirements as defined by IEE Wiring Regulations 16th Edition BS 7674:2001ՕThe housing and stylish air inlet shall be moulded in high gloss white ABSThe front cover shall be held in position by the retaining clips to facilitate removal and adjustmentՕThe motor shall be maintenance free, totally enclosed, fitted with sealed self aligning bearings and thermal overload protectionDimensions shall be W x H x D222 x 252 x 118mm excluding spigot The unit is to be supplied from the XpelairPremier range by Applied Energy Products Ltd, Morley Way, Peterborough PE2 9JJ Tel. +44 (0)1733 456789 ModelRef LVDX20091453AW LVDX200T91040AW LVCF2091041AW LVCF20T91042AW > ՕThe unit shall be 12V Safety Extra Low Voltage with a separate SELV transformerThe unit shall be designed for surface or flush mounting using the fixing clamps provided, in walls, ceilings or mounting through glass using the GMK kitՕThe fan shall incorporate an air operated backdraught shutter. A rectangular cut out section shall be provided to connect to Xpelair Profile 29 flatduct using Xpelair kit The components are to be supplied from theXpelair Profile 29 range by Applied EnergyProducts Ltd. Morley Way Peterborough PE2 9JJ Tel. +44 (0)1733 456789 ModelRef > ՕProfile 29 system components shall be used in conjunction with Premier DX200 and CF20 models set at high speed The system shall use a XFD kit to connect to the fan with further components appropriate for the applicationՕThe outer dimensions shall be w234 x h29mmand have a cross sectional area of 5630mm Elbow bend/plenum91112AA Long airbrick adaptor91102AA Universal support clip91114AA Duct connector91107AA ModelRef Airbricks horizontal > 2 Premier flat ducting adaptor90547AA terracotta91103AA Straight duct 2m91106AA white91126AA > Xpelair Profile 29 shall be manufactured in self extinguishing flame retardant PVC conforming to DIN 4102 B1 and UL94 V2 Horizontal 45 bend91109AA brown91127AA Horizontal 90 bend91108AA Cotswold stone91128AA Vertical 45 bend91111AA Soldier course*91246AA Vertical 90 bend91110AARound to rectangular adaptor91113AA 100mm telescopic wall tube91247AA*terracotta 148 >

The unit is to be supplied from the Xpelair DX100range by Applied Energy Products Ltd, Morley Way, Peterborough PE2 9JJ Tel. +44 (0)1733 456789 The unit shall be designed for wall, ceiling, shaft (or window mounting in glass up to 6mm thick) using the kit provided. An air operated backdraught shutter shall be includedՕThe fan housing shall be moulded in high gloss white ABS and be of modern design with finger guarding for additional safety protectionThe motor shall be lubricated for life with built in safety thermal overload protectionՕThe unit shall be rated at IPX5 In addition it shall...

The unit is to be supplied from the XpelairCentrX range by Applied Energy Products Ltd, Morley Way, Peterborough PE2 9JJ Tel. +44 (0)1733 456789 The unit shall be of panel design with a centrifugal high pressure performance characteristic. The spigot outlet shall be suitable for connection to 100mm flexible or rigid wall tubes or ductingՕModels shall be available with built in time overrun and built in humidistat auto controlThe unit shall be rated at IPX4. The fan shall conform to Building Regulations for use in toilets, bathrooms and utility roomsՕThe housing shall be moulded in high...

The unit is to be supplied from the Xpelair XIMrange by Applied Energy Products Ltd. Morley Way, Peterborough PE2 9JJ. Tel. +44 (0)1733 456789 The unit shall be suitable for ducted applications where high humidity is present ՕThe unit shall be of polymer construction withspigots for attachment to the ductwork. The impeller shall be of mixed flow design with matching guide vanes. A QuickLock installation cradle shall be provided for easy installation ՕThe motor shall be maintenance free, with greased for life bearings and safety thermal overload protectionT models shall include integral...
