Product catalog summary

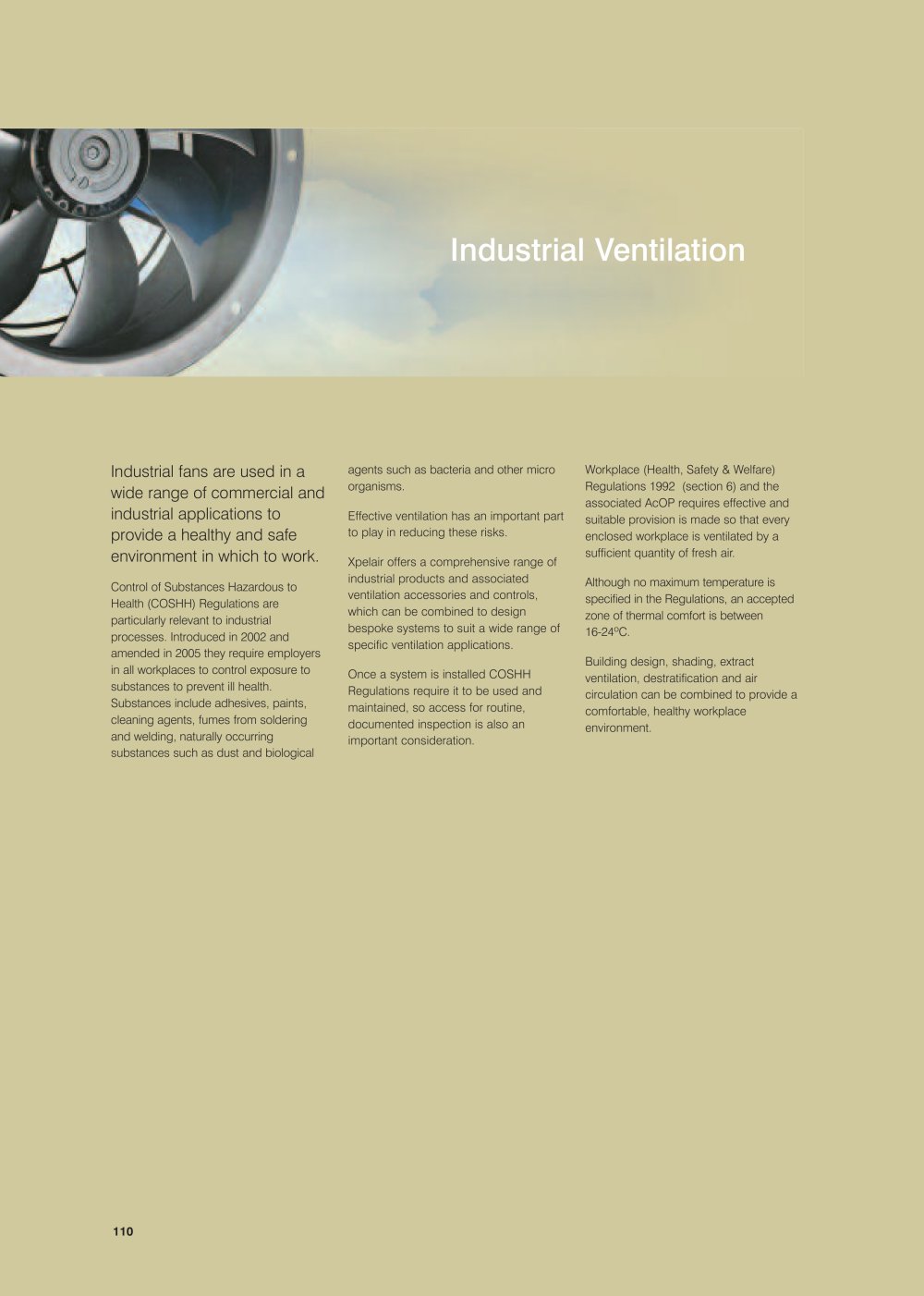

Overview: Industrial fans play a crucial role in maintaining safe work environments by controlling exposure to hazardous substances, as mandated by the Control of Substances Hazardous to Health (COSHH) Regulations. Effective ventilation reduces risks from substances like adhesives and fumes.

Regulations: The COSHH Regulations (2002, amended 2005) require employers to manage exposure to hazardous substances. The Workplace (Health, Safety & Welfare) Regulations 1992 mandate adequate ventilation in enclosed workplaces, maintaining a thermal comfort zone of 16-24ºC.

Product Range: Xpelair offers a wide range of industrial fans, including plate mounted, short case, roof fans, and mixed flow models, customizable for specific ventilation needs.

Specifications: Detailed specifications for fan models include maximum diameter, extract rate, and power consumption. For instance, plate mounted axial fans have a maximum diameter of 630mm and an extract rate of 2.40 m3/s.

Key Features: The Scimitar and Rapier ranges feature sickle blade designs for optimized airflow and reduced noise, are speed controllable, and have safety thermal overload protection, suitable for temperatures from -30ºC to +60ºC.

Installation and Maintenance: Proper installation and routine maintenance are emphasized to comply with COSHH Regulations. Recommended accessories include finger guards and louvre shutters for safety and efficiency.

Controllers: Various control options, including electronic and transformer speed controllers, allow precise fan operation and speed adjustment.

Installation Guidelines: Fans can be installed at any angle. For installations through an outside wall below 2.5m, a finger guard and suitable external weather protection are recommended.

Product Specifications: Specifications for fan models include electronic speed control, robust construction, and IPX4 protection, suitable for temperatures from -30ºC to +60ºC with a supply voltage of 220-240V 50Hz.

Performance Data: Performance data tables detail fan blade diameters, nominal fan speeds, extract performance at various pressures, sound pressure levels, and electrical specifications.

Control Options: Control options include the Industrial Fan Controller XCW and the 5 Step Transformer Speed Controller, providing on/off and variable speed control, designed for surface or recess mounting with IPX4 protection.

Applications: Suitable for commercial and industrial applications like kitchens, factories, garages, and warehouses, with high performance and low noise features.

Accessories and Installation: Recommended accessories include coupling flanges, mounting feet, and anti-vibration mounts for ducted applications, supplied in installation packs.

Guarantee: Most products come with a 2-year guarantee, ensuring reliability and customer satisfaction.

Inline Fans Overview: Detailed specifications, installation guidelines, and accessory options for Xpelair's inline fans, designed for high humidity and exposed environments.

Specifications: Dimensions, performance metrics, and key features of each fan model are outlined, with performance metrics such as extract performance and sound pressure levels provided.

Installation and Accessories: Installation diagrams and a wide range of accessories, including flexible ducting and grille boxes, are provided.

Control Options: Various control options, including speed control and humidity/PIR sensing, allow adjustable speed settings and automatic operation based on environmental conditions.

Performance and Features: High performance and efficiency with features like impact and fire-resistant casings and backward-curved impellers.

Models and Key Features: Each fan model is described with unique features and applications, such as the MinimX range for restricted ceiling spaces and the LoSound range for noise-sensitive environments.

Conclusion: Xpelair offers a comprehensive range of inline fans for various applications, focusing on performance, efficiency, and ease of installation.

Additional Features: The document details various controllers and accessories, including electronic speed controllers and transformer speed controllers, for precise speed adjustments.

Button Operations and Manual Reset: Systems require a manual reset after a failure, with a volts-free contact for alarm connection, designed for surface mounting with an IP55 rating.

Sensors and Grilles: Various sensors and grilles, including remote humidistats and air quality sensors, provide automatic control and are compatible with fan models.

Catalog excerpts

Mixedflowverticaldischargerooffans XpelairXMV|

Open the catalog to page 14

5 Step Transformer Speed Controller Multi-tapped auto transformer giving 5 speeds allowing accurate adjustment to suit site conditionsՕProvides five speed and On/Off function Robust ISO casing ՕIPX4 protected Inline Fan Controller XIC1Ref. 21858AW Slide switch provides On/Off control. Adjustable speed control for infinitely variable speeds. Complete with power ՑOn indicator light > Typical Specifications on page 164. > An extensive range of accessories areavailable to complete the installation of theXpelair LoSound C Range of inlinecentrifugal fans. Xflex FDWorm drive clips WDCGrille box GB Egg...

Open the catalog to page 26

5 Step Transformer Speed Controller Multi-tapped auto transformer giving 5 speeds allowing accurate adjustment to suit site conditionsՕProvides five speed and On/Off function Robust ISO casing ՕIPX4 protected Inline Fan Controller XIC1Ref. 21858AW Slide switch provides On/Off control. Adjustable speed control for infinitely variable speeds. Complete with power ՑOn indicator light Dimensions (mm)ModelABCҘD XSFA100 450515250100 > Typical Specifications on page 165. XSFA125 450515250125 > Wiring Diagrams on page 175. XSFA150 450515250150 XSFA200 450515250200 XSFA250 600915450250 XSFA315/1 600915450315...

Open the catalog to page 30

Trapeze TP450Ref. 91412AA Suspended air circulation unit Օ460mm fan diameter For horizontal or vertical suspension ՕThe distance of the fan to the floor should beno less than 2700mmStainless steel construction ՕContinuously rated totally enclosed maintenance free motor with sealed for life bearings IPX5IPX6 connection box ՕFour suspension eyes Suitable for ambient temperature up to 40պC Supply voltage: 220-240V 50Hz ՕPortable commercial cooling fans in four sizesPowder coated fan housing ՕAngle adjustable and lock Tubular steel frame ՕSafety finger guards to DIN 24167 (UNE 20-359-74) fitted inlet...

Open the catalog to page 32

In single and 3 phase suitable for speed control of all speed controllable fans ՕRobust light grey ISO sealed casing Rotary switch ՕFully impregnated transformer ISO class II, T40 E conforms to VDE 0550Max. ambient Temp. +40պC Automatic reconnection after mains failure ՕIntegrated status signal lamp Electronic Speed Controller SXCW1AMP XCW1.1Ref. 89903AA 3AMP XCW1.3Ref. 89904AA 6AMP XCW1.6Ref. 90408AA Inline Fan Controller XIC1Ref. 21858AW 5 Step Transformer Speed Controller T1/T3Single phase T1 - 1.5ARef. 91367AA T1 - 3.5A Ref. 91368AA T1 - 6A Ref. 91369AA T1 - 7.5A Ref. 91370AA T1 - 12A Ref....

Open the catalog to page 33

Starter and Thermal Overload Protection STPSTP1 Single phase 0.4 - 10ARef. 91372AA STP3 3 phase 0.1 - 25A Ref. 91373AA Remote Humidistat XRHRef. 21856AW Time Delay Controller DT20BRef. 21850AW For single phase fans with thermal contact leads wired to a terminal block and single speed three phase fans with thermal contacts. Used with motors of higher performance where the thermal contacts or PTC thermistors are wired to the terminal block and must be connected to a motor protection deviceՕOn/Off push button operations. Manual reset after failure (not after power loss)Volts free contact for connection...

Open the catalog to page 34

External Louvre Grilles EGHole diameterEG30300x300mm Ref. 89534AA EG45450x450mm Ref. 89535AA EG50500x500mm Ref. 90538AA EG67670x670mm Ref. 90539AA Air Operated Louvre Shutters XLSHoleXLS315315x315mmRef. 89905AA XLS350350x350mm Ref. 91144AA XLS400400x400mm Ref. 89906AAXLS450450x450mm Ref. 89907AA XLS500500x500mm Ref. 90540AA XLS670670x670mm Ref. 90541AA Plastic constructionՕFixed to outside of exterior wall Air operated ՕColour: white Air Operated Louvre Shutters XLG Hole diameterXLG100100mm dia Ref. 89691AAXLG125120mm diaRef. 89692AA XLG150160mm diaRef. 89693AA XLG200200x200mmRef. 89694AA XLG250250x250mm...

Open the catalog to page 35

Used in conjunction with egg-crate ceiling grille and ceiling diffuser grille to connect to ductworkՕUse Xflex FD or TFD to attach to spigot and secure with worm drive dip Grille Box GBDuct Dia SquareGB20/100100mm 200mm Ref. 89676AA GB20/125125mm 200mm Ref. 89677AA GB20/150150mm 200mm Ref. 89678AA GB30/200200mm 300mmRef. 89679AA GB30/250250mm 300mmRef. 89680AA GB45/315315mm 450mmRef. 89681AA GB50/315315mm 500mm Ref. 89828AA GB60/315315mm 600mm Ref. 90296AA > Spigot Plate/Damper FWS Four Way Ceiling Diffusers FW To fit square DiffuserSpigotduct sizeSquareDiaFW225225x225mm Ref. 91424AA FWS150 225mm...

Open the catalog to page 36

Flexible Ducting Xflex FDDiaLengthFD100 100mm3mRef. 89663AA 6mRef. 89669AAFD125 125mm3mRef. 89664AA6mRef. 89670AAFD150 150mm3mRef. 89665AA6mRef. 89671AAFD200 200mm3mRef. 89666AA6mRef. 89672AAFD250 250mm3mRef. 89667AA6mRef. 89673AAFD315 315mm3mRef. 89668AA6mRef. 89674AA Tough foil construction on a high strength wire helixՕOver 40 minute fire rating BS 476: Part 20 (1987) New Aluminium Flexible Ducting Xflex ALUDia LengthALU100 100mm 10m Ref. 91435AA ALU125 125mm 10m Ref. 91436AA ALU150 150mm 10m Ref. 91437AA ALU200 200mm 10m Ref. 91438AAALU250 250mm 10m Ref. 91439AA ALU315 315mm 10m Ref. 91440AA...

Open the catalog to page 37
