Xpelair Industrial Controllers

Product catalog summary

Overview: The document outlines the specifications and features of Xpelair's industrial controllers and accessories for ventilation systems, focusing on efficiency, safety, and ease of installation. It covers transformer speed controllers, starters with overload protection, electronic fan controllers, sensors, duty sharing controllers, and various accessories.

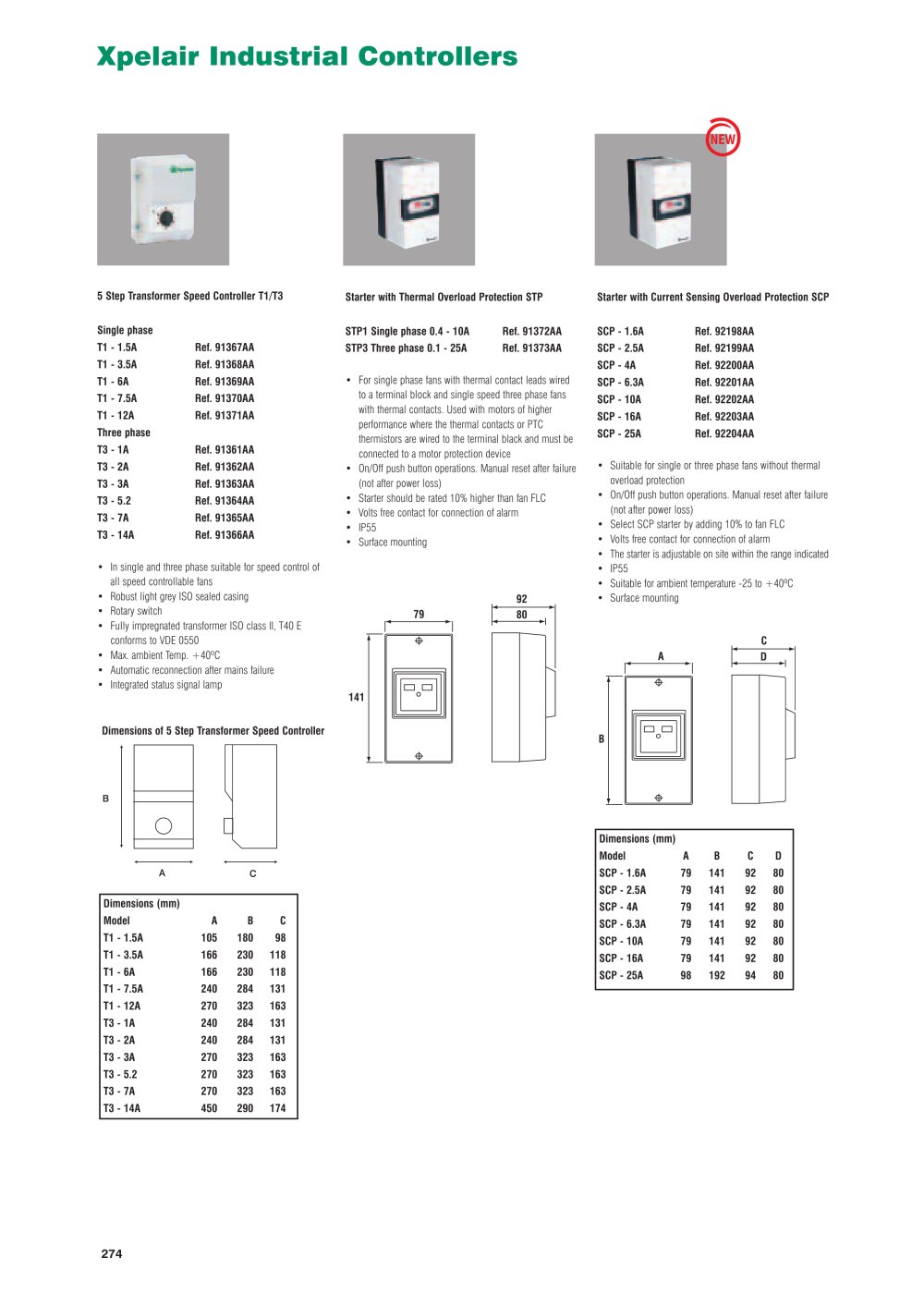

1. Transformer Speed Controllers:

Single Phase (T1): Available in amperages from 1.5A to 12A, these controllers are designed for fan speed control, featuring a robust casing and automatic reconnection after power failure.
Three Phase (T3): Similar to single-phase models, available in amperages from 1A to 14A.

2. Starters with Overload Protection:

Thermal Overload Protection (STP): Suitable for single and three-phase fans, includes manual reset and alarm connection.
Current Sensing Overload Protection (SCP): Adjustable on-site, designed for fans without thermal protection, includes alarm connection.

3. Electronic Fan Controllers:

XCW Series: Offers on/off and variable speed control, with options for surface or recess mounting.
Inline Fan Controller (XIC1): Provides on/off and variable speed control with a slide switch.

4. Sensors and Controllers:

Remote Humidistat (XRH): Activates fans based on humidity, with manual override.
Air Quality Sensor (AQS): Controls ventilation based on air quality, with an adjustable timer.
Time Delay Controller (DT20B): Offers a run-on period for fans after lights are switched off.
Passive Infrared Sensor (XPIRA): Activates fans based on movement detection.

5. Duty Sharing Controllers:

Auto Duty Sharing Controllers: Automatically switch between duty and standby fans, with operational status indicators.

6. Accessories:

Gas Interlock Kit (XSGI): Ensures gas cooking equipment is used only with proper ventilation, complying with safety standards.
External Louvre Grilles and Shutters: Provide weather resistance and airflow control for exterior wall mounting.
Flexible Ducting: Available in various materials and sizes, designed for easy installation and fire safety compliance.
Ceiling Grilles and Diffusers: Available in satin silver or white finishes, with adjustable airflow direction.

Additional Overview: The document also details specifications of industrial ventilation accessories, including diffusers, grille boxes, duct fasteners, silencers, and more, with dimensions and features listed for each product.

1. Diffusers and Dampers:

Four Way Ceiling Diffuser (FWS) models include built-in air volume dampers for sizes up to 315mm.
Grille Boxes (GB) connect ceiling grilles to ductwork, with specified dimensions.

2. Duct Fasteners and Connectors:

Solid Duct Fasteners (XMK) and Flexible Connections (FCC) feature vibration absorbent properties.
Rectangular Flexible Connectors (RFC) reduce vibration in duct systems.

3. Air Valves and Fire Dampers:

Circular Air Valves (CAV) have adjustable center discs, compatible with specific fan models.
Fire Dampers (CAV125FD) for kitchen use, close at 70ºC with a fusible link.

4. Silencers:

Circular Silencers (SIL) and Axial Silencers (XCA, XCP) reduce noise in duct systems, using sound-absorbing materials.

5. Additional Accessories:

Air Replacement Grilles (ARG) and Fire Blocks (FB) maintain airflow and fire safety.
Bag Filter Cassettes (CFC) provide inline filtration with high efficiency.
Inline Duct Heaters (IDH) include thermal cutout safety features for use with rigid ductwork.

6. Mounting and Installation:

Wall Mounting Brackets (WMB) and Anti Vibration Mounts (AVM) ensure secure installation and noise reduction.
Installation packs for Short Case (SCX) and Long Case Axial Fans (LCX) include necessary setup components.
