XP Commercial Ventilation

Product catalog summary

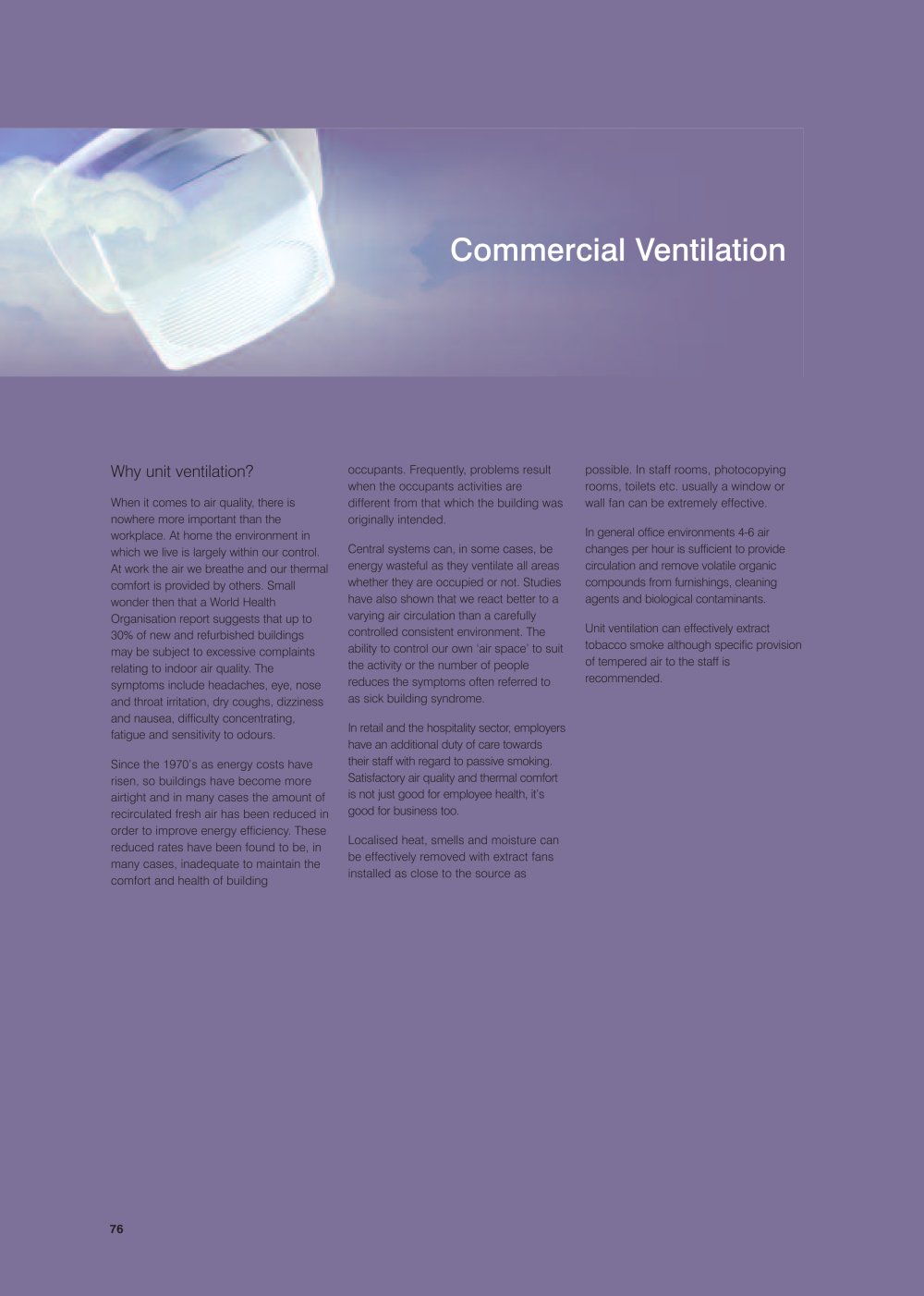

Introduction to Commercial Ventilation
Unit ventilation is essential for maintaining air quality in workplaces, where individuals have less control over their environment compared to their homes. Poor indoor air quality can lead to symptoms such as headaches, irritation, and fatigue, often referred to as sick building syndrome. As buildings have become more airtight since the 1970s to improve energy efficiency, the need for effective ventilation systems has increased.
Importance of Localized Ventilation
Central ventilation systems can be inefficient as they ventilate all areas regardless of occupancy. Localized ventilation, such as extract fans near sources of heat, smells, and moisture, can effectively improve air quality. In office environments, 4-6 air changes per hour are recommended to remove contaminants.
Product Overview: Xpelair GX and PX Series
The Xpelair GX and PX series offer a range of commercial ventilation solutions suitable for various applications including pubs, restaurants, offices, and schools. These units are designed for easy installation and maintenance, featuring high-performance motors and safety features.
GX Series Features
The GX6, GX9, and GX12 models are window fans known for their reliability and ease of installation. They feature reversible motors, maintenance-free bearings, and a silent shutter cassette. The units are designed to blend with modern decor and provide efficient ventilation with low running costs.
PX Series Features
The PX6, PX9, and PX12 models are ceiling and panel mount fans suitable for various commercial settings. They offer flexibility in installation and feature a sleek design with integrated safety features. The PX series is ideal for ducted input systems and provides quiet, efficient operation.
RX Series Features
The RX6, RX9, and RX12 models are roof fans designed for spaces where wall space is limited. They are suitable for installation in glazed and solid roofs and offer weather protection. These units are ideal for high-rise buildings and exposed sites.
Conclusion
Effective ventilation is essential for maintaining a healthy and comfortable workplace environment. The Xpelair GX, PX, and RX series provide versatile and efficient solutions for various commercial applications, ensuring compliance with building regulations and enhancing indoor air quality.
RX Series
  • Models: RX6, RX9, RX12
  • Features: High-performance axial flow ventilation units with options for intake and extract functions. They feature totally enclosed external rotor motors, pre-balanced impellers, and maintenance-free bearings.
  • Specifications: The RX6 is suitable for windows and panels up to 25mm, while RX9 and RX12 offer additional control options and tamper-proof safety plugs.
  • Installation: Includes roof mounting plates and kerb mounting details.
WX Series
  • Models: WX6, WX6T, WX9, WX12
  • Features: Wall fans designed for commercial use with options for extract and intake operations. They include silent electro-thermal shutter cassettes and passive trickle vents for background ventilation.
  • Specifications: WX9 and WX12 models are reversible and feature external rotor motors for constant volume output.
  • Installation: Wall mounting kits are provided, and the models are suitable for various wall types.
WXXL Series
  • Models: WXXL350, WXXL400, WXXL450
  • Features: Designed for larger applications requiring high extract or intake performance. They include electric shutter systems and easy-clean grilles.
  • Specifications: These models offer three-speed control and are suitable for solid and cavity walls.
ChefX Series
  • Models: Tempo, Presto, Mezzo
  • Features: Kitchen canopies designed for professional use with built-in centrifugal fans and washable filters.
  • Specifications: Each model offers different extraction capacities and is suitable for various commercial kitchen applications.
Controllers and Accessories
  • Various controllers are available for different models, offering features like variable speed control and on/off switches.
  • Installation accessories include mounting plates and wall liners.
Fan Controllers
  • Single Direction Group Fan Controller XCC1: Features sliding switches, speed control knob, and is suitable for surface or recess mounting. Compatible with GX9, GX12, WX9, WX12, PX9, PX12, RX9, RX12 fans.
  • Reversible Group Fan Electronic Controller EC6H: Offers extract-intake airflow control, infinitely variable speed, and is compatible with the same fan models as XCC1.
Sensors and Switches
  • Remote Humidistat XRH: Activates fans based on humidity levels, with a pullcord override switch. Compatible with GX6, GX9, GX12, WX6, WX9, WX12, PX6, PX9, PX12, RX6, RX9, RX12 fans.
  • Time Controller DT20B: Connects to lighting circuits to provide ventilation run-on after lights are off, adjustable up to 20 minutes.
  • Air Quality Sensor AQS: Automatically controls ventilation based on air quality, with an adjustable timer and LED status indicator.
Wall Kits and Accessories
  • GX Wall Kits WK: Designed for bridging cavity walls and lining double brick walls, available in various sizes for GX6, GX9, GX12 fans.
  • Darkroom Cowl DC9: Used in scientific and photographic applications, replaces outer grille on GX9 and GXC9 models.
  • Extendible Interlocking Wall Kits WK6: For cavity wall constructions, available in 300mm or 450mm lengths.
Ducting Solutions
  • Flexible Ducting Xflex FD: Made from glass fibre fabric with a PVC coated steel wire helix, available in various diameters and lengths.
  • Thermal Flexible Ducting Xflex TFD: Insulated aluminium duct with fibreglass insulation, available in multiple sizes.
  • Aluminium Flexible Ducting Xflex ALU: Tough foil construction with a high-strength wire helix, offering over 40 minutes of fire rating.
Additional Accessories
  • Worm Drive Clips WDC: Steel clips for connecting ductwork, available in various sizes.
  • Grille Box GB: Used with ceiling grilles and diffusers to connect to ductwork.
  • Egg-crate Ceiling Grilles CG: Available in satin silver or white, used for air replacement in ceilings or walls.
  • Ceiling Diffuser Grilles DG: For air input systems, with adjustable vanes for airflow direction.
  • Air Volume Dampers AVD: Clips to grilles to adjust air volume, made from aluminium.
