THE BARTENDER

Product catalog summary

Use and Activation System: The dispenser operates in two modes: behind the bar (without a wine card) or self-service (with a wine card or barcode reader).

Gas Requirements: Utilizes nitrogen or food-grade argon, with the cylinder or generator not included.

Dosages: Offers up to three different dosages controlled by high-quality mechanical buttons.

Bottles Lifting System: Features a lifting system with pneumatic pistons.

LED Illumination: Equipped with an intelligent RGB LED system for a wide range of color combinations.

Customizations: The machine color can be customized, and the front panel can be silkscreened.

Software Connection: Modules connect to software via LAN wire and Wi-Fi using the TCP/IP protocol.

Safety: The dispenser includes a key lock for security.

Wine Card: Utilizes a chip card system.

Space Requirements: Dimensions are 1001mm (39.44in) in width, 632mm (24.9in) in height, and 351mm (13.83in) in depth. The overall unit depth is specified.

Certifications: Complies with various standards including NSF 25, IEC 60335-1, IEC 60335-2-75, IEC 60335-2-24, UL 751, UL 541, and CSA C22.2 #128.

Electrical Requirements: For the US and Canada, it requires 100-240VAC 50/60Hz, and for Europe and the world, it requires 220VAC 50Hz.

Technical Specifications: The dispenser is made in Italy, with a weight of 64kg (14lbs).

Catalog excerpts

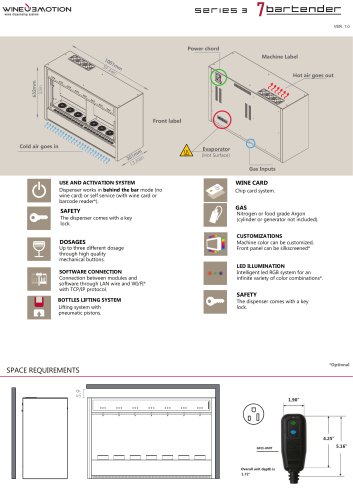

Power chord Machine Label Front label USE AND ACTIVATION SYSTEM Dispenser works in behind the bar mode (no wine card) or self service (with wine card or barcode reader*). The dispenser comes with a key lock. Up to three different dosage through high quality mechanical buttons. SOFTWARE CONNECTION Connection between modules and software through LAN wire and WI/FI* with TCP/IP protocol. BOTTLES LIFTING SYSTEM Lifting system with pneumatic pistons. WINE CARD Chip card system. Nitrogen or food grade Argon (cylinder or generator not included). CUSTOMIZATIONS Machine color can be customized, Front panel can be silkscreened* LED ILLUMINATION Intelligent led RGB system for an infinite variety of color combinations*. The dispenser comes with a key lock. SPACE REQUIREMENTS Overall unit depth is 1.72”

Open the catalog to page 1

MODELS DISPENSER WINE & 3MOTION wine dispensing system
