Product catalog summary
Product Overview
NEST is a non-combustible internal insulation solution designed for performance and comfort. It is easy to cut, screw, nail, and staple, making it user-friendly for various applications. The product dimensions are 1m x 25m, covering an area of 25m², and it weighs 21 kg.

Technical Specifications
- Thermal resistance: 1.55 m².K/W (EN 16012)
- Thermal conductivity: 0.028 W/mK
- Fire rating: A1 (non-combustible)
- Thickness: 6 mm
- Mass density: 830 g/m²
- Sound reduction: -13 dB
- Vapour control layer compliant with EN 13984

Benefits
- High insulation properties with low thickness
- Non-combustible, ensuring safety
- Easy installation and adaptability for attic spaces
- Compatible with various insulation materials
- Provides significant energy savings and maintains indoor comfort

Installation Guidelines
NEST can be installed on supports with a maximum distance of 60 cm. It is attached using flat-head nails, and permanent fastening is achieved through the frame receiving the final support. An air gap must be created on each side of the product, and strips should be unwound horizontally from the bottom.

Applications
NEST is suitable for use as a vapour barrier or thin insulation in both new-build and renovation projects. It can be installed under plaster boards, plastered bricks, wood panelling, or PVC.

Performance and Savings
NEST provides an average energy saving of 35% and improves indoor temperature by 3°C in winter and 7°C in summer. It reduces the need for additional insulation thickness by 46% and increases floor space by 10% compared to traditional solutions.

Customer Support
For technical support or to request a sample, contact Winco-Tech at +33 (0)2 96 78 24 22 or via email at [email protected].
See more

Catalog excerpts

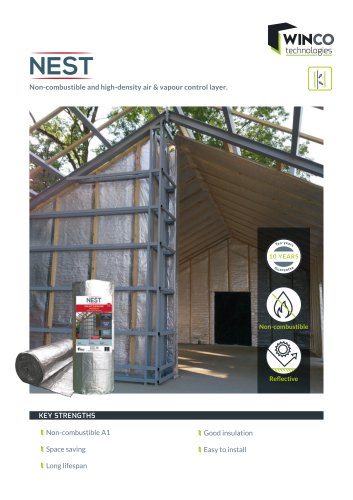

NEST - RECTO-1

1 technologies Innovation for performance and comfort!

 Open the catalog to page 1
NEST - RECTO-2

NEST Vapour control layer INTERNAL INSULATION High-density blanket tested in compliance with EN 16012. Space saving ! Money saving ! 4 Summer / Winter insulation 4 Easy to install 4 Non-combustible REDUCES THE UNDERSIDE INSULATION ADDITIONAL INSULATION THICKNESS (1) 160 mm = R>6 for converted attic space 80 mm = R>3,7 for internal walls 220 mm = R>7 for ceilings in unused attic space (1) Non-combustible Vapour control layer Easy to cut, screw, nail and staple Additional insulation whose thermal conductivity is equal to 0.035 W/mK. Information on indoor air emission levels of volatile substances,...

 Open the catalog to page 2
NEST - RECTO-3

Testimonial Testimonial WALL AND ATTIC INSULATION Benefits 4 NEST 2-in-1 insulation achieves the function of both high-density insulation and reflective vapour barrier. 4 NEST flexibility ensures the continuity of the insulation between the walls and the roof pitches. 4 NEST combines perfectly with all types of insulation by preserving them from moisture. Company : POLO COMMERCE Applied Quantity : 300 m² Why choosing NEST ? «For the renovation of this chalet facing south, summer and winter comfort was essential. The available space for insulation was however limited. I suggested to combine NEST...

 Open the catalog to page 3
NEST - RECTO-4

INDOOR APPLICATION 4 NEST can be used on supports with a maximum distance of 60 cm. 4 NEST is attached with flat-head nails on the support. Permanent fastening is achieved thanks to the frame receiving the final support. 4 To avoid oxidation by electrolytic reaction, avoid direct contact of aluminum with copper, brass and lead. Applications : NEST can be applied as a vapour barrier or a thin insulation for internal insulation works in new-build or renovation projects. NEST insulation can be installed under plaster boards, plastered bricks, wood panelling or PVC. NEST Internal coating support Installation...

 Open the catalog to page 4
NEST - RECTO-5

High insulation properties 4 Winter/ summer comfort 7 °C in summer Average gain of 3 °C in winter and 4 35% average energy savings on thickness 4 - 46% on the additional insulati a traditional 4 +10% of floor space compared to solution 4 Possibility of exposed beams High-density fiberglass blanket Consisted exclusively of mineral materials Vapour barrier compliant with regulatory standards wed 4 Easy installation: can be cut, scre or to stapled W/mK) 4High insulation value (λ: 0.028 ds and people 4 Non-combustible: safety for goo ng properties 4 No compaction: keeps its insulati ivity 4 Pure aluminum:...

 Open the catalog to page 5
NEST - RECTO-6

NEST NEST allows my cutomers to achieve substantial energy savings. Our customers notice a 35% reduction on average of their energy bill from year one. Ideal for renovation projects, NEST prevents moisture from penetrating the insulation by forming a real barrier against water vapour. e NEST thermal resistance can not be combined oduct. with that of another insulation product. T Thanks to NEST, you benefit from a thermal r resistance of 1.55m²K/W. In converted attic n s space, NEST can be coupled with an insulation o 4.45m²K/W to obtain 6m²K/W. of In dealing with insulation thanks to NEST, you...

 Open the catalog to page 6

All WINCO TECHNOLOGIES catalogs and technical brochures

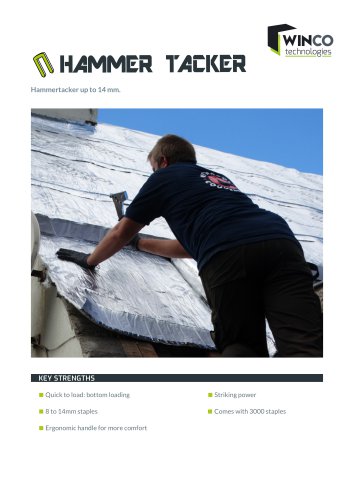

  1. HAMMER TACKER

    2  Pages

  2. NEST

    2  Pages

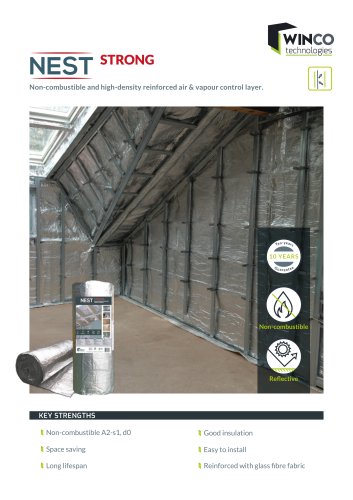

  3. NEST STRONG

    2  Pages

  4. TRIDAT

    2  Pages

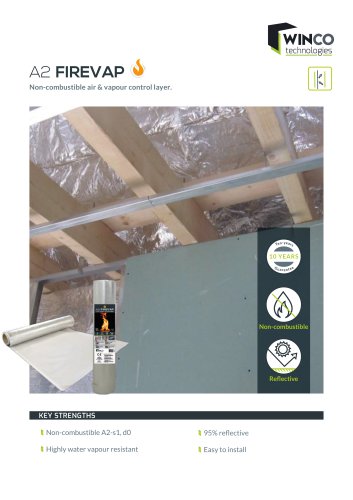

  5. A2 FIREVAP
