WG Advance

Product catalog summary

Introduction
WG Advance® Radiant Glass Heaters are innovative heating solutions designed to optimize energy consumption through the use of thermostats and heating management systems. Manufactured by WarmGlass SRL in Italy, these heaters are made entirely of glass and are available in various sizes and colors.

Technology
The WG Advance® heaters consist of two sheets of laminated glass, with one sheet featuring an electrically stimulated coating. This coating converts electrical energy into heat, emitted as long-wave infrared radiation. The heaters are designed for seamless wall integration, with invisible mounting from the front.

Technical Data

Voltage: 230V 50Hz
Available Sizes and Power:
- 450 x 800 mm / 400W / 9Kg / Heating area up to 8m²
- 650 x 800 mm / 600W / 12.7Kg / Heating area up to 11m²
- 850 x 800 mm / 800W / 16.3Kg / Heating area up to 15m²
- 1050 x 800 mm / 1000W / 19.9Kg / Heating area up to 18m²
Surface Temperature: Up to 70°C
Standard Supply Cable: 1.5m with bipolar plug
International Protection Marking: IP 44 (IP 55 available on request)
Electrical Classification: Class 2
Standard Shape: Rectangular
Standard Colors: Black, White, Mirror

Note: Technical data may vary based on building construction and environment. Custom solutions are available upon request.

Standard Configurations

Internal Glass: 4mm tempered
Laminated Layer: EVA
External Glass: 4mm tempered
Panel + Mounting Brackets Thickness: 39mm
On/Off Switch: Included
Wall Mounting Brackets: Included
Towel-Rail: Optional

Catalog excerpts

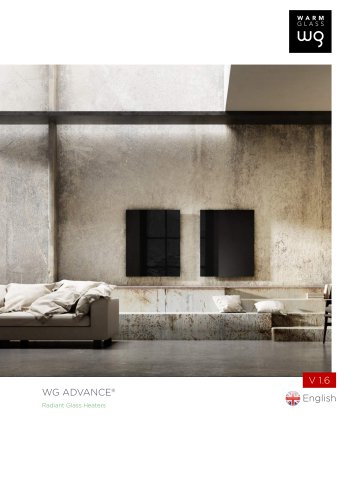

WG ADVANCE® Radiant Glass Heaters

Open the catalog to page 1

WG Advance® is a Heated Glass Radiator, made entirely of glass. It consists of two sheets of laminated glass, one of which is equipped with a coating that can be stimulated electrically. By applying voltage, the glass coating transforms the energy into heat that is emitted in the form of long-wave infrared. The wall fixing is integrated in the back of the panel and completely invisible from the front. WG Advance® is manufactured in four different sizes with three possible colors: black, white and mirror STANDARD CONFIGURATIONS WG ADVANCE Internal glass: WG 4mm tempered Laminated layer: EVA External...

Open the catalog to page 2

All Warm Glass catalogs and technical brochures

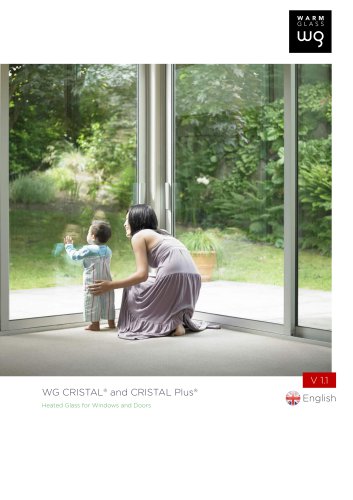

WG Cristal WG Cristal+
4 Pages

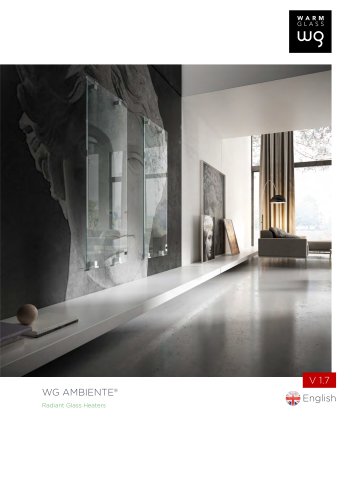

WG Ambiente
