Product Overview:

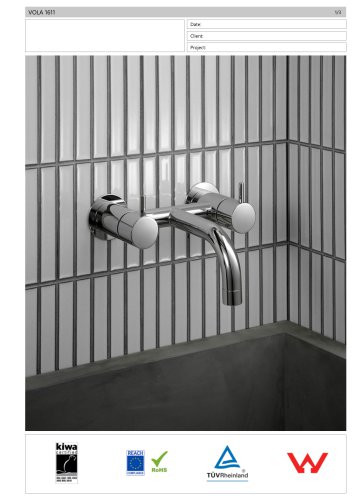

The VOLA 1611 is a two-handle mixer designed for surface mounting on solid walls. It features a ¼ turn ceramic disc technology and includes two 60 mm circular flanges (001G). The mixer projects 170 mm from the wall and has a center distance adjustable between 140 - 160 mm. It connects via ½" eccentric connections.

Flow Specifications:
The flow rates at various bar pressures are as follows:

• 1.0 Bar: 17.3 l/min
• 2.0 Bar: 24.5 l/min
• 3.0 Bar: 30.0 l/min
• 4.0 Bar: 30.0 l/min
• 5.0 Bar: 30.0 l/min

Color Options:
The mixer is available in a wide range of colors, including:

• Grey (Color 02)
• Carmine red (Color 21)
• Light blue (Color 04)
• Pink (Color 25)
• Orange (Color 05)
• Matt black (Color 27)
• Matt white (Color 28)
• Brushed stainless steel (Color 40)
• Black (Color 60)
• Brushed black (Color 61)
• Deep black (Color 62)
• Copper (Color 63)
• Polished chrome (Color 16)
• Brushed Copper (Color 64)
• Gold (Color 65)
• Silver (Color 68)
• Natural brass (Color 19)
• Brushed Gold (Color 70)
• Brushed chrome (Color 20)

Flange Details:
The 60 mm circular flange has a hole diameter of Ø33 mm.
