EN H O M E C O N T R O L DIN GUIDE Roller Blind Control INSTALLATION and OPERATION

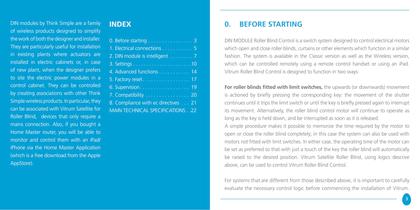

DIN modules by Think Simple are a family of wireless products designed to simplify the work of both the designer and installer. They are particularly useful for installation in existing plants where actuators are installed in electric cabinets or, in case of new plant, when the designer prefers to site the electric power modules in a control cabinet. They can be controlled by creating associations with other Think Simple wireless products. In particular, they can be associated with Vitrum Satellite for Roller Blind, devices that only require a mains connection. Also, if you bought a Home Master...

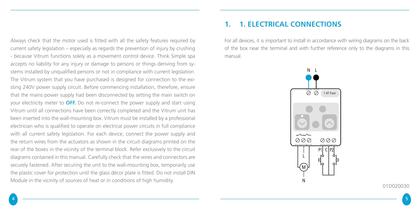

1. 1. ELECTRICAL CONNECTIONS Always check that the motor used is fitted with all the safety features required by current safety legislation – especially as regards the prevention of injury by crushing - because Vitrum functions solely as a movement control device. Think Simple spa accepts no liability for any injury or damage to persons or things deriving from systems installed by unqualified persons or not in compliance with current legislation. The Vitrum system that you have purchased is designed for connection to the existing 240V power supply circuit. Before commencing installation, therefore,...

2. DIN MODULE IS INTELLIGENT The mains must be connected to terminals identified by letters N – L. Connectors identified by symbol __ \__ must be connected to loads. Incorrect connections may give rise to failures or malfunctioning of the dimmer. To control the module using a push-button, use the connections identified by letters P1 and P2. IMPORTANT After connecting, check that the wires are correctly routed inside the cabinet. Think Simple Spa accepts no liability if the device is not correctly installed as described above. The product that you have purchased functions INDEPENDENTLY, but it...

• Press and hold down “INC” until the corresponding LED turns yellow, thenrelease the key. DIN Module indicates that it has been included in the network by flashing the LEDs three times (green). • When all the Vitrum/ DIN Module units have been added to the network, press the “INC” key again until the LED switches off. Now you will see that the illuminated rings around the DIN Module touch keys no longer light red when changing from one status to the next. • Place the HOME MASTER remote handset near the DIN Module unit to be included in the network. Touch any of the keys on DIN Module to include...

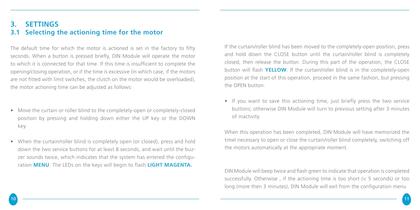

3. SETTINGS 3.1 Selecting the actioning time for the motor The default time for which the motor is actioned is set in the factory to fifty seconds. When a button is pressed briefly, DIN Module will operate the motor to which it is connected for that time. If this time is insufficient to complete the opening/closing operation, or if the time is excessive (in which case, if the motors are not fitted with limit switches, the clutch on the motor would be overloaded), the motor actioning time can be adjusted as follows: • Move the curtain or roller blind to the completely-open or completely-closed...

3.2 Selecting ALL OFF and flash red (double beep): no change will be done on previous configuration. The default time for which the motor is operated could be different between Vitrum Satellite Roller Blind and DIN Module Roller Blind Control. However the effective operating time will be the one set on DIN Module Roller Blind Control. For safety and aesthetical reasons you should set devices in order to have the same operating time so that Vitrum lighting feedback will be the same. NOTA to exit the configuration menu immediately and without any changing, you just need to briefly touch the service...

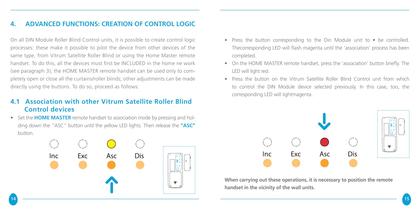

4. ADVANCED FUNCTIONS: creation of control logic On all DIN Module Roller Blind Control units, it is possible to create control logic processes: these make it possible to pilot the device from other devices of the same type, from Vitrum Satellite Roller Blind or using the Home Master remote handset. To do this, all the devices must first be INCLUDED in the home ne work (see paragraph 3); the HOME MASTER remote handset can be used only to completely open or close all the curtains/roller blinds; other adjustments can be made directly using the buttons. To do so, proceed as follows: • Press the...

IMPORTANT Do not associate DIN Module Roller Blind Control to other types of Vitrum devices (Dimmer, On-Off, Satellite). You can do association only between Vitrum/Din Module of same model or With Vitrum Satellite Roller Blind. A touch key on a Vitrum device can be associated with a maximum of other devices as below indicated. So the total number of touch keys that you can control is variable and depend on kind of association you make. For example: associating a touch key to 10 Vitrum I means that you can control up to 10 other touch keys; but associating a touch key to 10 Vitrum IV means that...

6. SUPERVISION (wireless devices only) • DIN Module will flash red three times and sound an acoustic signal to indicate that the original configuration has been restored. B. FACTORY RESET using the reset button • Press the Reset button and hold down for at least 3 seconds. DIN Module will flash RED three times and sound an acoustic signal to indicate that the original factory configuration has been restored. 18 If you have decided to activate the HOME MASTER supervision apps for iPad®, you will find that the “identification” function featured by every Vitrum unit is extremely useful. “Identification”...

7. COMPATIBILITY 8. COMPLIANCE WITH EC DIRECTIVES All Vitrum Wireless devices are tested and certified to Z-Wave specifications and are designed to interact with certified Z-Wave products marketed by other manufacturers. Certified Z-Wave devices of different types or designed for other applications may be added to your home network; if these support the functions, they can also be used as repeaters to communicate with your Vitrum wireless units. In this way, your system can easily be extended to operate with different applications and thus adapted to your specific needs. All Vitrum Wireless units...
