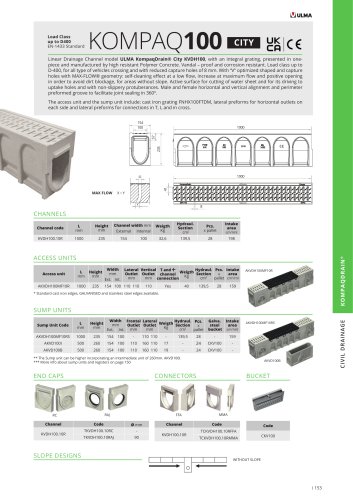

KOMPAQ100 CITY Linear Drainage Channel model ULMA KompaqDrain® City KVDH100, with an integral grating, presented in one-piece and manufactured by high resistant Polymer Concrete. Vandal - proof and corrosion resistant. Load class up to D-400, for all type of vehicles crossing and with reduced capture holes of 8 mm. With "V" optimized shaped and capture holes with MAX-FLOW® geometry: self-cleaning effect at a low flow, increase at maximum flow and positive opening in order to avoid dirt blockage, for areas without slope. Active surface for cutting of water sheet and for its driving to uptake holes and with non-slippery protuberances. Male and female horizontal and vertical alignment and perimeter preformed groove to facilitate joint sealing in 360°. The access unit and the sump unit include: cast iron grating FNHX100FTDM, lateral preforms for horizontal outlets on each side and lateral preforms for connections in T, L and in cross. * Standard cast iron edges, GALVANISED and stainless steel edges available. SUMP UNITS Sump Unit Code ** The Sump unit can be higher incorporating an intermediate unit of 260mm. AKVD100I. *** More info about sump units and registers on page 150 CIVIL DRAINAGE END CAPS SLOPE DESIGNS WITHOUT SLOPE

KOMPAQ150 CITY UK CC CO CIVIL DRAINAGE Linear Drainage Channel model ULMA KompaqDrain® City KVFDH150, with an integral grating, presented in one-piece and manufactured by high resistant Polymer Concrete. Vandal - proof and corrosion resistant. Load class up to D-400, for all type of vehicles crossing and with reduced capture holes of 13 mm. With "V" optimized shaped and capture holes with MAX-FLOW® geometry: self-cleaning effect at a low flow, increase at maximum flow and positive opening in order to avoid dirt blockage, for areas without slope. Active surface for cutting of water sheet and for...

' III>31 fMil Linear Drainage Channel model ULMA KompaqDrain® Civil KVF150, with an integral grating, presented in one-piece and manufactured by high resistant Polymer Concrete. Vandal - proof and corrosion resistant. Load class up to F-900, for heavy loads. With "V" optimized shaped and capture holes with MAX-FLOW® geometry: self-cleaning effect at a low flow, increase at maximum flow and positive opening in order to avoid dirt blockage, for areas without slope. Active surface for cutting of water sheet and for its driving to uptake holes and with non-slippery protuberances. Male and female...

KOMPAQ150 INDUSTRY Linear Drainage Channel model ULMA KompaqDrain® Industry KVE150, with an integral grating, presented in one-piece and manufactured by high resistant Polymer Concrete. Vandal - proof and corrosion resistant. Load class up to E-600 with surface design without protuberances to avoid vibrations in crossing vehicles, 30 x 25 mm uptake holes. With "V" optimized shaped and capture holes with MAX-FLOW® geometry: self-cleaning effect at a low flow, increase at maximum flow and positive opening in order to avoid dirt blockage, for areas without slope. Active surface for cutting of water...

KOMPAQ150 TRAFFIC integral grating, presented in one-corrosion resistant. Load class up holes with MAX-FLOW® geometry: in order to avoid dirt blockage, for uptake holes and with non-slippery preformed groove to facilitate joint Linear Drainage Channel model ULMA KompaqDrain® Traffic KVFD150, with an piece and manufactured by high resistant Polymer Concrete. Vandal - proof and to D-400, for all type of vehicles crossing. With "V" optimized shaped and capture self-cleaning effect at a low flow, increase at maximum flow and positive opening areas without slope. Active surface for cutting of water...

KOMPAQ200 CITY Linear Drainage Channel model ULMA KompaqDrain® City KVFDH200 with an integral grating, presented in one-piece and manufactured by high resistant Polymer Concrete. Vandal - proof and corrosion resistant. Load class up to D-400, for all type of vehicles crossing and with reduced capture holes of 16mm. With "V" optimized shaped and capture holes with MAX-FLOW® geometry: self-cleaning effect at a low flow, increase at maximum flow and positive opening in order to avoid dirt blockage, for areas without slope. Active surface for cutting of water sheet and for its driving to uptake holes...

CLASSIC Cfi UK|C€ Linear Drainage Channel model ULMA KompaqDrain® Classic KVFDC200 with an integral grating, manufactured as a single monolithic piece in high-resistance polymer concrete. Vandal-proof and corrosion resistant. Load class D-400 for all types of vehicular traffic, with 10 mm wide capture openings. Optimised "V"-shaped section and MAX-FLOW® inlet geometry providing a self-cleaning effect at low flow and increased capacity at maximum flow, suitable for areas without longitudinal slope. Top surface with cobblestone-style texture. Male and female horizontal and vertical alignment system,...

KOMPAQ200 CIVIL Linear Drainage Channel model ULMA KompaqDrain® Civil KVF200, with an integral grating, presented in one-piece and manufactured by high resistant Polymer Concrete. Vandal - proof and corrosion resistant. Load class up to F-900 for high loads. With "V" optimized shaped and capture holes with MAX-FLOW® geometry: self-cleaning effect at a low flow, increase at maximum flow and positive opening in order to avoid dirt blockage, for areas without slope. Active surface for cutting of water sheet and for its driving to uptake holes and with non-slippery protuberances. Male and female...

KOMPAQ200 INDUSTRY Linear Drainage Channel model ULMA KompaqDrain® Industry KVE200, with an integral grating, presented in one-piece and manufactured by high resistant Polymer Concrete. Vandal - proof and corrosion resistant. Load class up to E-600 with surface design without protuberances to avoid vibrations in crossing vehicles, 30 x 25 mm uptake holes.With "V" optimized shaped and capture holes with MAX-FLOW® geometry: self-cleaning effect at a low flow, increase at maximum flow and positive opening in order to avoid dirt blockage, for areas without slope. Active surface for cutting of water...
