G100 Mini

Product catalog summary

Introduction
The document introduces the new G100 MINI hydraulic patch kit designed for minimalist interiors. This product is a compact version of the popular G100, offering the same performance with reduced dimensions and increased glazed surface area.

Product Design and Purpose
The G100 MINI is crafted to align with current trends in door and partition designs, featuring compact fittings. It integrates seamlessly with the GT series, providing architects and manufacturers with a cohesive aesthetic.

Technical Specifications

Dimensions: Top - 164.5 × 28.6 × 50.5mm; Bottom - 160 × 32 × 47mm.
Load Capacity: Supports doors up to 60 kg and 850 mm in width.
Closing Control: Two adjustable speeds; 1st speed from 150° to 10°, 2nd speed from 10° to 0°.
Opening and Locking: Maximum opening of 150° with a locking mechanism at ±90°.
Glass Compatibility: Suitable for glass thicknesses from 8 to 13 mm.
Resistance: Certified to UNE-EN 1154, ensuring 500,000 cycles (Grade 8) and Grade 3 corrosion resistance.
Finishes: Available in Bright, Satin, and Black finishes upon request.

Comparison with Other Models
The document includes a comparison table for G100, G100E, and G100 MINI models, highlighting differences in dimensions, maximum door weight, glass thickness compatibility, and other technical parameters.

Installation and Certification
The G100 MINI offers quick and easy installation and is certified for durability and corrosion resistance, making it a reliable choice for interior glass doors.

Catalog excerpts

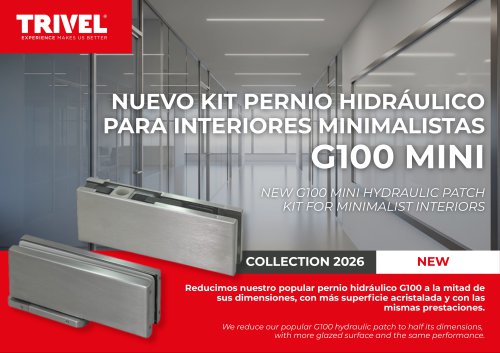

NUEVO KIT PERNIO HIDRÁULICO PARA INTERIORES MINIMALISTAS NEW G100 MINI HYDRAULIC PATCH KIT FOR MINIMALIST INTERIORS Reducimos nuestro popular pernio hidráulico G100 a la mitad de sus dimensiones, con más superficie acristalada y con las mismas prestaciones. We reduce our popular G100 hydraulic patch to half its dimensions, with more glazed surface and the same performance.

Open the catalog to page 1

KIT PERNIO HIDRÁULICO PARA INTERIORES MINIMALISTAS Hydraulic patch kit for minimalist interiors La nueva referencia ha sido diseñada para responder a las nuevas tendencias en puertas y divisiones con herrajes compactos, que TRIVEL ha realizado pensando además en la integración de herrajes minimalistas de la serie GT, para que los arquitectos e industriales tengan una gama con la misma línea estética. The new reference has been designed to answer the new trends in doors and divisions with compact fittings, which TRIVEL has designed with a view to incorporating minimalist fittings from the GT series,...

Open the catalog to page 2

Características técnicas: Technical specifications: Medidas alto | Top measurements: 164,5 × 28,6 × 50,5mm Medidas bajo | Bottom measurements: 160 × 32 × 47mm Capacidad de Carga: Soporta puertas con un peso máximo de hasta 60 kg y un ancho máximo de 850 mm. Load Capacity: Supports doors weighing up to 60 kg and with a maximum width of 850 mm. Control de Cierre: Dispone de un mecanismo con dos velocidades regulables: Closing Control: Features a mechanism with two adjustable speeds: 1ª velocidad: De aproximación, actúa desde los 150° hasta los 10°. | 1st speed: For approaching; operates from 150°...

Open the catalog to page 3
