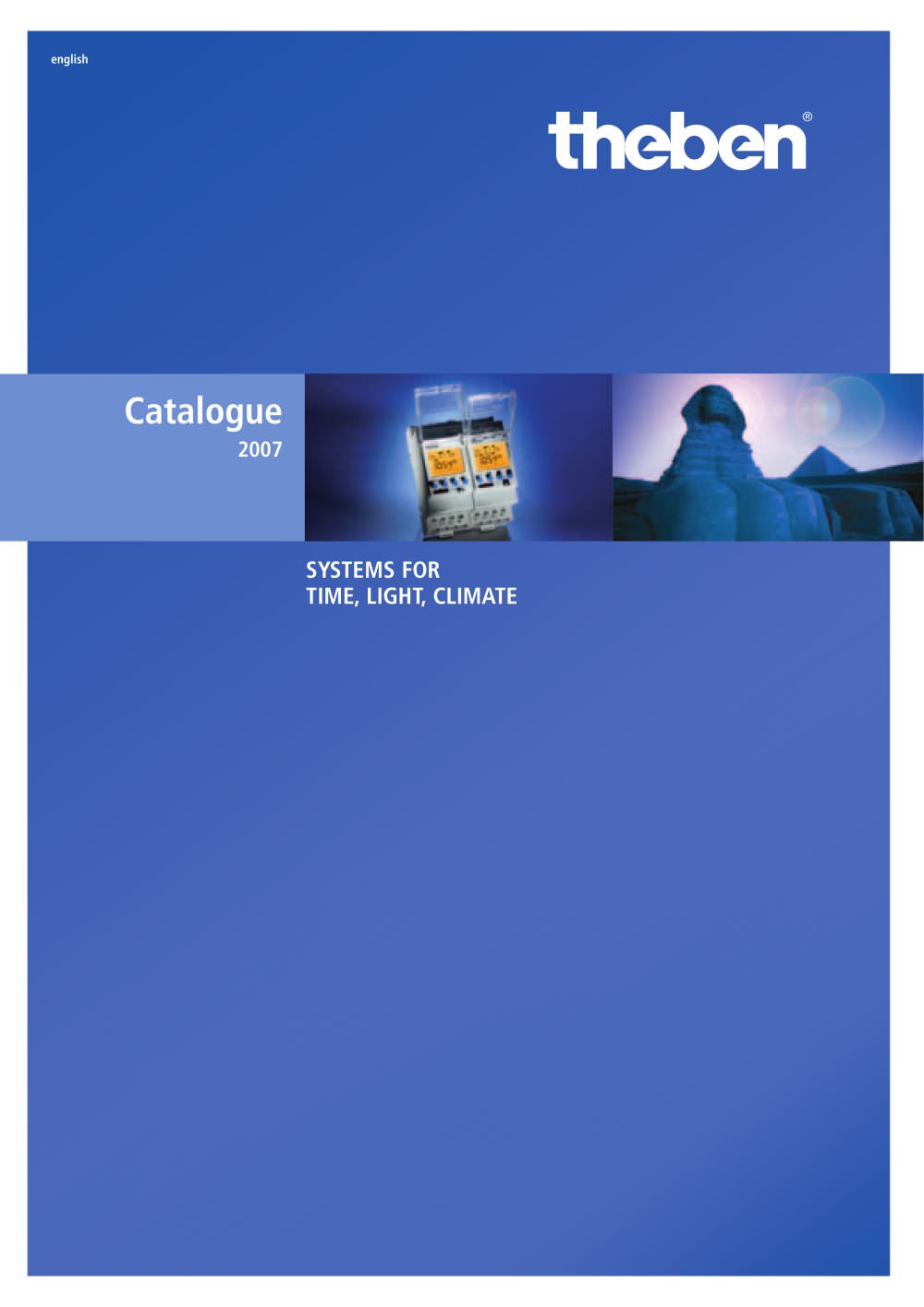

The Theben 2007 catalogue offers a comprehensive range of products specializing in time, lighting, and climate control systems. The company emphasizes high-quality, user-friendly, and innovative solutions.
Theben is an independent, internationally recognized company focused on innovation and quality, providing tailored solutions and maintaining high standards of product quality and customer service.
The catalogue includes various product categories such as analog and digital time switches, stairway-light time switches, twilight and astronomic time switches, presence detectors, thermostats, climate control systems, and EIB/KNX systems.
Detailed technical specifications are provided for each product, including rated voltage, frequency, device consumption, contact material, switching capacity, accuracy, operating temperature range, and protection class.
Theben offers extensive customer support through a dealership network, technical assistance, an online resource center, training sessions, and participation in trade fairs.
The Theben 2007 catalogue highlights the company's dedication to providing specialized, high-quality solutions for time, lighting, and climate control, maintaining a focus on innovation and customer satisfaction.
Synchronous time switches are driven by a synchronous motor with a mains frequency of 50 Hz, featuring a standard housing and shock protection. They offer day or week programming, manual override, and summer/winter time adjustments.
Devices feature a front frame and can be mounted on a switch panel or DIN rail, with a transparent cover for protection.
Time switches offer programming for day or week schedules, permanent ON/OFF switch, and switching status indication.
Nominal voltage is 230 V~ with a device consumption of max. 2.5 VA. The housing is made of high-temperature, fireproof thermoplastics, and the protection class is II according to EN 60730-1.
Driven by a quartz-controlled stepping motor, offering high accuracy and a power reserve.
Features a 24-hour program with memory locations, a power reserve, and precise switching.
High accuracy, zero cross switching, plug-in spring terminals, and PC software for programming.
Operating temperature range, enclosure material, protection class, degree of protection, weight, nominal voltage, frequency, device consumption, contact material, switching power, lamp load, time basis, accuracy, shortest switching interval, power reserve, and ambient temperature are detailed.
Operator guidance, week program, automatic summer/winter time changeover, PIN code protection, and external control input are included.
Standardized housing, quick fastening, contact protection, and control panel installation options are provided.
High accuracy, zero cross switching, plug-in spring terminals, and PC software for programming.
Power reserve, ambient temperature, material, protection class, degree of protection, weight, design, and installation details are provided.
Features channels, memory locations, switching times, pulse program, blocking, prolonged switching, delayed switch-on, and one-time switching.
Features channels, power reserve, programming, functions, and synchronization.
OBELISK program kit for PC programming, graphical display, integrated calendar, and random program activation.
Nominal voltage, frequency, power consumption, contact material, switching capacity, display, and operating elements are detailed.
Front plate kit, DCF77 aerial, and OBELISK memory card are available.
The document provides specifications and functionalities of electronic time switches and relays for controlling lighting, ventilation, heating, and other automated systems.
Features models with memory locations, power reserve, programming capabilities, and automatic time adjustment.
Features multifunction relays with precise time settings and various operations.
Features electronic switches with adjustable switching durations and multifunction capabilities.
Nominal voltage, frequency, switching capacities, protection classes, and degrees of protection are specified.
Devices are designed for easy installation with various mounting options and tamper-proof covers.
The document provides specifications and installation guidelines for LUNA twilight switches and light sensors for controlling lighting systems based on ambient light levels.
Protection ratings, voltage, frequency, switching power, and temperature range are detailed.
Features various LUNA models with brightness adjustment, switching delays, and programmable features.
Wall or mast mounting options and terminal covers are available.
Proper installation, brightness settings, and digital programming features are emphasized.
The document provides specifications and functionalities of lighting control devices, including the LUNA, SELEKTA, and SPHINX series.
Features adjustable brightness settings, night-time switch-off programming, and digital adjustment capabilities.
Features solar weekly clock with sunrise/sunset calculations and energy-saving night switch-off.
Features 360° presence detection with adjustable settings and master/slave operation capabilities.
Switching power, protection, and programming interfaces are highlighted.
The document provides specifications and functionalities of SPHINX series presence detectors and related products.
Features automatic light and HVAC control based on presence and brightness with adjustable settings.
Features automatic switching of electrical appliances with programming options.
Features devices for personal protection and child safety locks.
Features personal protection connectors and surge protection intermediate connectors.
Features analog and digital runtime meters with various mounting options.
Features thermostats with time switch and thermostat functions for heating systems.
Features digital timer thermostat with energy-saving room temperature control.
The document provides specifications and functionalities of RAMSES series digital clock thermostats for energy-efficient temperature control.
Models, temperature control range, power supply options, protection class, and contact rating are detailed.
Features digital timer thermostat with programming, battery monitoring, and energy-saving modes.
Flush or wall mounting options and connection types are available.
Features multiple control types, manual override options, and runtime meter.
Suitable for residential and commercial settings, including holiday homes and offices.
The document provides specifications and functionalities of digital clock thermostats for underfloor and radiator heating systems.
Operating voltage, temperature range, control accuracy, protection class, and switching capacity are detailed.
Features programmable weekly schedules, radio-controlled communication, and battery-powered options.
Suitable for electric underfloor heating systems and individual room control setups.
Includes temperature sensor and optional UHF rod antenna for improved reception.
The document provides specifications and functionalities of RAMSES digital heating controllers and thermostats.
Features models with power supply, temperature range, connection, and holiday program.
Operating voltage, switch load capacity, protection class, and temperature sensors are detailed.
Features additional sensors and accessories for remote control and temperature measurement.
Features automatic summer/winter time switchover and remote temperature setting.
The document provides specifications and functionalities of RAMSES room thermostats and actuators for heating and cooling systems.
Operating voltage, temperature range, switching differential, protection class, and housing color are detailed.
Features changeover contacts, NC contacts, temperature reduction, control lamps, and selector switches.
Designed for flush and wall mounting, compatible with various switch manufacturers.
Features ALPHA 4 actuators and valve adapters for radiators and heating circuits.
Suitable for individual room control in residential and commercial settings.
Features SOTHIS adapter plate, AMUN USB CO2 sensor, FRI 77 time switches, and LUXOR system.
Installation and operation procedures for CO2 sensor, time switches, and LUXOR system are detailed.
Features CO2 sensor recommendations and protection classes as per EN standards.
Features CO2 monitoring and energy efficiency recommendations.
Features CO2 concentration levels, time switch settings, and LUXOR system outputs.
The document provides specifications and functionalities of the LUXOR system for controlling shutters, awnings, and Venetian blinds.
Features LUXOR modules and sensor modules for automatic control based on environmental conditions.
Operating voltage, protection class, and environmental conditions are detailed.
Features starter sets for different residential setups with LUXOR modules.
Features DIN rail mounting and flexible connectivity options.
Features programmable logic controllers for advanced automation and control.
The document provides specifications and functionalities of PHARAO and PHARAO-II programmable logic controllers.
Features models with digital inputs, relay outputs, and operating voltage.
Features models with digital inputs, relay outputs, and operating voltage.
Features LCD display, real-time clock, protection rating, and programming software.
Features upgrade modules, power supply units, and communication cables.
Operating and storage temperature range, and weight are detailed.
Suitable for commercial and industrial settings with flexibility in programming and integration.
The document provides specifications and features of EIB/KNX compatible devices for building automation systems.
Features technical specifications, features, and advantages of dimming actuators.
Features technical specifications, features, and advantages of binary input modules.
Features technical specifications, features, and advantages of heating actuators.
Features technical specifications, features, and advantages of blind/switching actuators.
Features technical specifications, features, and advantages of DC blind actuators.
Features technical specifications, features, and advantages of extended heating actuators.
The document provides specifications and features of EIB/KNX extension units, heating actuators, thermostats, and time transmitters.
Features EIB/KNX extension units for switching channels and window contacts.
Features heating actuators for controlling thermic actuating drives in radiant floor heating systems.
Features technical data for heating actuators, including operating voltage and power consumption.
Features RAM 713 EIB/KNX thermostat for single-room temperature control.
Features ZS 600 DCF EIB/KNX time transmitter for synchronizing time and date.
Features application possibilities for time switch programming.
The document provides comprehensive information on EIB/KNX components for building automation, focusing on heating control and time management.
Features BCU, master/slave functionality, manual settings, and large detection range.
Features 2-channel presence detector with lighting and presence control.
Features 1-channel presence detector with constant light control.
Features large detection range, BCU inclusion, and rotating lens.
Features supply voltage, device consumption, mounting height, detection range, ambient temperature, and protection class.
Features recommended brightness settings for various environments.
Features various models with impact-resistant housing and power reserve.
Features RS 232 and USB interfaces for EIB/KNX system programming.
Features power supplies with short-circuit protection and mains failure ride-through.
Features technical specifications for electronic devices, including power supplies and timer modules.
Features installation and connection procedures for different devices.
Features compliance with standards and recommendations for optimal device performance.
Features switching pre-selection, memory locations, and control options.
Features multiple device variants with specific features.
