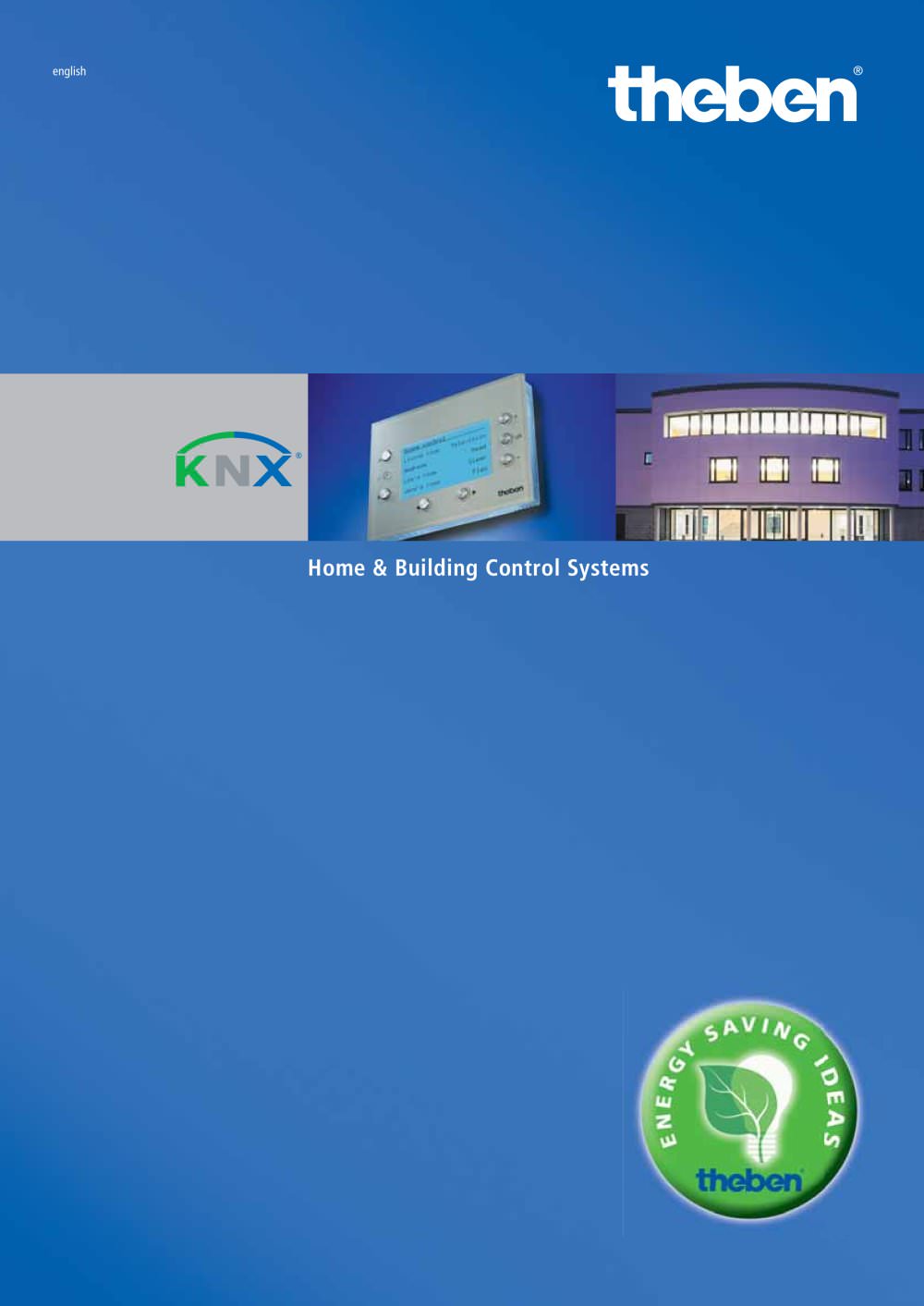

english Home & Building Control Systems Catalogue_KNX_GB_9900605_2011_05.indb 1 10.05.11 08:29

SYSTEMS KNX Chapter summary Description Type Page Actuators Actuators C load 4–12 channels MIX 2 RMG 4 I KNX/RME 4 I KNX 6 Actuators 8–24 channels MIX 2 RMG 8 S KNX/RME 8 S KNX 7 Actuators C load 4–12 channels MIX 1 RMG 4 C-Load KNX/RME 4 C-Load KNX 12 Actuators 4–12 channels MIX 1 RMG 4 S KNX/RME 4 S KNX 13 Switch or blind actuators 4–16 channels RMG 8 KNX/RME 8 KNX 14 Control units 2–6 channels MIX 1 SMG 2 S KNX/SME 2 S KNX 15 Universal dimming actuators 2–6 channels MIX 1 DMG 2 S KNX/ DME 2 S KNX/DMB 2 S KNX 16 Blind actuators 4–12 channels MIX 1 JMG 4 S KNX/JME 4 S KNX 18 Blind actuators...

-SERIES Actuators KNX SYSTEMS Modular switch actuators also for C-load with current monitoring 4 Catalogue_KNX_GB_9900605_2011_05.indb 4 10.05.11 08:29

MIX actuators with low-cost channel price MIX your functions the way you want, now with even more options including extensions up to 24 channels. The new MIX 2 series offers C-Load and Current Monitoring with a new practical and time saving copy function to additional channels. The BCU is removable; configuration can be done at your desk so installation and start up of the actuator can take place when you want. Testing can be executed independently from the bus as well thanks to the manual switch. MIX 2 SERIES 8 channel actuator RMG 8 S with basic and extension devices RME 8 S Modular upgrade...

Switch actuators SYSTEMS RMG 4 I KNX KNX Actuators C load 4–12 channels MIX 2 RMG 4 I KNX RME 4 I KNX Description Common functions ■ ■ ■ ■ ■ ■ ■ 4-way C load switching actuator MIX 2 With current recognition For higher lamp loads Up to two extension modules MIX 1 or MIX 2 can be connected to one basic module Device and KNX bus module can be swapped independently of each other Removable KNX bus module enables devices to be changed without repro-gramming ■ ■ ■ ■ Manual set-up and use of switching actuators is possible without KNX bus module LED switching status display for each channel Manual operation...

KNX SYSTEMS RMG 8 S KNX Switching actuators Switching actuators 8–24 channels MIX2 RMG 8 S KNX RME 8 S KNX Description Common functions ■ ■ ■ ■ ■ ■ 8-way switching actuator MIX2 Up to two extension modules MIX or MIX2 can be connected to one basic module Device and KNX bus module can be swapped independently of each other Removable KNX bus module enables devices to be changed without reprogramming Manual set-up and use of switching actuators is possible without KNX bus module ■ ■ ■ ■ LED switching status display for each channel Manual operation on device (even without bus connection) Adjustable...

-SERIES Switch actuators KNX SYSTEMS More flexibility through -ability Basic modules + 2 Extension modules 8 Catalogue_KNX_GB_9900605_2011_05.indb 8 10.05.11 08:31

The MIX series is a group of modular DIN rail mounted devices comprising of a base modules with optional add on extension modules. Up to two extension modules can be connected in series to the base module. The base module is the only part connected to the KNX bus. These extension modules can be used -ability gives you extremely high to achieve low channel price. Benefit: This flexibility and low system costs. MIX EXTENSIONS MIX series actuators are extendable with a maximum of two extension modules which connect side by side. MIX COMBINATION MIX basic modules can be combined with all MIX extension...

-SERIES Extension options for the KNX series SYSTEMS 24 x switch RMG 8 S KNX + RME 8 S KNX + RME 8 S KNX 12 x C-load with current monitoring RMG 4 I KNX + RME 4 I KNX + RME 4 I KNX 6 x dim DMG 2 S KNX + DME 2 S KNX + DME 2 S KNX 6 x 1–10 V interface SMG 2 S KNX + SME 2 S KNX + SME 2 S KNX 18 x binary input BMG 6 KNX + BME 6 KNX + BME 6 KNX 12 x heating HMG 4 KNX + HME 4 KNX + HME 4 KNX 12 x blinds JMG 4 S KNX + JME 4 S KNX + JME 4 S KNX 10 Catalogue_KNX_GB_9900605_2011_05.indb 10 10.05.11 08:31

SYSTEMS Combination examples of the series KNX -SERIES -SERIE 8 x switch + 4 x switch with current monitoring + 2 x dim RMG 8 S KNX + RME 4 I KNX + DME 2 S KNX 8 x switch + 4 x C-load RMG 4 S KNX + RME 4 S KNX + RME 4 C-Last KNX 6 x binary input + 4 x switch + 2 x dim BMG 6 KNX + RME 4 S KNX + DME 2 S KNX 2 x 1–10 V interface + 6 x binary input + 4 x switch SMG 2 S KNX + BME 6 KNX + RME 4 S KNX 4 x heating + 6 x binary input + 4 x switch HMG 4 KNX + BME 6 KNX + RME 4 S KNX 4 x blind + 4 x switch + 4 x C-load JMG 4 S KNX + RME 4 S KNX + RME 4 C-Last 4 x switch + 2 x dim + 6 x binary input JMG...

KNX SYSTEMS RMG 4 C-Last KNX Switching actuators Switching actuators C-load 4–12 channels MIX RMG 4 C-Load KNX RME 4 C-Load KNX Description Common functions ■ ■ ■ ■ ■ ■ 4-way C load switching actuator MIX For higher lamp loads Up to 2 extension modules can be connected to a basic module Can be combined with all MIX series devices Free combination of switches, dimming, blinds and heating control as well as binary inputs ■ ■ ■ ■ LED switching status display for each channel Manual switch with On/Off/Bus settings (also without bus voltage) Adjustable characteristics: e.g. switching, delayed switching,...

KNX SYSTEMS RMG 4 S KNX Switching actuators Switching actuators 4–12 channels MIX RMG 4 S KNX RME 4 S KNX Description Common functions ■ ■ ■ ■ ■ 4-way switching actuator MIX Up to 2 extension modules can be connected to a basic module Can be combined with all MIX series devices Free combination of switches, dimming, blinds and heating control as well as binary inputs ■ ■ ■ ■ LED switching status display for each channel Manual switch with On/Off/Bus settings (also without bus voltage) Adjustable characteristics: e.g. switching, delayed switching, pulse function Switching functions: e.g. On/Off,...

KNX SYSTEMS RMG 8 KNX Switching actuators Switch or blind actuators 4–16 channels RMG 8 KNX RME 8 KNX Description Common functions ■ ■ ■ ■ ■ 4- way blind or 8-way switching actuator Flexible channel function selection: As switching actuator or for controlling drives for blinds, shutters, sun and vision protection devices, skylights and ventilation aps Manual operation on device LED switching status display on device ■ ■ ■ Manual switch for Up / Down or for Switching On / Off (also without bus voltage) Optimised repetition accuracy of programmed lamella positions Slip correction when moving from...
