Overview

This document presents comprehensive technical specifications and product information for a broad range of ceiling-mounted lighting fixtures and accessories. It covers multiple product lines, lamp types, electrical and mechanical characteristics, installation details, finishes, and accessory options.

1. Product Categories and Models

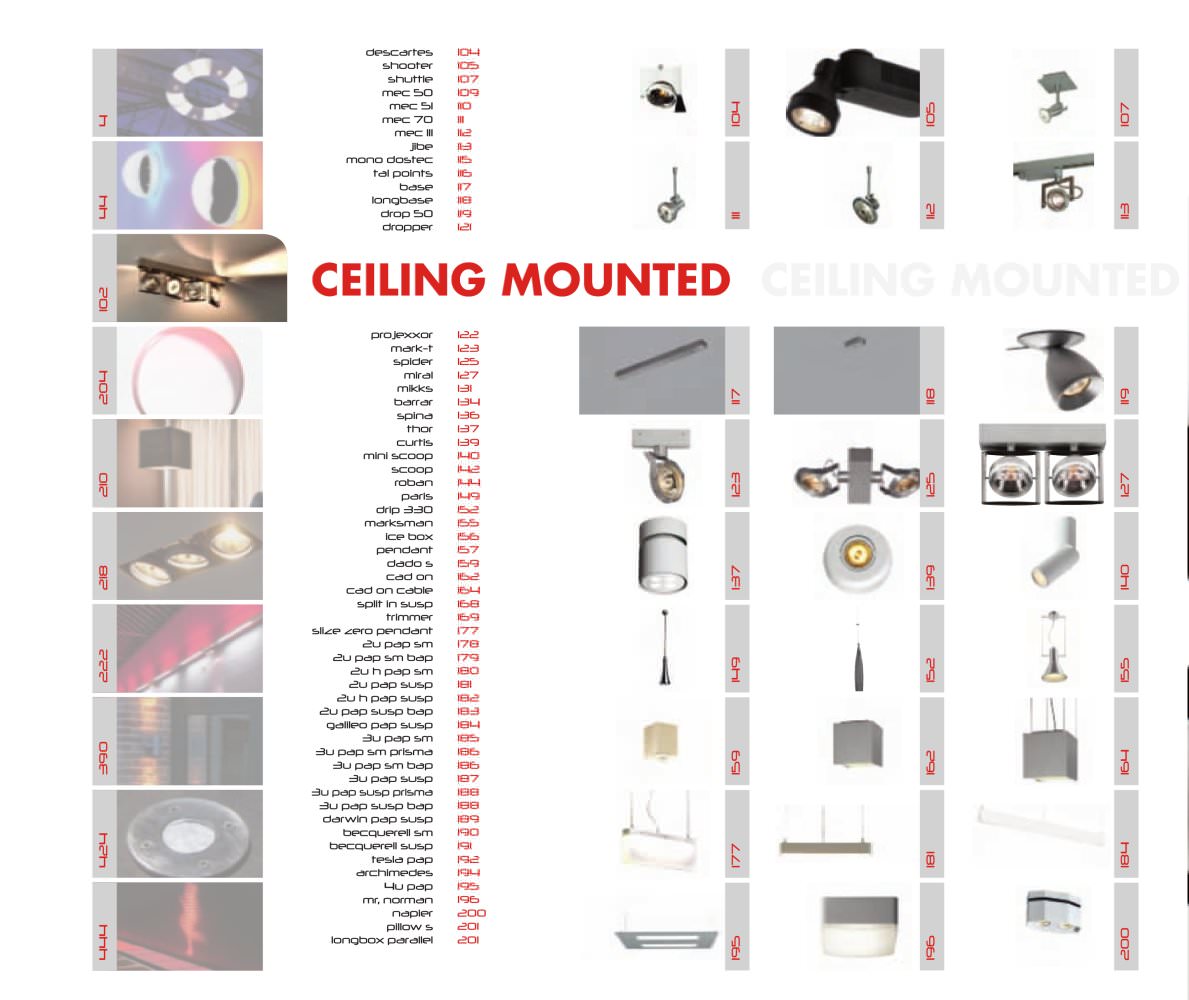

• Ceiling Mounted Fixtures: Includes models such as Descartes, Shooter, Shuttle, Mec, Jibe, Monodos, Talpoints, Base, Long Base, Drop, Dropper, Projexxor, Mark-T, Spider, Miral, Mira, MIKKS, Barrar, Spin, Thor, Curtis, Miniscoop, Dados, Cadon, Paris, Drip, and others.
• Accessories: Filters (glass matt, UV, color filters), reflectors with specific beam angles, honeycomb grids for glare control, adapters, suspension sets, and wall supports.

2. Electrical Specifications and Lamp Types

• Voltage and Frequency: Primarily 230V at 50Hz, with some 12V variants.
• Lamp Bases: G53, GX5.3, GU10, Ba15d, GY6.35, PGJ5, E27, G12, GX8.5, 2G11, 2GX13, G24q, GX24q, RX7s, and others.
• Power Ratings: Lamps range from low wattage LED modules (1W) up to 150W for halogen/incandescent types.
• Dimming Capability: Most models support dimming, with specifications indicating compatibility with leading-edge (LC), trailing-edge (L,C), or 1-10V dimmers. Dimming compatibility varies by lamp type and model.

3. Optical and Mechanical Characteristics

• Beam Angles: Wide range including 15°, 24°, 30°, 35°, 40°, 45°, 50°, 70°, 90°, 110°, and adjustable angles up to 359° rotation and 90° tilt for directional flexibility.
• Rotation and Tilt: Many fixtures offer near full 360° rotation (355°-359°) and tilt angles up to 90°, enabling precise light positioning.
• Ingress Protection: Uniform IP20 rating across all products, suitable for indoor dry environments; no water protection.
• Dimensions and Weight: Dimensions vary widely by model, with diameters from approximately 110 mm to 555 mm, heights from 20 mm to 350 mm, and weights ranging from 0.1 kg to over 10 kg depending on configuration.

4. Materials and Finishes

• Finishes include brushed aluminum, textured white, black, black + gold, white + chrome, stainless steel, leather + gold, leather + anodized, frosted PC, and chrome.
• Accessories and adapters are available in matching finishes to ensure aesthetic consistency.

5. Installation and System Compatibility

• Fixtures are primarily ceiling-mounted, with some pendant and surface-mounted options.
• M10 mounting on profile systems is common, supporting modular installation and integration with JACK SYSTEMS and PROFILE SYSTEMS.
• Installation heights and mechanical dimensions are specified per model to ensure proper fit and optimal light distribution.

6. Accessories and Filters

• Available accessories include glass matt filters, UV filters, color filters (red, green, blue, yellow, opal white), honeycomb grids for glare control, and reflectors with beam angles of 15° and 50°.
• Adapters support various lamp types and wattages, available in multiple finishes.

7. Summary of Key Parameters

8. Additional Product Families and Models

• Mira and MIKKS Series: Use QR-LP111 lamps (G53 base), 230V or 12V, dimmable, beam angle ~110°, tilt 30°, finishes include brushed aluminum and white + chrome, available in multi-lamp configurations.
• Barrar Series: QT-LP12 lamps (GY6.35 base), 75W, 230V, dimmable, beam angle 24°, tilt 30°, finishes include white + chrome, black & gold, textured white.
• Spin and Thor Series: Spin uses QR-C51 Alu Refl lamps (GX5.3 base), 20-50W, dimmable; Thor offers narrow and wide versions with color temperature options and finishes like white, black, chrome.
• Curtis and Miniscoop Series: Curtis uses QR-C51 Alu Refl lamps; Miniscoop includes POWERLED lamps (1W to 6W), GU10 base, dimmable.
• Dados and Cadon Series: Dados uses QR-LP111 and HI PAR111 lamps; Cadon includes fluorescent lamps (TC-DEL, TC-TEL) and incandescent A60 lamps.
• Paris and Drip Series: Paris uses QPAR80 lamps (E27 base), 75W, dimmable; Drip uses QR-C51 Alu Refl lamps, available in multiple finishes.

9. Installation and Physical Dimensions

• Dimensions vary widely: diameters from ~110 mm to 555 mm, heights from 20 mm to 350 mm.
• Installation depths typically around 20 mm for recessed fixtures.
• Weights range from 0.1 kg to over 10 kg depending on model and configuration.
• All fixtures designed for ceiling mounting; some pendant and surface-mounted options exist.

10. Standards and Compliance

• All products carry CE marking, confirming compliance with European safety and performance standards.
• IP20 rating indicates suitability for indoor dry environments only.

11. Recommendations and Notes

• Verify dimmer compatibility (leading-edge, trailing-edge, 1-10V) for dimmable models to ensure optimal performance.
• Respect specified installation heights and mechanical dimensions for correct mounting and light distribution.
• Use appropriate accessories and filters to achieve desired lighting effects and color rendering.
• M10 mounting and profile system compatibility provide modular installation flexibility.
• Color temperature and CRI values are provided for LED models to enhance lighting quality.
• Tailor-made versions and profile system customizations are available beyond standard configurations.

Conclusion

This document serves as a detailed technical reference for a wide range of ceiling-mounted and pendant lighting fixtures. It provides essential data on electrical and mechanical specifications, lamp types, dimmability, beam angles, finishes, mounting options, and accessories. The consistent IP20 rating indicates indoor use suitability. The catalog supports informed selection, installation, and customization of lighting solutions for architectural and commercial applications.
