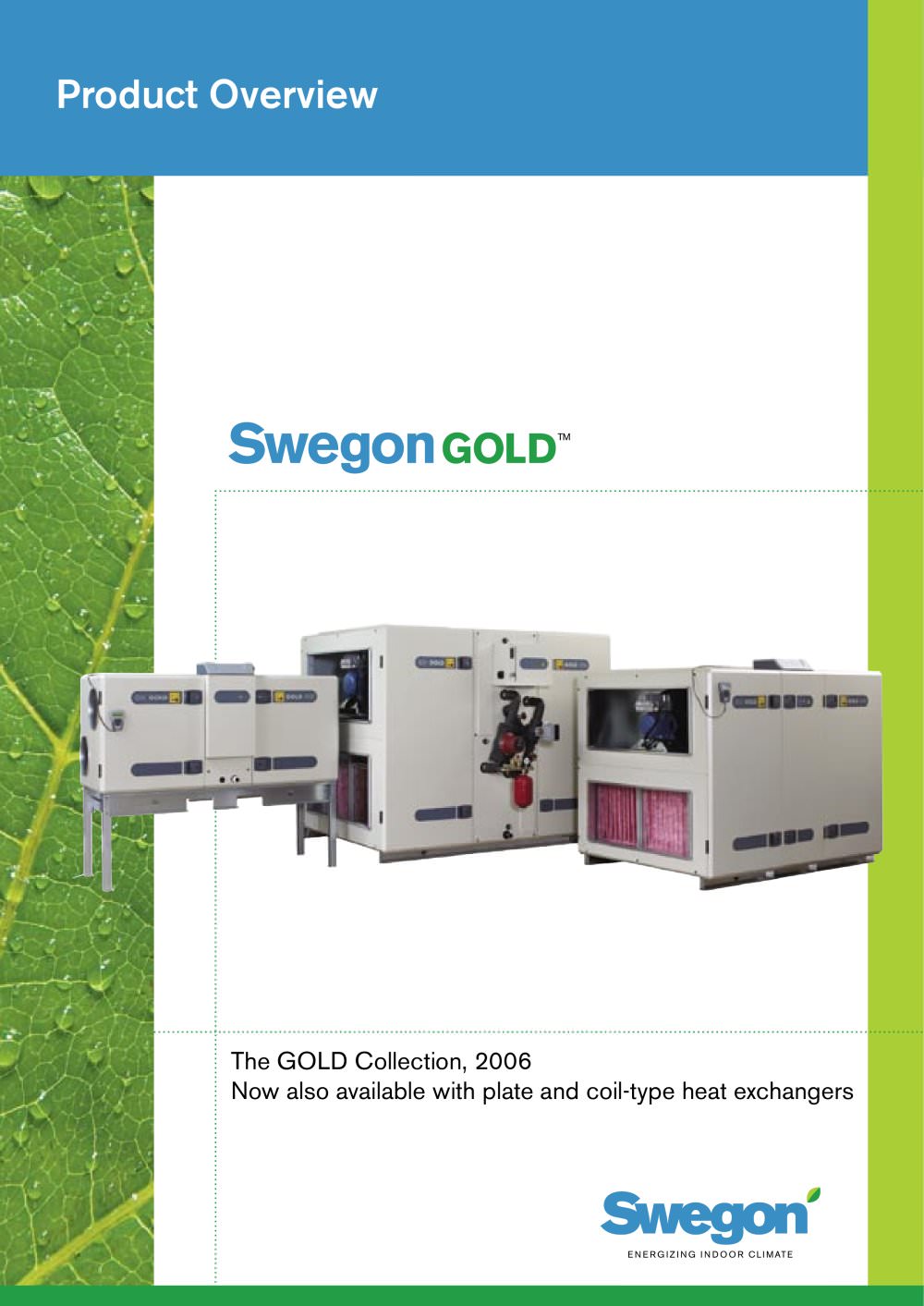

Product Overview
The GOLD Collection by Swegon features advanced air handling units with options for plate, coil, and rotary heat exchangers. These units are designed for easy installation, operation, and maintenance, making them suitable for installation contractors, consultants, buyers/users, and architects.

Installation and Operation
Installation contractors will appreciate the modular connectors and clearly marked terminal blocks, facilitating easy installation. The units can be divided for transport through narrow paths. Consultants benefit from the ease of positioning and connecting the units to ducting systems, with integrated control and supervisory systems.

Features for Buyers/Users
The GOLD units offer exceptional operating economy and flexibility, with competitive life cycle costs. They can integrate with most communication systems, allowing performance supervision via any computer in a building's network.

Architectural Considerations
Architects will value the compact design and low noise levels, allowing flexible placement within buildings. The units can also be installed outdoors with appropriate accessories.

Energy Efficiency and Control
The GOLD units feature optimized motors and frequency inverters for energy efficiency, compact design, and low noise levels. The IQnomic control system integrates all functions, reducing costs associated with conventional control components.

Cooling Systems
The COOLER and CoolDX systems provide comfort cooling for GOLD units. The COOLER uses an indirect system with water coils, while the CoolDX operates on direct expansion. Both systems are integrated with the GOLD's control functions.

Technical Specifications
The GOLD units are certified to ISO 9001 and ISO 14001 standards and are designed for comfort ventilation in various building types. They can be installed outdoors with additional accessories.

Quick Sizing Guide
Charts and values are provided for general use, with precise calculations available through the ProUnit selection program on Swegon's website.

Component Overview
The document details specifications and descriptions of components and accessories for the GOLD air handling units, focusing on different models and sizes.

Silencers
For GOLD 04/05 and 08, circular silencers with rockwool and Eurolon lining are used. Larger models use rectangular silencers with Cleanolon material.

Air Heaters
The TBLA air heater for hot water features copper tubes and aluminum fins, with a valve set and anti-frost protection for certain sizes. The TBLE electric air heater offers multiple output variants with IP43 protection and built-in overheating protections.

Air Coolers
The TBKA and TBKC air coolers consist of copper tubes and aluminum fins, suitable for chilled water or direct expansion systems.

Dual Coil Sections
The TBEK and TBLK dual coil sections combine air heaters and coolers in a common insulated casing for specific GOLD sizes.

Recirculation Section
The TBBR recirculation section is available for larger GOLD units, featuring a motor-driven damper for nighttime heating using recirculated air.

Hoods and Outdoor Installation
Various hoods are described for outdoor air intake and exhaust, with specific materials and coatings for durability.

Mechanical Equipment and Accessories
Includes stands, support feet, rubber tiles, and slip clamps for installation. Communication units and sensors for various functions are detailed, along with fire and smoke protection components.

Electrical and Control Equipment
Describes communication capabilities, including TCP/IP and other protocols, as well as additional control equipment like timers, pushbuttons, and extension cables.
