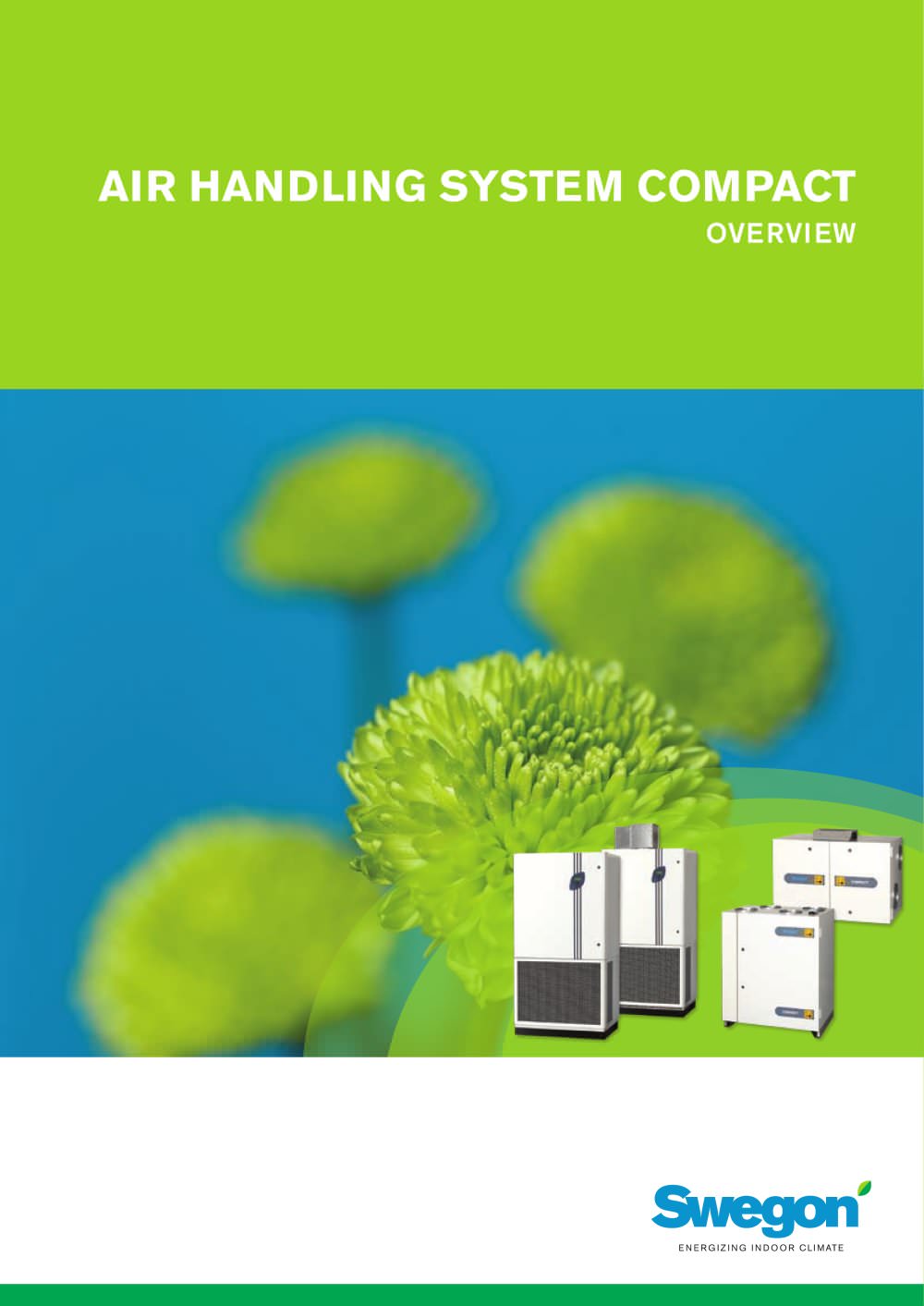

COMPACT, Product overview

COMPACT, Product overview

Product catalog summary

Overview
The document provides an overview and technical specifications for the COMPACT series of air handling units by Swegon, designed for smaller air volumes. The series includes the COMPACT Air, COMPACT Heat, COMPACT Unit, and COMPACT Top, each offering unique features for efficient ventilation and heating.

COMPACT Air and COMPACT Heat
The COMPACT Air is a complete room unit with built-in air diffuser and control equipment, featuring improved heat exchangers and energy-efficient fans. The COMPACT Heat adds heating capabilities. Both units are designed for quick installation and effective ventilation in various public premises, utilizing a displacement air distribution method with adjustable patterns through Varizon discs.

COMPACT Unit and COMPACT Top
These units focus on optimal operating economy with energy-saving fans and effective heat recovery. They are compact, space-saving, and generate low noise levels, making them suitable for visible installations in smaller buildings like offices and schools.

Heat Exchanger and Fans
The series features the RECOnomic rotary heat exchanger with high temperature efficiency (up to 85%) and low pressure drop. The fans are direct-driven with EC motors, providing high efficiency and low noise levels.

Control System - IQnomic
The IQnomic control system is standard across all COMPACT units, offering functions for economic operation, including temperature regulation, flow/pressure control, and communication capabilities. It supports TCP/IP and EIA-485 communication and can be accessed via a user-friendly terminal.

Accessories and Complements
The document lists various accessories and complements for the COMPACT units, including duct accessories, air heaters, coolers, and control equipment, enhancing functionality and adaptability for different installation requirements.

Specifications
All units have a galvanized sheet steel outer skin prepainted in white and an aluminium-zinc plated inner skin, conforming to Environmental Class C4 standards with mineral wool insulation. They are available in two sizes with the same physical dimensions but different airflow capacities.

Installation
The units are delivered on wooden pallets and require specific clearances for inspection doors. They can be installed in various configurations, including vertical setups. The COMPACT Air and Heat models have duct connections from the top, while the COMPACT Top has all connections arranged from the top.

Power Supply and Sizing
Each unit requires a specific power supply and is sized using the ProUnit software. Detailed information on airflow, available pressure, and sound levels for each model is provided.

Additional Features
The COMPACT Heat model includes a BOOSTER function with an air recirculation section and an electric air heater. The document emphasizes minimizing pressure drops in the duct system for optimal performance.

General Recommendations
For all models, it is recommended to design duct systems with minimal bends and short lengths to reduce pressure losses. The units should be installed in the room to be ventilated, with ducts leading out through the wall.

Conclusion
The COMPACT series by Swegon offers versatile and efficient air handling solutions for smaller spaces, focusing on energy efficiency, ease of installation, and advanced control capabilities.

Catalog excerpts

COMPACT Unit COMPACT Air COMPACT HeatCOMPACT Top > All of the units in the COMPACT series are equipped with the RECOnomic rotary heat exchanger, one of the most efficient heat exchangers on the market. The temperature efficiency of the RECOnomic is high, up to 85%, and its pressure drop is low. The heat exchang- ers are driven by a step motor that permits extremely high precision for controlling the rotor speed and thereby also the heat recovery efficiency. The fans in the COMPACT series are direct-driven fans. They are equipped with EC motors that provide high ef- ficiency across the entire...

Open the catalog to page 2

COMPACT Unit COMPACT Top > Outdoor air Supply air Extract air Exhaust air COMPACT Unit and COMPACT Top achieve optimal operating economy thanks to their energy-saving fans, effective heat recovery and complete control of tempera- tures, airflows and operating times as well as economic control functions. The COMPACT Unit and COMPACT Top have compact dimensions and, whats more, sharp duct bends can be connected directly to the air handling units without loss of pressure. > The COMPACT Unit and COMPACT Top units generate low noise levels. This makes it possible to install the units near utility...

Open the catalog to page 3

COMPACT AirCOMPACT Heat > The units can be installed quickly and easily and this involves minimal strain on the business operations while the refurbishment is in progress. A large number of functions integrated into the control system are ready to be activated and several of them offer unique opportunities for saving energy. The air handling units are ready to be connected to most existing supervi- sory systems. Communication can also take place directly in a network via an ordinary web browser. > The COMPACT Air and COMPACT Heat achieve optimal operating economy thanks to their energy-saving...

Open the catalog to page 4

Supply air filter Heat exchangerSupply air fan Extract air fan Extract air filterLow-velocity diffuserwith silencer Silencer > Electric air heater, 1.17 kW (acces- sory) > Air recirculation section Louvre damper Electric air heater, 7.5 kW. Change-over damper Air discharge outlet > The company reserves the right to make design changes without prior notice.

Open the catalog to page 5

Control system IQnomic > COMPACT Air and COMPACT Heat COMPACT Unit and COMPACT Top Service > 6 > The company reserves the right to make design changes without prior notice. size="-1">

Open the catalog to page 6

TBSA Damper Circulation pump for protecting the frost protection monitor function. Supplied with T-coupling, non-return valve and adjustment valve. TBLA Air heater, for water TBLE Electric air heater Tightness class 3 to EN 1751. Circular connection, 250 mm dia. Complete with damper actuator for 230 V, (spring return or on/off). One output variant. Circular connection, 250 mm dia. Extra Accessories Valve set with 2(3)-way valve, actuator, frost protection sensor and connection cable with quick connec- tor. Applicable to COMPACT Unit only. Two output variants. Degree of protec- tion IP43. Circular...

Open the catalog to page 7

The company reserves the right to make design changes without prior notice. size="-1">

Open the catalog to page 10

The company reserves the right to make design changes without prior notice.
