611G Glass Door

Product catalog summary

Overview: The Model 611G is an over-and-under refrigerator/freezer featuring a glass door for a commercial kitchen aesthetic. It utilizes the Sub-Zero dual refrigeration system to ensure superior food preservation and prevent odor transfer. The model is available in framed, overlay, and stainless steel designs, with three stainless steel finishes. A high altitude glass door option is available for special orders.

Model Options: The available model options include 611G/F (Framed), 611G/O (Overlay), 611G/S (Classic Stainless Steel), 611G/P (Platinum), and 611G/B (Carbon). Each option has specific design and finish characteristics, with shipping weights ranging from 471 to 476 lbs.

Specifications: The refrigerator/freezer has an overall width of 30", height of 84", and depth of 24". The refrigerator capacity is 12.9 cu ft, and the freezer capacity is 3.9 cu ft. It requires a rough opening of 29 1/2"W x 83 3/4"H x 24"D and a door swing clearance of 30 1/8". The annual energy usage is approximately $50, based on 9.06 cents per kilowatt hour. Electrical requirements are 115 V AC, 60 Hz, with a 15 amp dedicated circuit. Plumbing requires a 1/4" OD copper line with 20–100 psi.

Product Notes: Framed models include extruded full-length handles and an 11" louvered grille. Overlay models can match surrounding cabinetry and come with an 11" panel grille for decorative inserts. Stainless steel models feature an 11" heavy-duty louvered grille, wrapped stainless doors, and 1" diameter stainless steel handles.

Interior Features: The refrigerator includes 3 adjustable glass shelves, 1 stationary glass shelf, a high humidity compartment with a divider, a triple-pane UV resistant glass door, and an egg container. The freezer features a full-extension roll-out drawer, two-tier wire storage baskets, and an automatic ice maker.

Accessories: Available accessories include louvered, panel, and stainless steel grilles in 1" height increments from 10" to 15", grille panels for framed designs, side panels, extended full-length framed handles, stainless steel tubular handles for overlay designs, polished chrome handles, a dozen egg container with lid, and a roll-out deli basket. Accessories can be purchased through Sub-Zero dealers, with dealer information available on subzero.com.

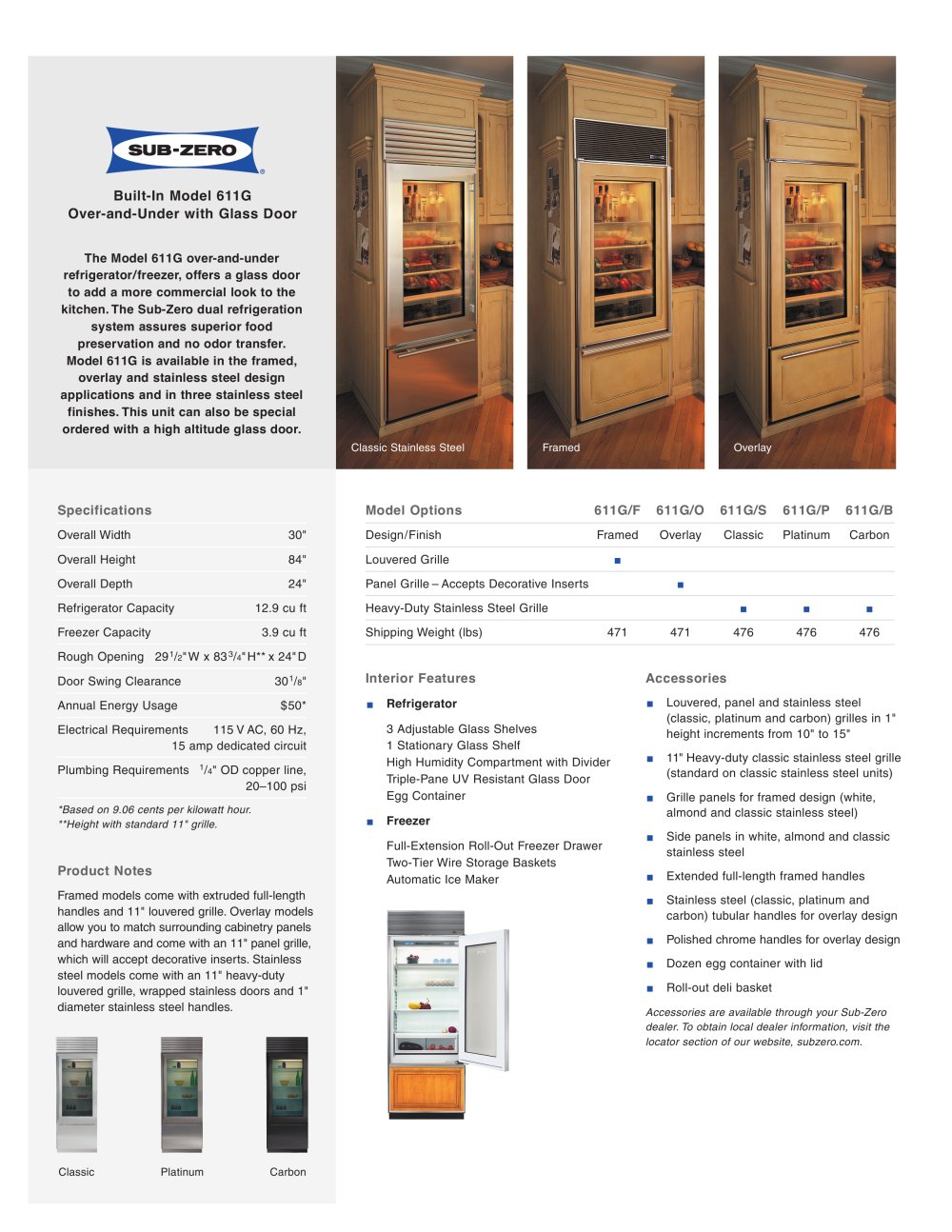

Catalog excerpts

Classic Stainless Steel Framed Overlay Overall Width30" Design/FinishFramedOverlayClassicPlatinumCarbon Overall Height84" Louvered Grille Overall Depth24" Panel GrilleAccepts Decorative Inserts Refrigerator Capacity12.9 cu ft Heavy-Duty Stainless Steel Grille Freezer Capacity3.9 cu ft Shipping Weight (lbs)471471476476476 Rough Opening29 > 1 / > 2 "W x 83 > 3 / > 4 "H**x 24"D Door Swing Clearance30 > 1 / > 8 " > Annual Energy Usage$50*Electrical Requirements115VAC, 60 Hz, Refrigerator Louvered, panel and stainless steel(classic, platinum and carbon) grilles in 1" height increments from 10" to 15"11"Heavy-duty classic stainless steel grille(standard on classic stainless steel units)Grille panels for framed design (white,almond and classic stainless steel)Side panels in white, almond and classic stainless steelExtended full-length framed handles Stainless steel (classic, platinum andcarbon) tubular handles for overlay designPolished chrome handles for overlay design Dozen egg container with lid Roll-out deli basket 3 Adjustable Glass Shelves1 Stationary Glass Shelf High Humidity Compartment with Divider Triple-Pane UV Resistant Glass Door Egg Container Freezer 15 amp dedicated circuitPlumbing Requirements Full-Extension Roll-Out Freezer DrawerTwo-Tier Wire Storage Baskets Automatic Ice Maker > 1 / > 4 " ODcopper line, 20֖100 psi > *Based on 9.06 cents per kilowatt hour.**Height with standard 11" grille. Framed models come with extruded full-lengthhandles and 11" louvered grille.Overlay models allow you to match surrounding cabinetry panelsand hardware and come with an 11" panel grille,which will accept decorative inserts.Stainless steel models come with an 11" heavy-duty louvered grille, wrapped stainless doors and 1" diameter stainless steel handles. > Accessories are available through your Sub-Zerodealer.To obtain local dealer information, visit thelocator section of our website, subzero.com. ClassicCarbonPlatinum size="-1">

Open the catalog to page 1
