611 Over-Under
611 Over-Under
- Overall Dimensions: 30" Width, 84" Height, 24" Depth
- Refrigerator Capacity: 12.7 cu ft
- Freezer Capacity: 3.9 cu ft
- Rough Opening: 29 1/2"W x 83 3/4"H x 24"D
- Door Swing Clearance: 30 1/8"
- Annual Energy Usage: $42 (based on 9.06 cents per kilowatt hour)
- Electrical Requirements: 115 V AC, 60 Hz, 15 amp dedicated circuit
- Plumbing Requirements: 1/4" OD copper line, 20–100 psi
- Refrigerator: 3 adjustable glass shelves, 1 stationary glass shelf, high humidity compartment with divider, adjustable roll-out deli basket, 2 adjustable door shelves, adjustable dairy compartment, egg container.
- Freezer: Full-extension roll-out freezer drawer, two-tier wire storage baskets, automatic ice maker.

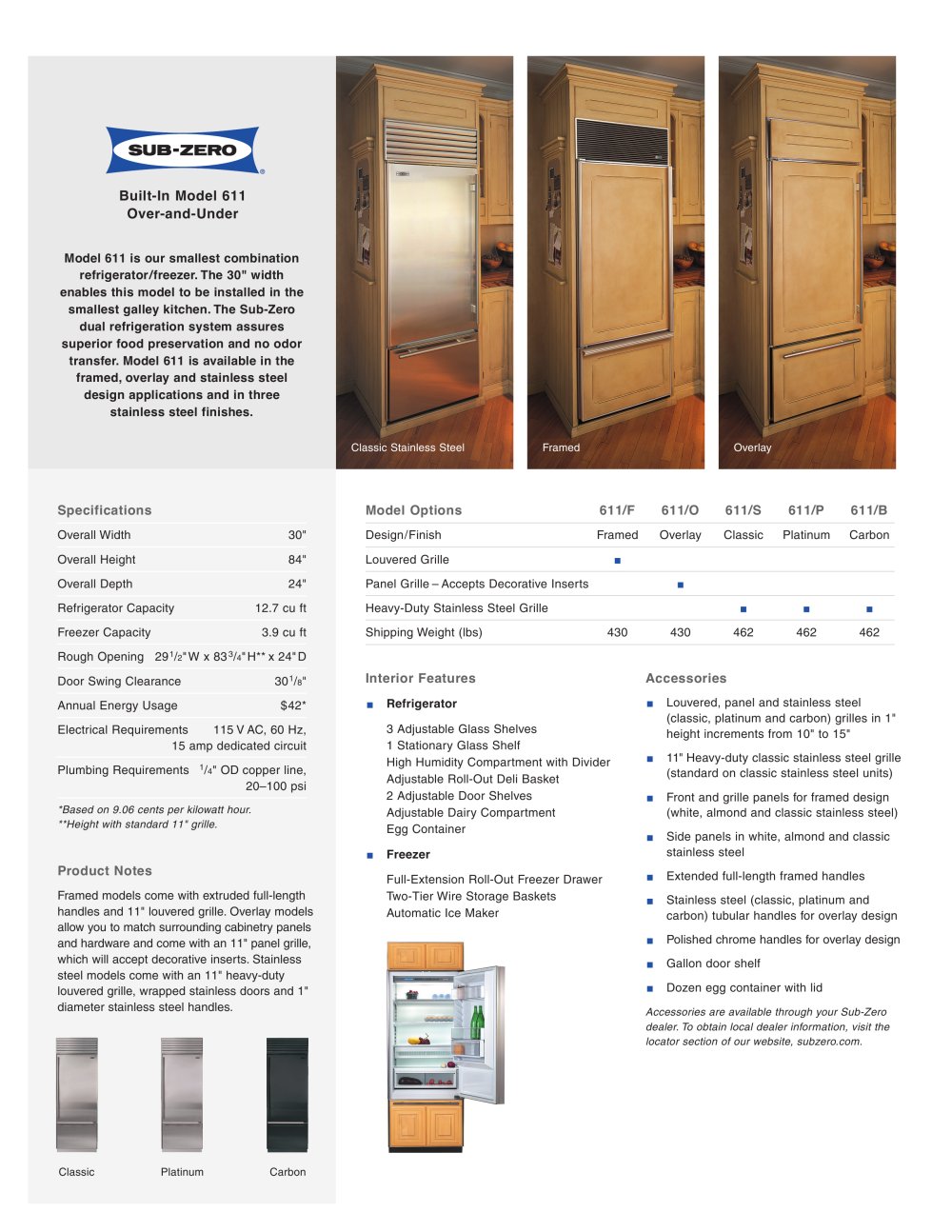

Catalog excerpts
Classic Stainless Steel Framed Overlay Overall Width30" Design/FinishFramedOverlayClassicPlatinumCarbon Overall Height84" Louvered Grille Overall Depth24" Panel GrilleAccepts Decorative Inserts Refrigerator Capacity12.7 cu ft Heavy-Duty Stainless Steel Grille Freezer Capacity3.9 cu ft Shipping Weight (lbs)430430462462462 Rough Opening29 > 1 / > 2 "W x 83 > 3 / > 4 "H**x 24"D Door Swing Clearance30 > 1 / > 8 " > Annual Energy Usage$42*Electrical Requirements115VAC, 60 Hz, Refrigerator Louvered, panel and stainless steel(classic, platinum and carbon) grilles in 1" height increments from 10" to 15"11"Heavy-duty classic stainless steel grille(standard on classic stainless steel units)Front and grille panels for framed design(white, almond and classic stainless steel)Side panels in white, almond and classic stainless steelExtended full-length framed handles Stainless steel (classic, platinum andcarbon) tubular handles for overlay designPolished chrome handles for overlay design Gallon door shelf Dozen egg container with lid Full-Extension Roll-Out Freezer DrawerTwo-Tier Wire Storage Baskets Automatic Ice Maker 3 Adjustable Glass Shelves1 Stationary Glass Shelf High Humidity Compartment with Divider Adjustable Roll-Out Deli Basket 2 Adjustable Door Shelves Adjustable Dairy Compartment Egg Container 15 amp dedicated circuitPlumbing Requirements > 1 / > 4 " ODcopper line, 20֖100 psi > *Based on 9.06 cents per kilowatt hour.**Height with standard 11" grille. Framed models come with extruded full-lengthhandles and 11" louvered grille.Overlay models allow you to match surrounding cabinetry panelsand hardware and come with an 11" panel grille,which will accept decorative inserts.Stainless steel models come with an 11" heavy-duty louvered grille, wrapped stainless doors and 1" diameter stainless steel handles. > Accessories are available through your Sub-Zerodealer.To obtain local dealer information, visit thelocator section of our website, subzero.com. ClassicCarbonPlatinum size="-1">
