601RG Glass Door

Product catalog summary
Overview
The Model 601RG is an all-refrigerator unit designed to enhance kitchen aesthetics with its glass door, offering a commercial look. It can be paired with the Model 601F freezer for maximum refrigeration capacity. The refrigerator is available in framed, overlay, and stainless steel designs, with three stainless steel finishes. A high altitude glass door option is available for special orders.

Model Options and Design
The Model 601RG comes in various design options: Framed, Overlay, Classic, Platinum, and Carbon. Each design features a louvered grille, with the stainless steel models having a heavy-duty grille. The shipping weight varies slightly between models, ranging from 400 to 430 lbs.

Specifications
  • Overall Width: 36"
  • Overall Height: 73"
  • Overall Depth: 24"
  • Refrigerator Capacity: 20.1 cu ft
  • Rough Opening: 35 1/2"W x 72 3/4"H x 24"D
  • Door Swing Clearance: 36 1/16"
  • Specify Door Swing: Left Hand (LH) or Right Hand (RH)
  • Annual Energy Usage: $37 (based on 9.06 cents per kilowatt hour)
  • Electrical Requirements: 115 V AC, 60 Hz, 15 amp dedicated circuit

Product Notes
Framed models include an extruded full-length handle and an 11" louvered grille. Overlay models allow for matching with surrounding cabinetry panels and hardware. Stainless steel models feature an 11" heavy-duty louvered grille, a wrapped stainless door, and a 1" diameter stainless steel handle.

Interior Features
  • 4 Adjustable Glass Shelves
  • 1 Stationary Glass Shelf
  • High Humidity Compartment with Dividers
  • Triple-Pane UV Resistant Glass Door
  • Egg Container

Accessories
Available accessories include side panels in white, almond, and classic stainless steel, extended full-length framed handles, stainless steel tubular handles for overlay design, polished chrome handles for overlay design, 90˚ and 105˚ door stop kits, a dozen egg container with lid, and a roll-out deli basket. Accessories can be obtained through Sub-Zero dealers, with dealer information available on the Sub-Zero website.
See more

Catalog excerpts

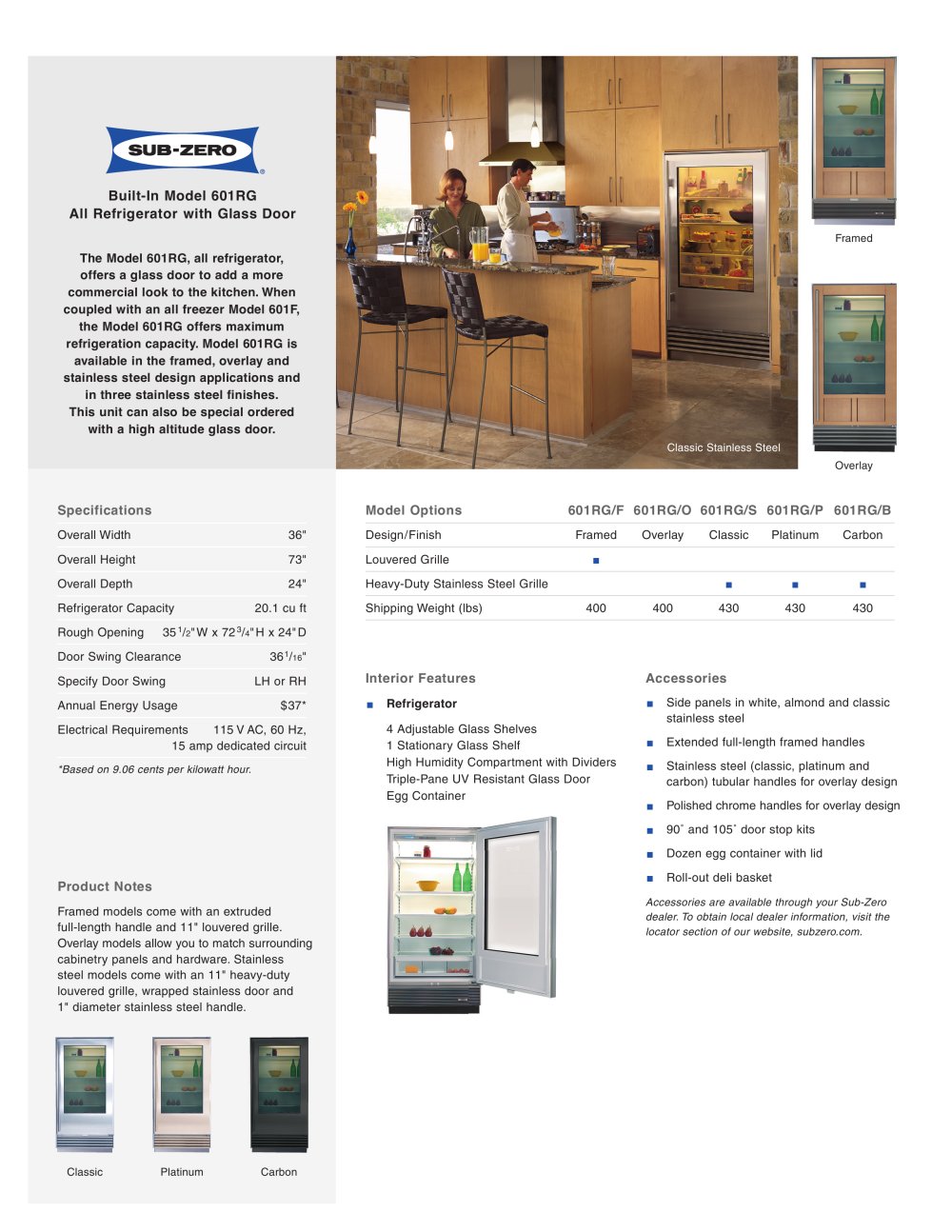

601RG Glass Door-1

Classic Stainless Steel Overlay Overall Width36" Design/FinishFramedOverlayClassicPlatinumCarbon Overall Height73" Louvered Grille Overall Depth24" Heavy-Duty Stainless Steel Grille Refrigerator Capacity20.1 cu ft Shipping Weight (lbs)400400430430430 Rough Opening35 > 1 / > 2 "W x 72 > 3 / > 4 "H x 24"D Door Swing Clearance36 > 1 / > 16 " Specify Door SwingLH or RH > Annual Energy Usage$37*Electrical Requirements115VAC, 60 Hz, Refrigerator Side panels in white, almond and classicstainless steelExtended full-length framed handles Stainless steel (classic, platinum andcarbon) tubular handles for overlay designPolished chrome handles for overlay design 90˚ and 105˚ door stop kits Dozen egg container with lid Roll-out deli basket 4 Adjustable Glass Shelves1 Stationary Glass Shelf High Humidity Compartment with Dividers Triple-Pane UV Resistant Glass Door Egg Container 15 amp dedicated circuit > *Based on 9.06 cents per kilowatt hour. Accessories are available through your Sub-Zerodealer.To obtain local dealer information, visit thelocator section of our website, subzero.com. Framed models come with an extrudedfull-length handle and 11" louvered grille. Overlay models allow you to match surroundingcabinetry panels and hardware.Stainlesssteel models come with an 11" heavy-duty louvered grille, wrapped stainless door and 1" diameter stainless steel handle. > ClassicCarbonPlatinum Framed size="-1">

 Open the catalog to page 1
