TOP FLEX

Product catalog summary

Product Overview
The document describes various models of flexible stem lights designed for different types of lamps, including dichroic, bi-pin, and LED lamps. These lights are equipped with features to ensure secure installation and are available in different colors and configurations.

TOP FLEX
This model is a flexible stem light designed for dichroic lamps, specifically MR16 lamps. It features a secure fixture to prevent disconnection and uses three springs to hold the lamp in place. The stem is available in black exclusively for this model.

SIGN FLEX
The SIGN FLEX model shares the same glass cylindrical shade as the SIGN plug-in lights and is compatible with bi-pin lamps. It includes an optional perforated metal anti-glare shield and requires basic mounting elements.

TYP FLEX
This model features a new reflector head and is available in two versions: one for MiniStar reflector lamps and another with a 1W power LED. The LED version includes the LED integrated into the lamp, and users must specify the LED color and beam angle.

Specifications
- Stem Colors: Black is exclusive to TOP FLEX.
- Stem Lengths: Various lengths are available.
- Lamp Types: QR-CBC50, QT-LP 9, QR C 16, and 1W LED.
- LED Colors: Warm white, white, blue, red, yellow, green.
- Beam Angles: Flood 40°, Spot 20°.

Installation Requirements
All models require basic elements for mounting, which are detailed on pages 150-190 of the referenced material.

Catalog excerpts

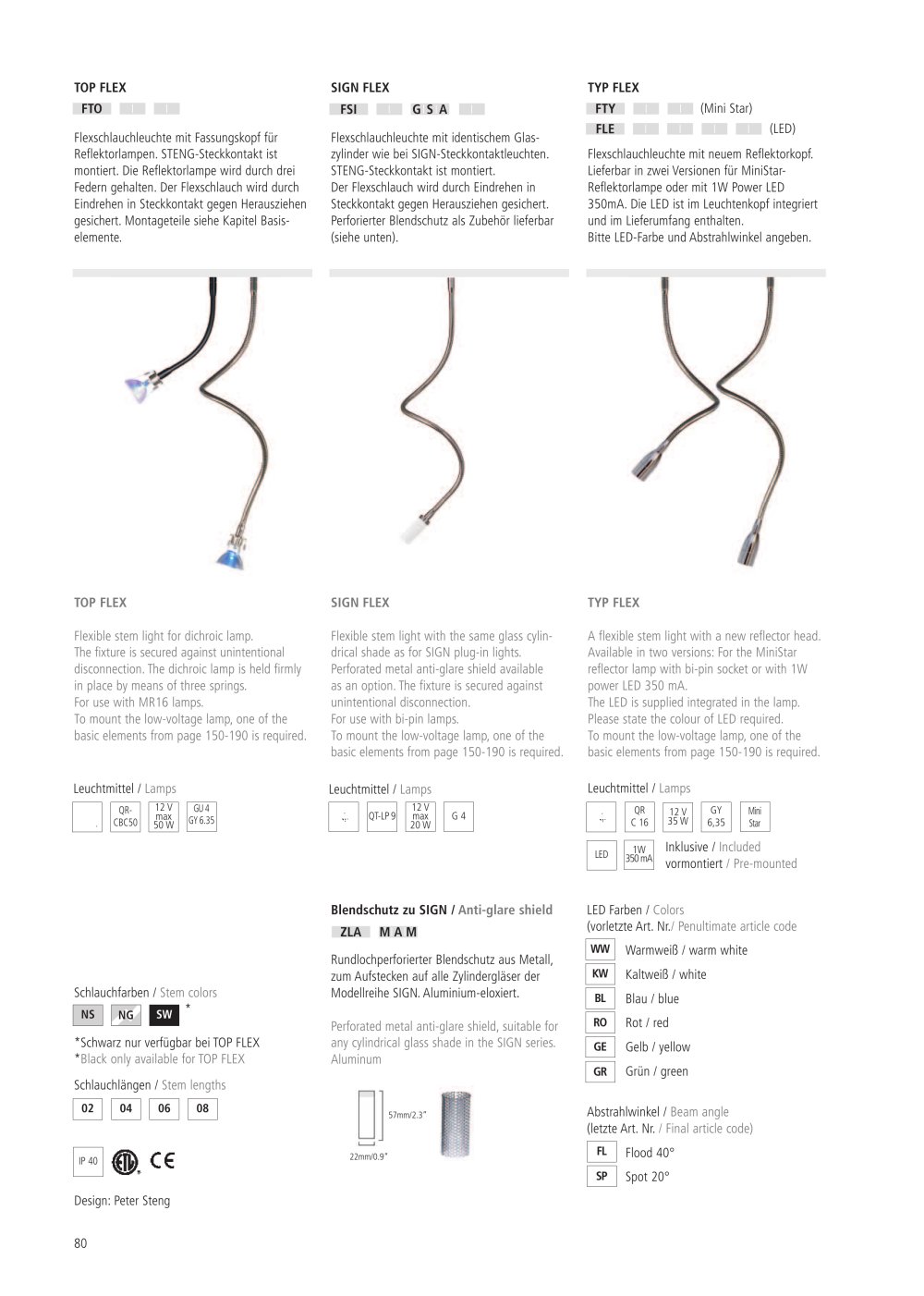

montiert. Die Reflektorlampe wird durch drei Federn gehalten. Der Flexschlauch wird durch Eindrehen in Steckkontakt gegen Herausziehen gesichert. Montageteile siehe Kapitel Basis- SIGN FLEX Flexschlauchleuchte mit identischem Glas- Der Flexschlauch wird durch Eindrehen in Steckkontakt gegen Herausziehen gesichert. Perforierter Blendschutz ais Zubehó'r lieferbar (siehe unten). lini Star) Flexschlauchleuchte mit neuem Reflektorkopf. Lieferbar in zwei Versionen für MiniStar- Reflektorlampe oder mit 1W Power LED Bitte LED-Farbe und Abstrahlwinkel angeben. SIGN FLEX Flexible stem light for dichroic lamp. The fixture is secured against unintentional disconnection. The dichroic lamp is held firmly in place by means of three springs. To mount the low-voltage lamp, one of the basic elements from page 150-190 is required. Flexible stem light with the same glass cylin- drical shade as for SIGN plug-in lights. Perforated metal anti-glare shield available as an option. The fixture is secured against unintentional disconnection. For use with bi-pin lamps. To mount the low-voltage lamp, one of the basic elements from page 150-190 is required. A flexible stem light with a new reflector head. Available in two versions: For the MiniStar reflector lamp with bi-pin socket or with 1W The LED is supplied integrated in the lamp. Please state the colour of LED required. To mount the low-voltage lamp, one of the basic elements from page 150-190 is required. Leuchtmittel / Lamps Leuchtmittel / Lamps Leuchtmittel / Lamps nklusive / Included vormontiert / Pre-mounted Schlauchfarben / Stem colors *Schwarz nur verfügbar bei TOP FLEX *Black only available for TOP FLEX Schlauchlàngen / Stem lengths Design: Peter Steng Blendschutz zu SIGN / Anti-glare shield Rundlochperforierter Blendschutz aus Metal I, zum Aufstecken auf alle Zylinderglàser der Modellreihe SIGN. Aluminium-eloxiert. Perforated metal anti-glare shield, suitable for any cylindrical glass shade in the SIGN series. (vorletzte Art. Nr./ Penultimate article code WarmweiG / warm white KaltweiG / white Blau / blue Gelb / yellow Abstrahlwinkel / Beam angle (letzte Art. Nr. / Final article code)

Open the catalog to page 1

TOP FLEX

TOP FLEX

Catalog excerpts
