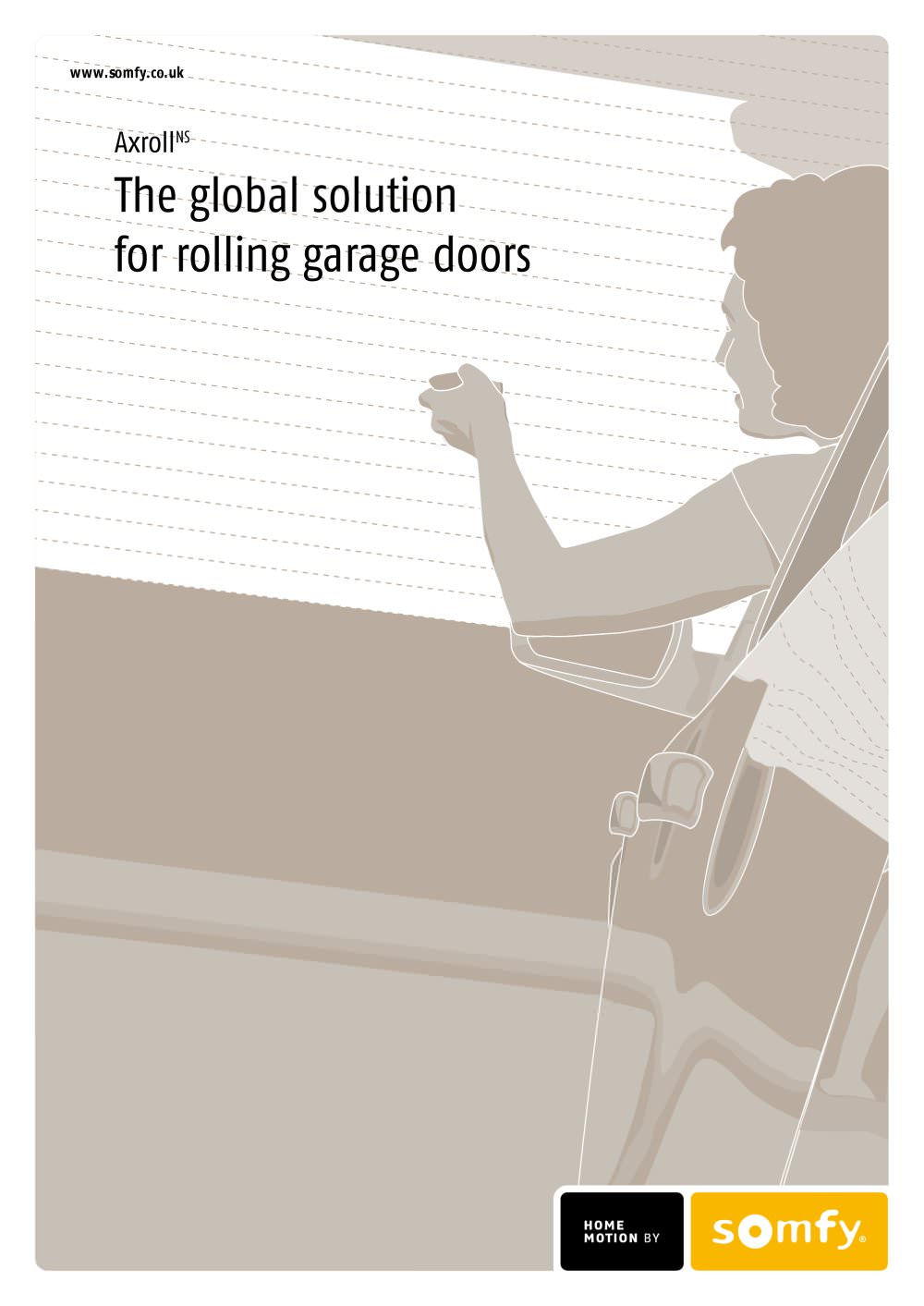

AxrollNS The global solution for rolling garage doors www.somfy.co.uk

Contents 04 Home Motion 05 Radio Technology Somfy® 06 Somfy’s range of gates and garage doors 07 The normative requirements for garage doors 07 Somfy’s compliance with the requirements 08 Why choose a rolling garage door 09 Axroll, the universal solution for rolling garage doors 10 A Somfy solution for every rolling garage door 12 The motorisation systems RDO CSI 14 The motorisation systems LT 80 H and LT 80M 16 The Axroll RTS receiver 18 The safety accessories essential for every installation 19 Optional safety accessories 20 Radio remote-controls 21 The additional control accessories 22 The...

Radio Technology Somfy® : the essential radio standard for your home Home Motion by Somfy: a new concept of comfort for your home Somfy, innovators of motorised shading devices, blinds and closures for over thirty years, have created Home Motion by Somfy, a new concept in contemporary domestic comfort. By coordinating motors, manual and automatic controls, Home Motion by Somfy provides consumers and installers with a new choice of practical, reliable solutions: - roller shutters controlled individually or as a group, - automatic controls for operating blinds or roller shutters depending on the...

Axroll, the universal solution for rolling Why choose a rolling garage door garage doors Ideal for new or reburbished garage door projects Installation: A rolling door is similar to a roller shutter. Installation is therefore simple and faster (approximately 2 hrs) than a standard garage door. The shutter rolls up vertically and takes up very little space directly behind othe lintel.Requires little space: Efficient use of the storage space in the garage: • Clear ceiling (for roof bars and • No outward projection. Ability to park a vehicle next to the door with no risk of contact as it does not...

Factory pre-set parameters for 80% of installations 3 available safety inputs (sensor bar, cells, etc.) Direct compatibility with resistive and opto-electronic sensor bars LCD display and menus for optimised programming Max. power of motor connected: 750 W Automatic switchover in mixed mode (with a remote control) in the event of the safety accessories failing ¡ ¡ ¡ ¡ ¡ ¡ The AxrollNS RTS receiver Technical characteristics For an installation complying with the latest European standards General overall size Power supply 230 Vac 50 Hz 3 A Fuse 5 AT 250 V Max. motor power 230 Vac, 750 W Compatible...

KEYTIS 2NS RTS RTS 2-channel remote-control. Stored in the car or hung up with the house keys, it controls the garage door and the gate. Supplied with 4 coloured clips to allow customisation of the remote control (black, brown, blue, green). Secure rolling code Range: 30 metres average Frequency: 433,42 MHz Power supply: Lithium batteries, model 2032 ( also compatible with model 2430)Battery life: 2 years (for approximately 6 opening/ closing operations per day)Radio remote controls Ref. 1841026 Operating temperature: -20°C to +60°C Protection factor: IP40 Size: 69 x 41,5 x 13,7 mm KEYTIS 4NS...
