Solatube® Daylighting Systems
2Pages

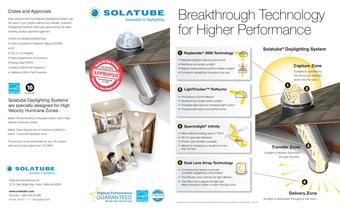

Raybender® 3000 Technology* LightTracker™ Refl ector Spectralight® Infi nity Dual Lens Array Technology • Patented daylight-capturing dome lens • Redirects low-angle sunlight • Rejects overpowering summer midday sunlight • Consistent daylighting throughout the day • Innovative in-dome refl ector • Redirects low-angle winter sunlight • Increases light input for increased light output • Unsurpassed year-round performance • Most refl ective tubing used in TDD’s • 99.7% specular refl ectivity • Purest color rendition possible • Allows for amazing run lengths of more than 30 feet 1 2 3 4 99.7% • Combines two lenses to provide complete daylighting customization • The Diffuser Lens controls the light diffusion • The Effect Lens adjusts the light and offers choices to soften or warm the light color Highest Performance All day long. All year long. GUARANTEED 1 2 3 4 Capture Zone Sunlight is captured by the dome and directed down into the tube. Transfer Zone Sunlight is directed downward through the attic. Delivery Zone Sunlight is distributed throughout the room. Solatube® Daylighting System Codes and Approvals Year Warranty 10 Rest assured that the Solatube Daylighting System can be used in your project without any hassles. Solatube Daylighting Systems have been approved by all major building product approval agencies: • A440-05 (AAMA/WDMA/CSA) • Code Compliance Research Report (CCRR) • ICC • City of Los Angeles • Texas Department of Insurance • Energy Star®/NFRC • Federal OSHA Fall Protection • California OSHA Fall Protection Solatube International, Inc. 2210 Oak Ridge Way, Vista, California 92081 www.solatube.com Toll Free 1-888-SOLATUBE Part No. 951571 v1.7 ©Copyright 2009 Leak Proof DESIGN Solatube Daylighting Systems are specially designed for High Velocity Hurricane Zones. Meets Florida Building Code approval for use in High Velocity Hurricane Zones. Meets Texas Department of Insurance criteria for Inland 1 zone and Seaward zone. This product is recommended for any US location with wind zones higher than 120 MPH. Breakthrough Technology for Higher Performance * Solatube® products that incorporate Raybender® 3000 Technology are protected under Patent No. 7,546,709

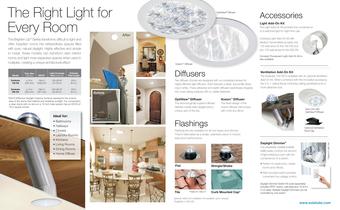

Model Tube Size (diameter) EDCS* Light Coverage Area (residential) Potential Tube Length Solatube 160 DS 10 in (250 mm) 160 in2 (1032 cm2) 150-200 ft2 (14-19 m2) 20 ft+ (6 m+) Solatube 290 DS 14 in (350 mm) 290 in2 (1871 cm2) 250-300 ft2 (23-28 m2) 30 ft+ (9 m+) * EDCS (Effective Daylight Capture Surface) represents the surface area of the dome that collects and redirects sunlight. For comparison, a clear dome with no lens on a 10 inch tube system has an EDCS of 78.5 square inches. The Brighten Up® Series transforms diffi cult to light and often forgotten rooms into extraordinary spaces fi...
