Short Information: THERMINATOR II Pellets & Log Wood

Product catalog summary

Overview: The Therminator II is a compact and space-saving boiler designed for efficient heating using pellets and log wood. It features an intuitive control system called the ecomanager and maintains high efficiency through a patented, fully automatic heat exchanger cleaning system.

Key Features:

High Efficiency: The system achieves up to 95.4% efficiency, with excellent combustion at high temperatures (1000 - 1200°C) using downward combustion and wood gasification technology.
Advanced Technology: It includes a patented Lambda sensor technology, continuously variable ID fan, and automatic heat exchanger cleaning.
Construction: The boiler has a large stainless steel filling chamber and a generous ash chamber with fireclays.
Safety and Control: Features include a safety temperature limiter, automatic ignition by hot air fan, and a control system with primary and secondary air control.

Technical Specifications:

Models: Therminator II is available in various power outputs: 22 kW, 30 kW, 40 kW, 49 kW, and 60 kW.
Dimensions: Vary by model, with depth ranging from 102 cm to 136 cm, width from 62 cm to 83 cm, and height from 130 cm to 147 cm.
Weight and Capacity: Weight ranges from 520 kg to 777 kg, with water content from 90 liters to 188 liters and filling area from 145 liters to 290 liters.
Additional Features: Includes a backup battery, optional flange for automatic filling, and a pellet feeder.

Standards and Compliance: The Therminator II complies with EN 303-5 and CEN/TC 57 standards, ensuring high-quality performance and safety.

Catalog excerpts

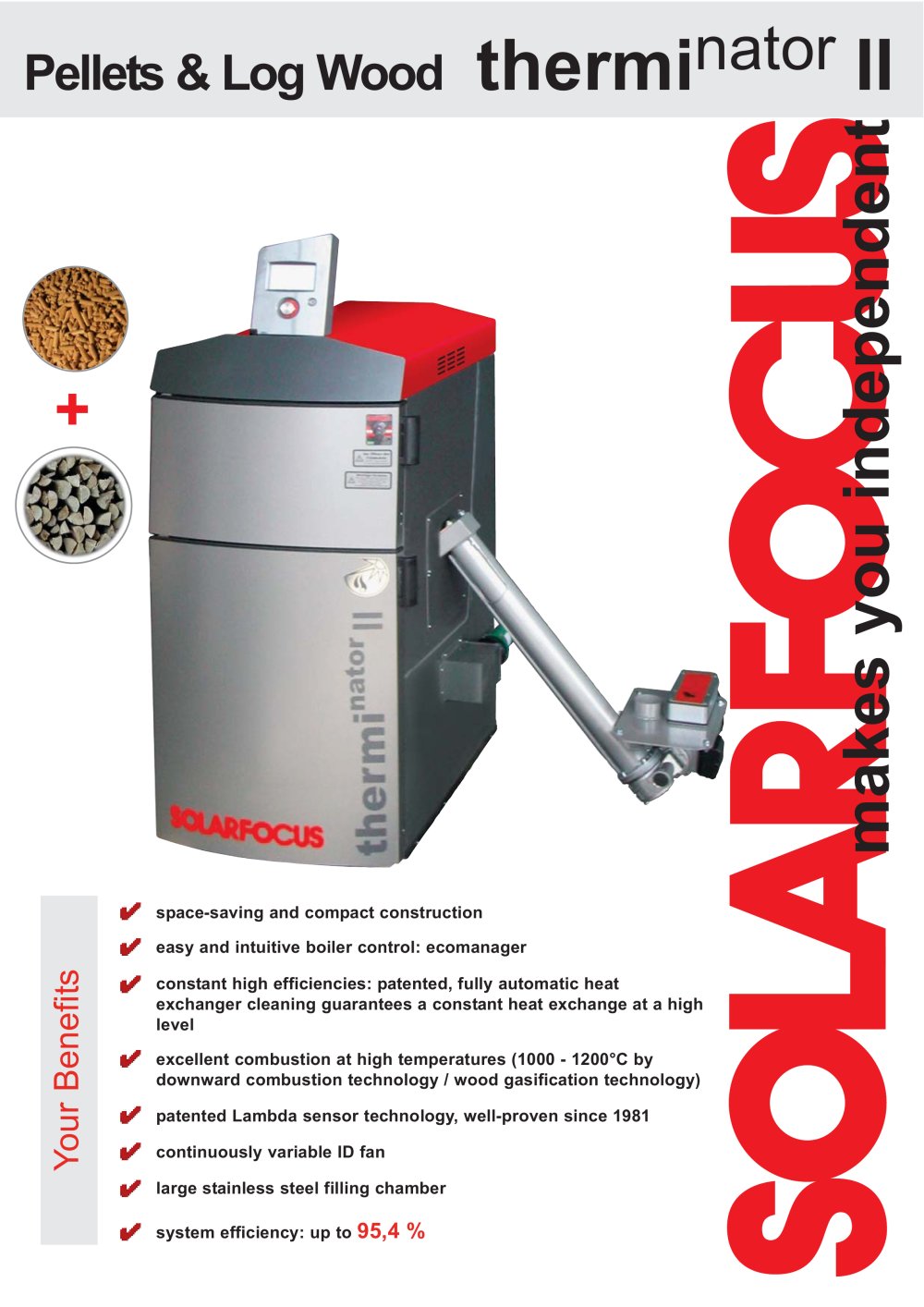

Short Information: THERMINATOR II Pellets & Log Wood-1

Pellets & Log Wood therm i l/ space-saving and compact construction if easy and intuitive boiler control: ecomanager if constant high efficiencies: patented, fully automatic heat exchanger cleaning guarantees a constant heat exchange at a high |/ excellent combustion at high temperatures (1000 - 1200°C by downward combustion technology / wood gasification technology) |/ patented Lambda sensor technology, well-proven since 1981 if large stainless steel filling chamber

Open the catalog to page 1

Short Information: THERMINATOR II Pellets & Log Wood-2

characteristics termÌriator (2) Hopper grate of high quality chromium steel casting (4) Automatic heat exchanger cleaning system (8) Safety temperature limiter ((9) Stainless steel chamber (10) Generous ash chamber with with fireclays (12) Control system - Lambda ecomana9er (14) Secondary air control with servomotor (17) Flange for automatic filling (optional left or right) Stated dimensions without ignition, controller, induced draft fan and flue pipe. For more details about all our feeding systems see our brochures Solar thermal plants Biomass boilers SOLARFOCUS GmbH WerkstraBe 1 A-4451 SlUlrich/Steyr...

Open the catalog to page 2
