Short Information: PELLET TOP

Product catalog summary

Overview: The Pellet Boiler 'pellettop' is designed for space efficiency and ease of use, featuring the ecomanager-touch control system. It maintains high efficiency through a patented, fully automatic heat exchanger cleaning system, ensuring consistent heat exchange. The boiler operates at high combustion temperatures (1000 - 1200°C) using downward combustion and wood gasification technologies.

Key Features:

Patented Lambda sensor technology, in use since 1981, ensures optimal combustion.
A continuously variable induced draft (ID) fan enhances performance.
Fuel can be delivered via a vacuum system or auger, with a single axis rotary star wheel providing 100% back burning protection.
System efficiency reaches up to 94.9%.

Components:

Downburn system
Lambda sensor
Induced draft fan
Single axis rotary valve (patented) for backburning protection
Heat exchanger with automatic cleaning system
Energy-efficient glow pencil
Primary air duct
Ash chamber and door
Pellet storage container
Full graphic control panel
Vacuum motor
Air return hose
Pellet filling hose

Technical Data:

Nominal power: 14.9 kW and 25 kW
Minimum power: 4.5 kW and 6.6 kW
Dimensions (Depth x Width x Height): 108.5 cm x 55 cm x 143 cm and 120 cm x 55 cm x 155 cm
Flue pipe diameter: 13 cm
Height of the center of the flue pipe: 61.5 cm and 75.5 cm
Weight: 292 kg and 385 kg
Water content: 51 liters and 66 liters
Pellet storage container capacity: 71 liters and 87 liters
Fuel type: Pellets AN 14961-2, ENplus-A1

Additional Information: The system is compatible with solar thermal plants and biomass boilers, offering a sustainable heating solution.

Catalog excerpts

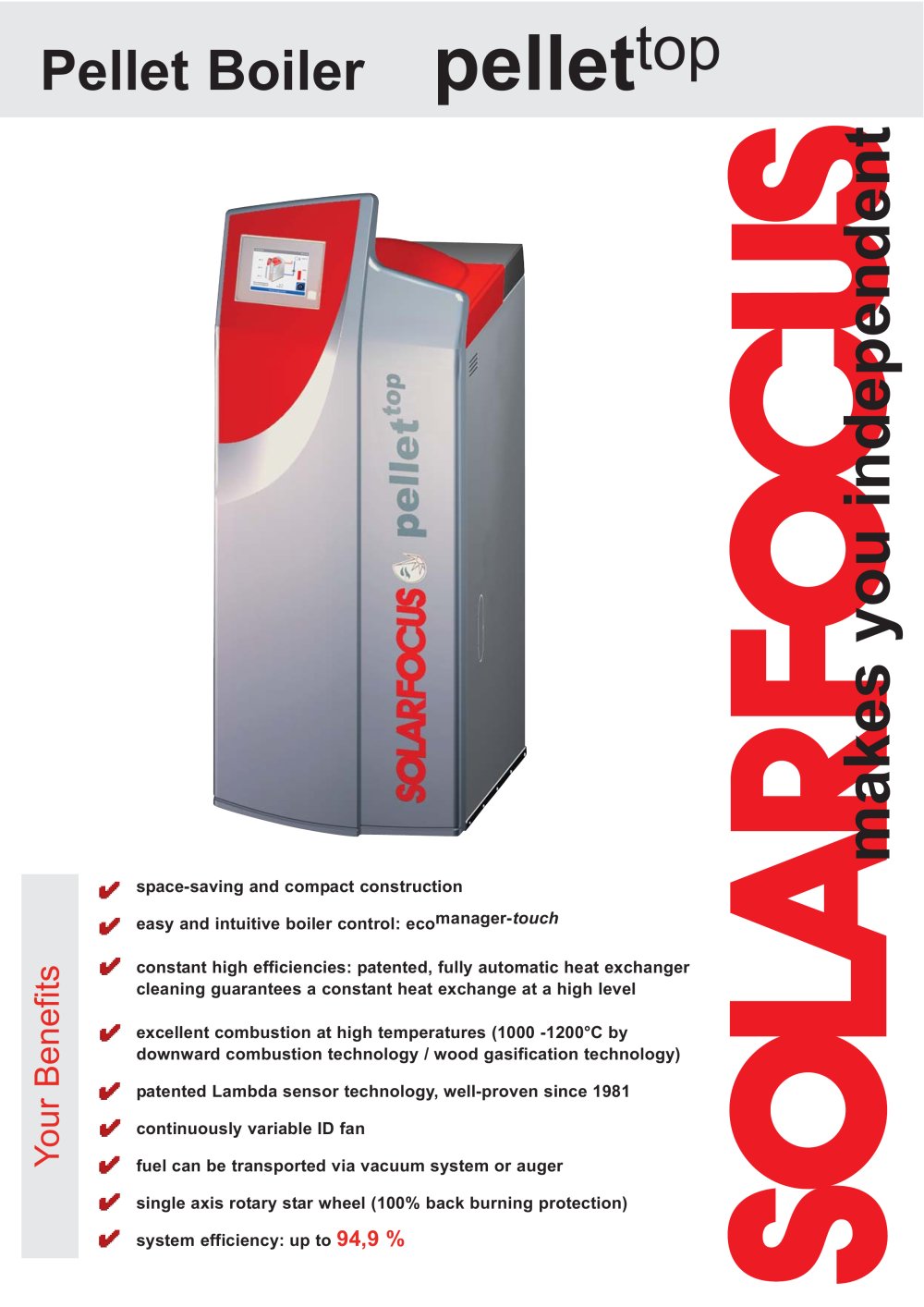

space-saving and compact construction if easy and intuitive boiler control: ecomana9er"*0l/c', |/ constant high efficiencies: patented, fully automatic heat exchanger cleaning guarantees a constant heat exchange at a high level ^ excellent combustion at high temperatures (1000 -1200°C by downward combustion technology / wood gasification technology) |/ patented Lambda sensor technology, well-proven since 1981 |/ fuel can be transported via vacuum system or auger |/ single axis rotary star wheel (100% back burning protection)

Open the catalog to page 1

top characteristics pellet 12 (1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12) (13) Downburn system Lambda sensor Induced draft fan Single axis rotary valve (patented) - 100% backburning protection Heat exchanger with automatic cleaning system Energy efficient glow pencil Primary air duct Ash chamber and door Pellet storage container Full graphic control panel Vacuum motor Air return hose Pellet filling hose 13 11 2 3 10 10.0 2.20 10 Kun den me 1 4 2 3 7 5 6 8 9 Kes sele inst nü ellu nge n Wä Sau Wä gau rme stra taus gun che g r gler 09: 11:3 Hei Bet Sol arre rme men gen zäh Aus gan Hei gste...

Open the catalog to page 2
