Ducts with UVC lamps
Ducts with UVC lamps
- Voltage and Frequency: 230 V, 50 Hz
- Power and Current: Ranges from 0.31 kW, 1.4 A to 0.93 kW, 4.2 A depending on the model
- Air Flow: Ranges from 3000 m3/h to 9000 m3/h
- Dimensions: Vary by model, e.g., 400x400xL1200 mm to 700x700xL1200 mm
- Number of Lamps: Varies from 2 to 6 depending on the model
- Lamp Efficiency: Available in medium and high efficiency
- Stainless steel AISI 304 channel with standard flange
- Inspection door with security microswitch
- Electrical panel located on the machine
- Recommended maximum air speed: 5 m/s
- Medium efficiency lamps are suitable for low/medium odor impact
- High efficiency lamps are recommended for heavy odor impact
Catalog excerpts

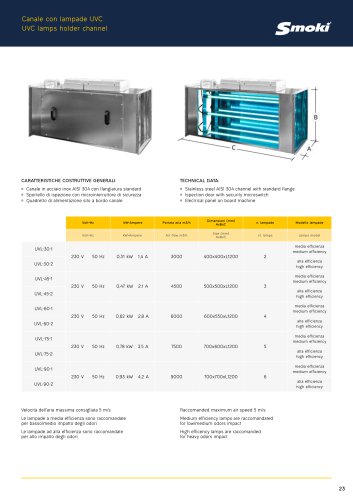

Canale con lampade UVC UVC lamps holder channel CARATTERISTICHE COSTRUTTIVE GENERALI: • Canale in acciaio inox AISI 304 con flangiatura standard • Sportello di ispezione con microinterruttore di sicurezza • Quadretto di alimentazione sito a bordo canale • Stainless steel AISI 304 channel with standard flange • Ispection door with security microswitch • Electrical panel on board machine media efficienza medium efficiency alta efficienza high efficiency media efficienza medium efficiency 3 alta efficienza high efficiency media efficienza medium efficiency 4 alta efficienza high efficiency media efficienza medium efficiency 5 alta efficienza high efficiency media efficienza medium efficiency alta efficienza high efficiency Velocita dell'aria massima consigliata 5 m/s Le lampade a media efficienza sono raccomandate per basso/medio impatto degli odori Le lampade ad alta efficienza sono raccomandate per alto impatto degli odori Raccomanded maximum air speed 5 m/s Medium efficiency lamps are raccomandated for low/medium odors impact High efficency lamps are raccomanded for heavy odors impact
Open the catalog to page 1All SMOKI S.R.L. catalogs and technical brochures

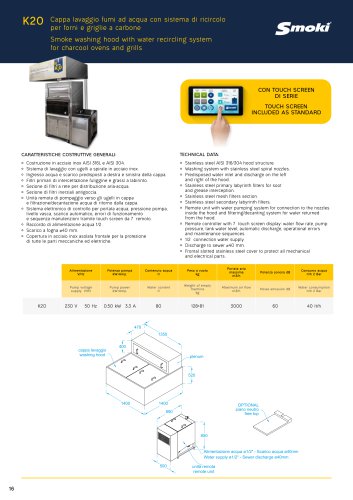

Cappa K2O3 Pages

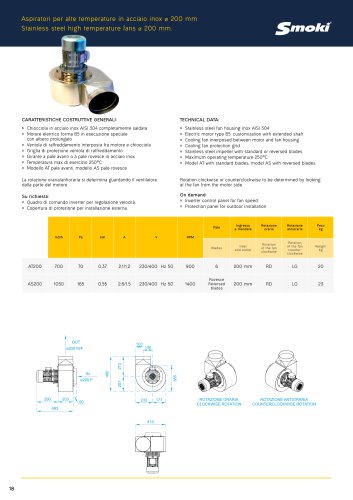

High temperature fans6 Pages

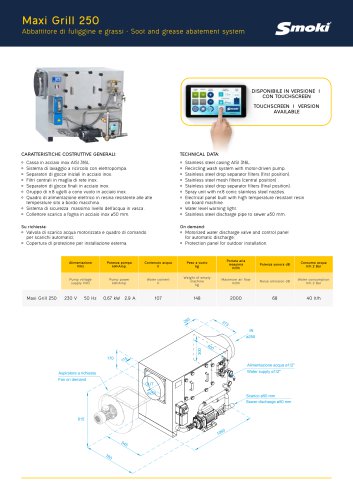

Maxi Grill7 Pages

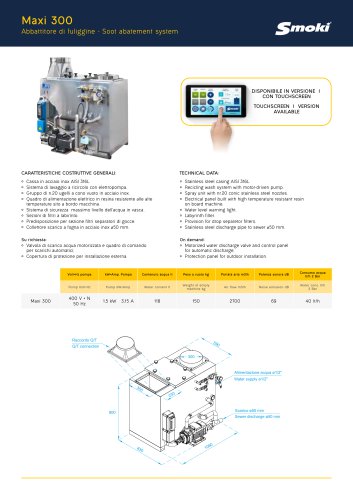

Maxi5 Pages

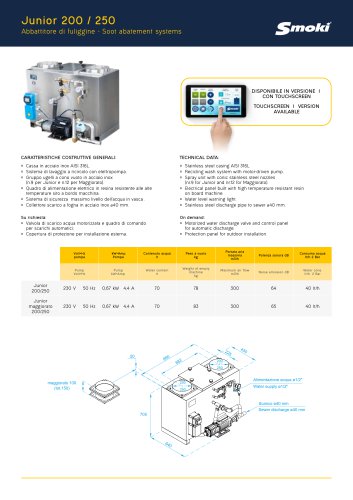

Junior4 Pages
