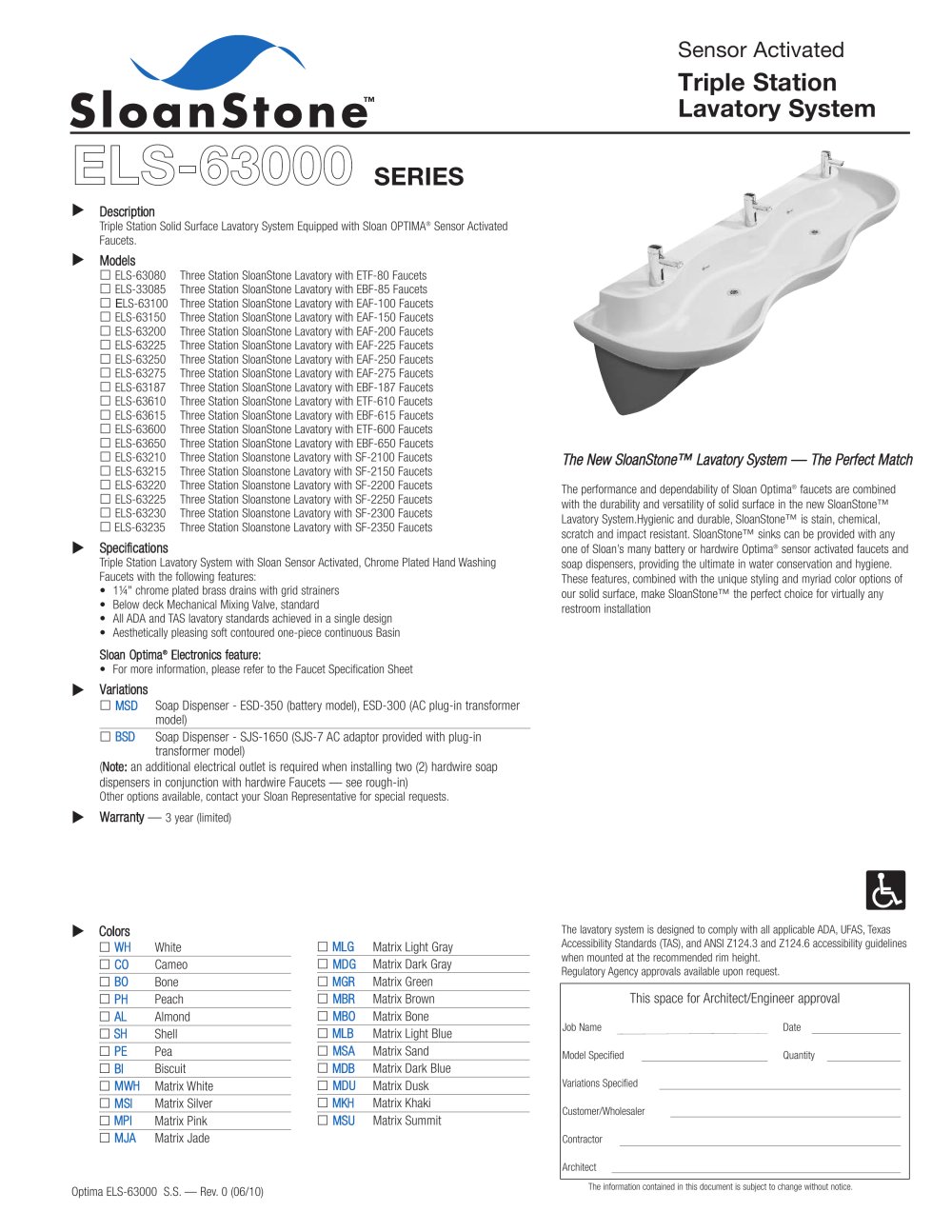

ELS-63000 u u u Sensor Activated Triple Station Lavatory System This space for Architect/Engineer approval Job Name Date Model Specified Quantity Variations Specified Customer/Wholesaler Contractor Architect The information contained in this document is subject to change Optima ELS-63000 S.S. — Rev. 0 (06/10) without notice. SERIES u u Description Triple Station Solid Surface Lavatory System Equipped with Sloan OPTIMA® Sensor Activated Faucets. Models £ ELS-63080 Three Station SloanStone Lavatory with ETF-80 Faucets £ ELS-33085 Three Station SloanStone Lavatory with EBF-85 Faucets £ ELS-63100 Three Station SloanStone Lavatory with EAF-100 Faucets £ ELS-63150 Three Station SloanStone Lavatory with EAF-150 Faucets £ ELS-63200 Three Station SloanStone Lavatory with EAF-200 Faucets £ ELS-63225 Three Station SloanStone Lavatory with EAF-225 Faucets £ ELS-63250 Three Station SloanStone Lavatory with EAF-250 Faucets £ ELS-63275 Three Station SloanStone Lavatory with EAF-275 Faucets £ ELS-63187 Three Station SloanStone Lavatory with EBF-187 Faucets £ ELS-63610 Three Station SloanStone Lavatory with ETF-610 Faucets £ ELS-63615 Three Station SloanStone Lavatory with EBF-615 Faucets £ ELS-63600 Three Station SloanStone Lavatory with ETF-600 Faucets £ ELS-63650 Three Station SloanStone Lavatory with EBF-650 Faucets £ ELS-63210 Three Station Sloanstone Lavatory with SF-2100 Faucets £ ELS-63215 Three Station Sloanstone Lavatory with SF-2150 Faucets £ ELS-63220 Three Station Sloanstone Lavatory with SF-2200 Faucets £ ELS-63225 Three Station Sloanstone Lavatory with SF-2250 Faucets £ ELS-63230 Three Station Sloanstone Lavatory with SF-2300 Faucets £ ELS-63235 Three Station Sloanstone Lavatory with SF-2350 Faucets Specifications Triple Station Lavatory System with Sloan Sensor Activated, Chrome Plated Hand Washing Faucets with the following features: • 1¼" chrome plated brass drains with grid strainers • Below deck Mechanical Mixing Valve, standard • All ADA and TAS lavatory standards achieved in a single design • Aesthetically pleasing soft contoured one-piece continuous Basin Sloan Optima® Electronics feature: • For more information, please refer to the Faucet Specification Sheet Variations £ MSD Soap Dispenser - ESD-350 (battery model), ESD-300 (AC plug-in transformer model) £ BSD Soap Dispenser - SJS-1650 (SJS-7 AC adaptor provided with plug-in transformer model) (Note: an additional electrical outlet is required when installing two (2) hardwire soap dispensers in conjunction with hardwire Faucets — see rough-in) Other options available, contact your Sloan Representative for special requests. Warranty — 3 year (limited) The New SloanStone™ Lavatory System — The Perfect Match The performance and dependability of Sloan Optima® faucets are combined with the durability and versatility of solid surface in the new SloanStone™ Lavatory System.Hygienic and durable, SloanStone™ is stain, chemical, scratch and impact resistant. SloanStone™ sinks can be provided with any one of Sloan’s many battery or hardwire Optima® sensor activated faucets and soap dispensers, providing the ultimate in water conservation and hygiene. These features, combined with the unique styling and myriad color options of our solid surface, make SloanStone™ the perfect choice for virtually any restroom installation u Colors £ WH White £ CO Cameo £ BO Bone £ PH Peach £ AL Almond £ SH Shell £ PE Pea £ BI Biscuit £ MWH Matrix White £ MSI Matrix Silver £ MPI Matrix Pink £ MJA Matrix Jade £ MLG Matrix Light Gray £ MDG Matrix Dark Gray £ MGR Matrix Green £ MBR Matrix Brown £ MBO Matrix Bone £ MLB Matrix Light Blue £ MSA Matrix Sand £ MDB Matrix Dark Blue £ MDU Matrix Dusk £ MKH Matrix Khaki £ MSU Matrix Summit The lavatory system is designed to comply with all applicable ADA, UFAS, Texas Accessibility Standards (TAS), and ANSI Z124.3 and Z124.6 accessibility guidelines when mounted at the recommended rim height. Regulatory Agency approvals available upon request.

SLOAN VALVE COMPANY • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131 Phone: 1-800-982-5839 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380 • www.sloanvalve.com Copyright © 2010 Sloan Valve Company Optima ELS-73000 S.S. — Rev.0 (06/10) LIVE TEXT ROUGH-IN 2” (50 MM) 113/16” (46 mm) LIVE TEXT 2 19 7/10” (500 MM) Consult local electrical codes for the mounting location of the 110/24 VAC Class 2 transformer. For additional technical information, contact the Sloan Installation Engineering Department at 1-888-SLOAN-14 (1-888-756-2614) or techsupport@sloanvalve.com. Triple Station...
