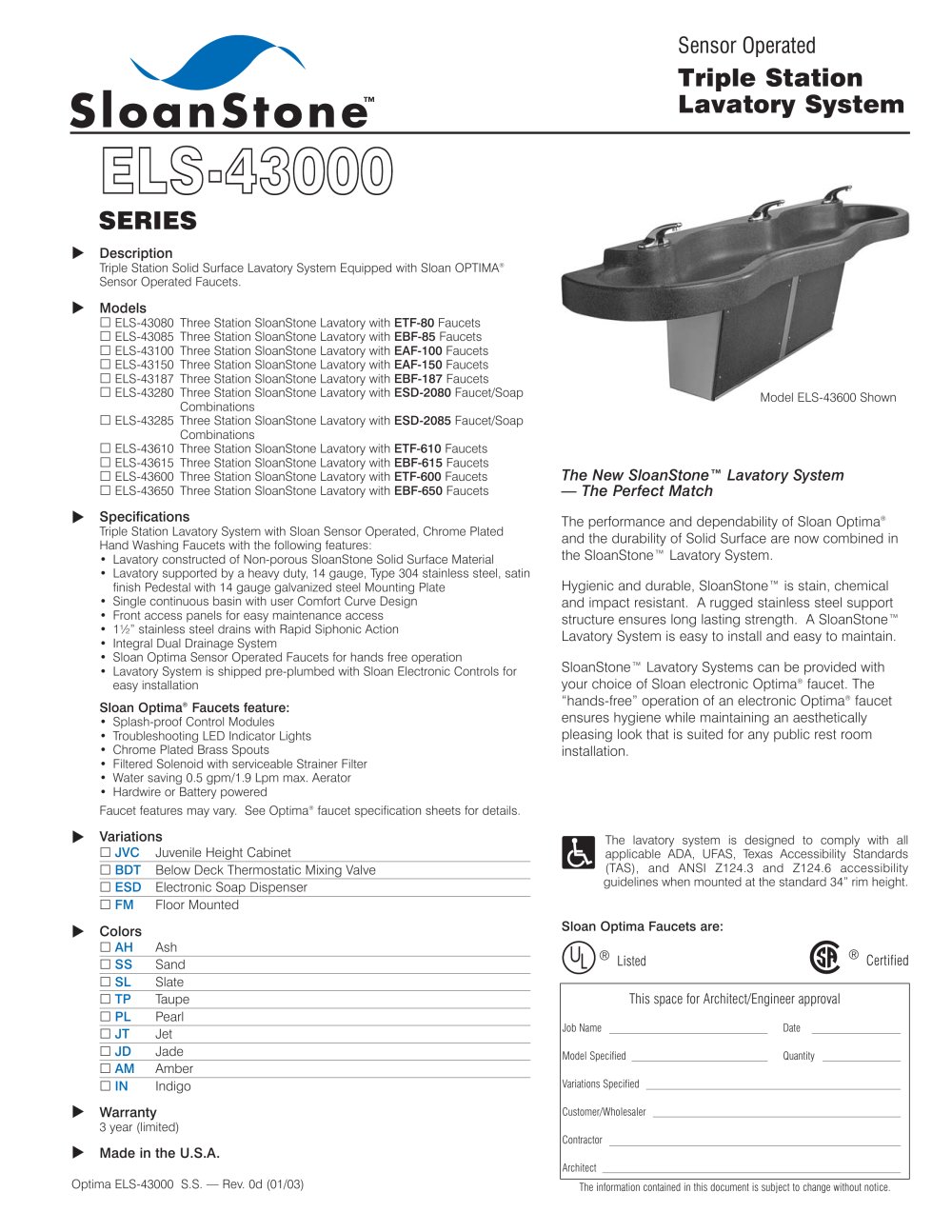

Description Triple Station Solid Surface Lavatory System Equipped with Sloan OPTIMA® Sensor Operated Faucets. Models .. ELS-43080 Three Station SloanStone Lavatory with ETF-80 Faucets .. ELS-43085 Three Station SloanStone Lavatory with EBF-85 Faucets .. ELS-43100 Three Station SloanStone Lavatory with EAF-100 Faucets .. ELS-43150 Three Station SloanStone Lavatory with EAF-150 Faucets .. ELS-43187 Three Station SloanStone Lavatory with EBF-187 Faucets .. ELS-43280 Three Station SloanStone Lavatory with ESD-2080 Faucet/Soap Combinations .. ELS-43285 Three Station SloanStone Lavatory with ESD-2085 Faucet/Soap Combinations .. ELS-43610 Three Station SloanStone Lavatory with ETF-610 Faucets .. ELS-43615 Three Station SloanStone Lavatory with EBF-615 Faucets .. ELS-43600 Three Station SloanStone Lavatory with ETF-600 Faucets .. ELS-43650 Three Station SloanStone Lavatory with EBF-650 Faucets Specifications Triple Station Lavatory System with Sloan Sensor Operated, Chrome Plated Hand Washing Faucets with the following features: • Lavatory constructed of Non-porous SloanStone Solid Surface Material • Lavatory supported by a heavy duty, 14 gauge, Type 304 stainless steel, satin finish Pedestal with 14 gauge galvanized steel Mounting Plate • Single continuous basin with user Comfort Curve Design • Front access panels for easy maintenance access • 1½” stainless steel drains with Rapid Siphonic Action • Integral Dual Drainage System • Sloan Optima Sensor Operated Faucets for hands free operation • Lavatory System is shipped pre-plumbed with Sloan Electronic Controls for easy installation Sloan Optima® Faucets feature: • Splash-proof Control Modules • Troubleshooting LED Indicator Lights • Chrome Plated Brass Spouts • Filtered Solenoid with serviceable Strainer Filter • Water saving 0.5 gpm/1.9 Lpm max. Aerator • Hardwire or Battery powered Faucet features may vary. See Optima® faucet specification sheets for details. Variations .. JVC Juvenile Height Cabinet .. BDT Below Deck Thermostatic Mixing Valve .. ESD Electronic Soap Dispenser .. FM Floor Mounted Colors .. AH Ash .. SS Sand .. SL Slate .. TP Taupe .. PL Pearl .. JT Jet .. JD Jade .. AM Amber .. IN Indigo Warranty 3 year (limited) Made in the U.S.A. .. .. .. .. Sensor Operated Triple Station Lavatory System This space for Architect/Engineer approval Job Name Date Model Specified Quantity Variations Specified Customer/Wholesaler Contractor Architect Optima ELS-43000 S.S. — Rev. 0d (01/03) The information contained in this document is subject to change without notice. Sloan Optima Faucets are: The New SloanStone™ Lavatory System — The Perfect Match The performance and dependability of Sloan Optima® and the durability of Solid Surface are now combined in the SloanStone™ Lavatory System. Hygienic and durable, SloanStone™ is stain, chemical and impact resistant. A rugged stainless steel support structure ensures long lasting strength. A SloanStone™ Lavatory System is easy to install and easy to maintain. SloanStone™ Lavatory Systems can be provided with your choice of Sloan electronic Optima® faucet. The “hands-free” operation of an electronic Optima® faucet ensures hygiene while maintaining an aesthetically pleasing look that is suited for any public rest room installation. .. .. .. SERIES Model ELS-43600 Shown The lavatory system is designed to comply with all applicable ADA, UFAS, Texas Accessibility Standards (TAS), and ANSI Z124.3 and Z124.6 accessibility guidelines when mounted at the standard 34” rim height.

SLOAN VALVE COMPANY • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131 Phone: 1-800-9-VALVE-9 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380 • http://www.sloanvalve.com Copyright © 2003 Sloan Valve Company Printed in the U.S.A. Made in the U.S.A. Optima ELS-43000 S.S. — Rev. 0d (01/03) ROUGH-IN OPERATION As the user’s hands enter the beam’s effective range, the beam is reflected back into the sensor receiver and activates the solenoid valve allowing water to flow from the faucet. Water will flow until user’s hands are removed or until the faucet reaches its automatic time out limit setting....
