PULSAR
6Pages

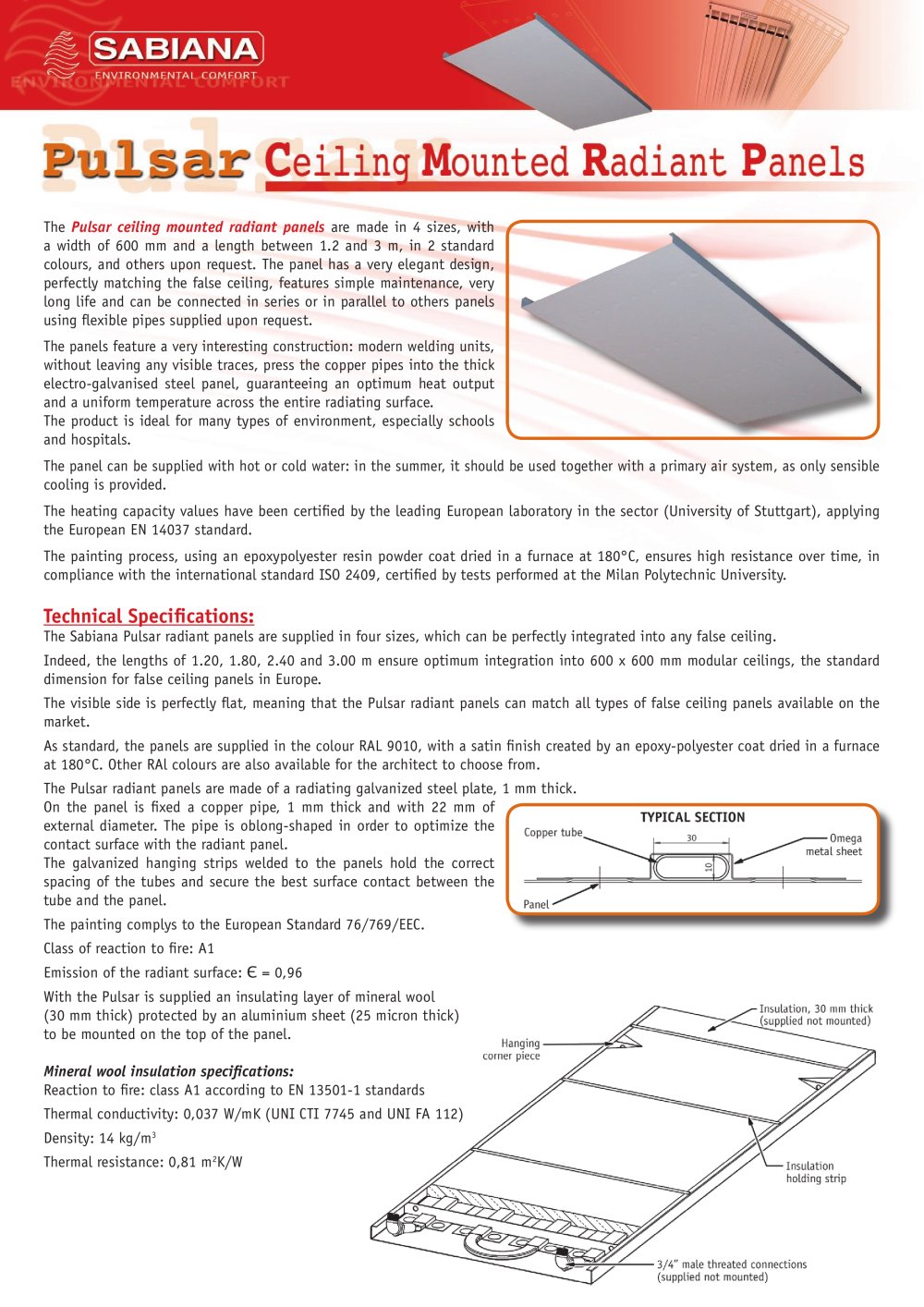

The Pulsar ceiling mounted radiant panels are made in 4 sizes, witha width of 600 mm and a length between 1.2 and 3 m, in 2 standard colours, and others upon request. The panel has a very elegant design, perfectly matching the false ceiling, features simple maintenance, very long life and can be connected in series or in parallel to others panels using flexible pipes supplied upon request. The panels feature a very interesting construction: modern welding units, without leaving any visible traces, press the copper pipes into the thick electro-galvanised steel panel, guaranteeing an optimum heat output and a uniform temperature across the entire radiating surface. The product is ideal for many types of environment, especially schools and hospitals. The panel can be supplied with hot or cold water: in the summer, it should be used together with a primary air system, as only sensible cooling is provided.The heating capacity values have been certified by the leading European laboratory in the sector (University of Stuttgart), applyingthe European EN 14037 standard.The painting process, using an epoxypolyester resin powder coat dried in a furnace at 180C, ensures high resistance over time, incompliance with the international standard ISO 2409, certified by tests performed at the Milan Polytechnic University. > The Sabiana Pulsar radiant panels are supplied in four sizes, which can be perfectly integrated into any false ceiling.Indeed, the lengths of 1.20, 1.80, 2.40 and 3.00 m ensure optimum integration into 600 x 600 mm modular ceilings, the standarddimension for false ceiling panels in Europe.The visible side is perfectly flat, meaning that the Pulsar radiant panels can match all types of false ceiling panels available on themarket. А = 0,96With the Pulsar is supplied an insulating layer of mineral wool(30 mm thick) protected by an aluminium sheet (25 micron thick) to be mounted on the top of the panel. Mineral wool insulation specifications: As standard, the panels are supplied in the colour RAL 9010, with a satin finish created by an epoxy-polyester coat dried in a furnace Reaction to fire: class A1 according to EN 13501-1 standardsThermal conductivity: 0,037 W/mK (UNI CTI 7745 and UNI FA 112) Density: 14 kg/m at 180İC. Other RAl colours are also available for the architect to choose from.The Pulsar radiant panels are made of a radiating galvanized steel plate, 1 mm thick.On the panel is fixed a copper pipe, 1 mm thick and with 22 mm of external diameter. The pipe is oblong-shaped in order to optimize the contact surface with the radiant panel. The galvanized hanging strips welded to the panels hold the correct spacing of the tubes and secure the best surface contact between the tube and the panel.The painting complys to the European Standard 76/769/EEC. Class of reaction to fire: A1 Emission of the radiant surface: > 3 Thermal resistance: 0,81 m > 2 K/W >

Characteristic curves of the product taken from tests carried out as per the EN 14037 standard: > n Q = emission W/mK = heating coefficient of the unit = 3,28086 W/m ∆ Tm = difference between the mean water temperature and the room temperaturen = heating exponent of the unit = 1,1536 The emission of the Sabiana Pulsar radiant panels have been certified by the laboratory at the University of Stuttgart H.L.K. applying the harmonised European Standard EN 14037, with the report number DC205 D12.2108In accordance to part 2 of the standard, the K coefficient is equal to the above one divided by...

TRAIGHT FLEXIBLE PIPE > OR CONNECTIONS LONGER THAN TO >
