Product catalog summary
Overview: The Elegant Sabiana air conditioners are designed for economical heating and cooling of small to medium-sized spaces such as shops, showrooms, workshops, and supermarkets. The product line includes 15 models: 10 RE models for heating only and 5 PE models for both heating and cooling. All units are ceiling-mounted and utilize hot/chilled water supply.
Specifications: Each unit is equipped with a 3-speed motor, with optional motors featuring integrated electronic circuits for air flow control from 0 to 100%. Air intake occurs from the bottom, and air is distributed through four lateral grids with adjustable louvres. Connection to the battery can be made from the top or side, depending on the installation setup. The PE models include an electronically controlled micro-pump for condensate drainage.
Control and Installation: Various remote controls are available for air flow and temperature management, allowing control of up to 10 units with a single remote. The units are designed for easy installation and do not require ducting, preserving wall space.
Technical Characteristics: The air conditioners operate at a maximum working pressure of 10 bar, with standard rating conditions including a battery test pressure of 22 bar, air temperature of +20°C, and water temperature of +70/60°C for heating and +7/12°C for cooling.
Dimensions and Weight: The document provides detailed dimensions, weight, and water content for each model, with variations depending on the model type (RE or PE).
Optional Accessories: Available accessories include various control options, a fan motor with 0/100% speed control, cover panels, hanging brackets, a condensate alarm sensor, and a 3-way valve with connection kit.
Additional Information: Sabiana reserves the right to make changes to the product specifications for improvement or other requirements without prior notice.
See more

Catalog excerpts

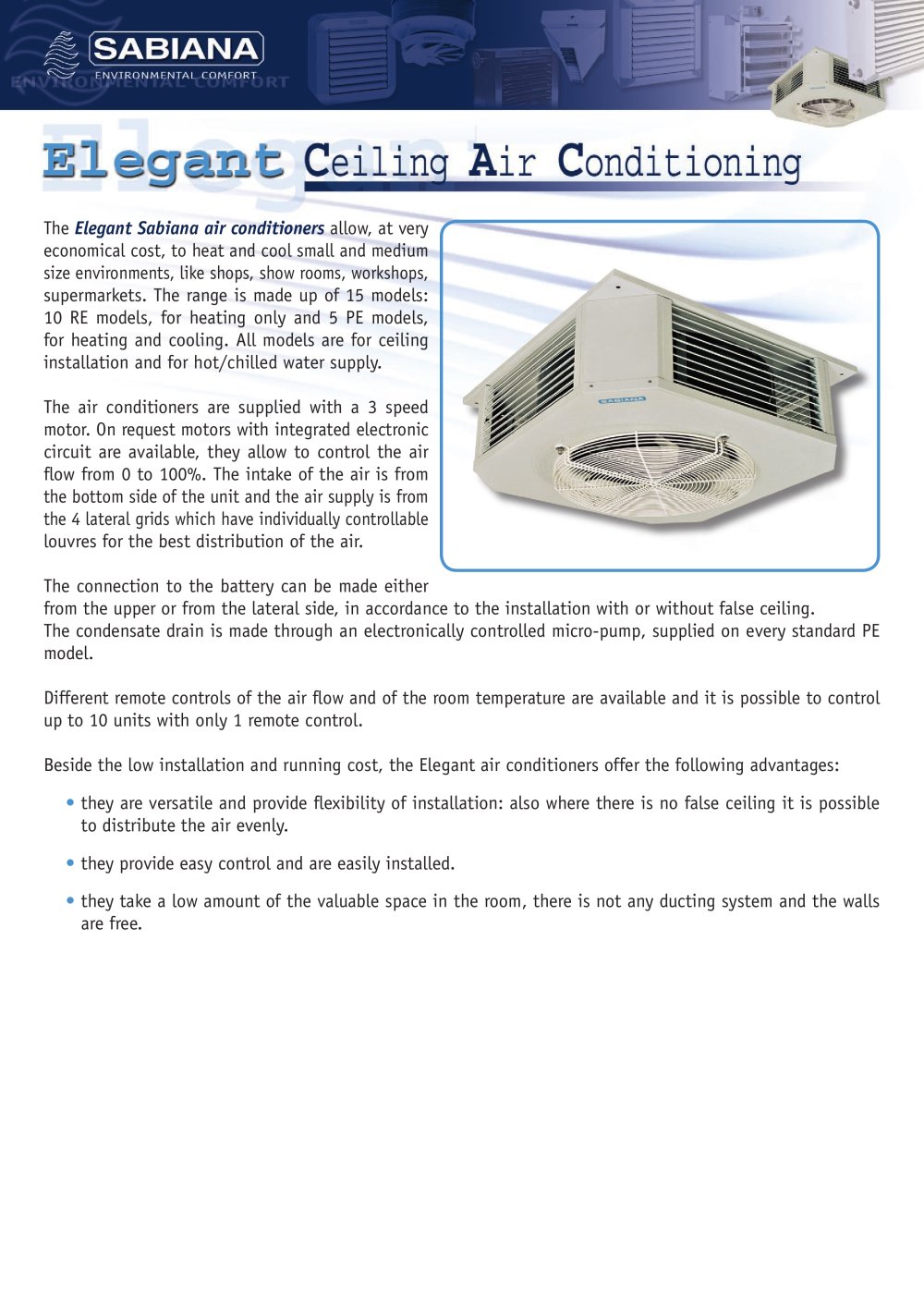

ELEGANT-1

The Elegant Sabiana air conditioners allow, at very economical cost, to heat and cool small and medium size environments, like shops, show rooms, workshops, supermarkets. The range is made up of 15 models:10 RE models, for heating only and 5 PE models, for heating and cooling. All models are for ceiling installation and for hot/chilled water supply.The air conditioners are supplied with a 3 speed motor. On request motors with integrated electronic circuit are available, they allow to control the airflow from 0 to 100%. The intake of the air is from the bottom side of the unit and the air supply is from the 4 lateral grids which have individually controllable louvres for the best distribution of the air.The connection to the battery can be made eitherfrom the upper or from the lateral side, in accordance to the installation with or without false ceiling. The condensate drain is made through an electronically controlled micro-pump, supplied on every standard PE model. Different remote controls of the air flow and of the room temperature are available and it is possible to control up to 10 units with only 1 remote control.Beside the low installation and running cost, the Elegant air conditioners offer the following advantages: they are versatile and provide flexibility of installation: also where there is no false ceiling it is possible to distribute the air evenly. Օ they provide easy control and are easily installed. they take a low amount of the valuable space in the room, there is not any ducting system and the walls are free. >

 Open the catalog to page 1
ELEGANT-4

MO - 3V controlwith ON-OFF switch and 3 speed switch without thermostatic control. > TMO - T control with ON-OFF switch,3 speed switch and summer / winter switch.Electronic room thermostatfor fan or valves control (ON-OFF). > TMO - T - AU control with electronic thermostat with ON-OFF switch, 3 speed switch and summer / winter switch. Electronic room thermostat for fan or valves control (ON-OFF). LCD technology. > TMO - DI control with electronic thermostatwith ON-OFF switch, 3 speed switch or automaticspeed selection and summer / winter switch.Electronic room thermostat for fan or valves control...

 Open the catalog to page 4
