DUCK STRIP
12Pages

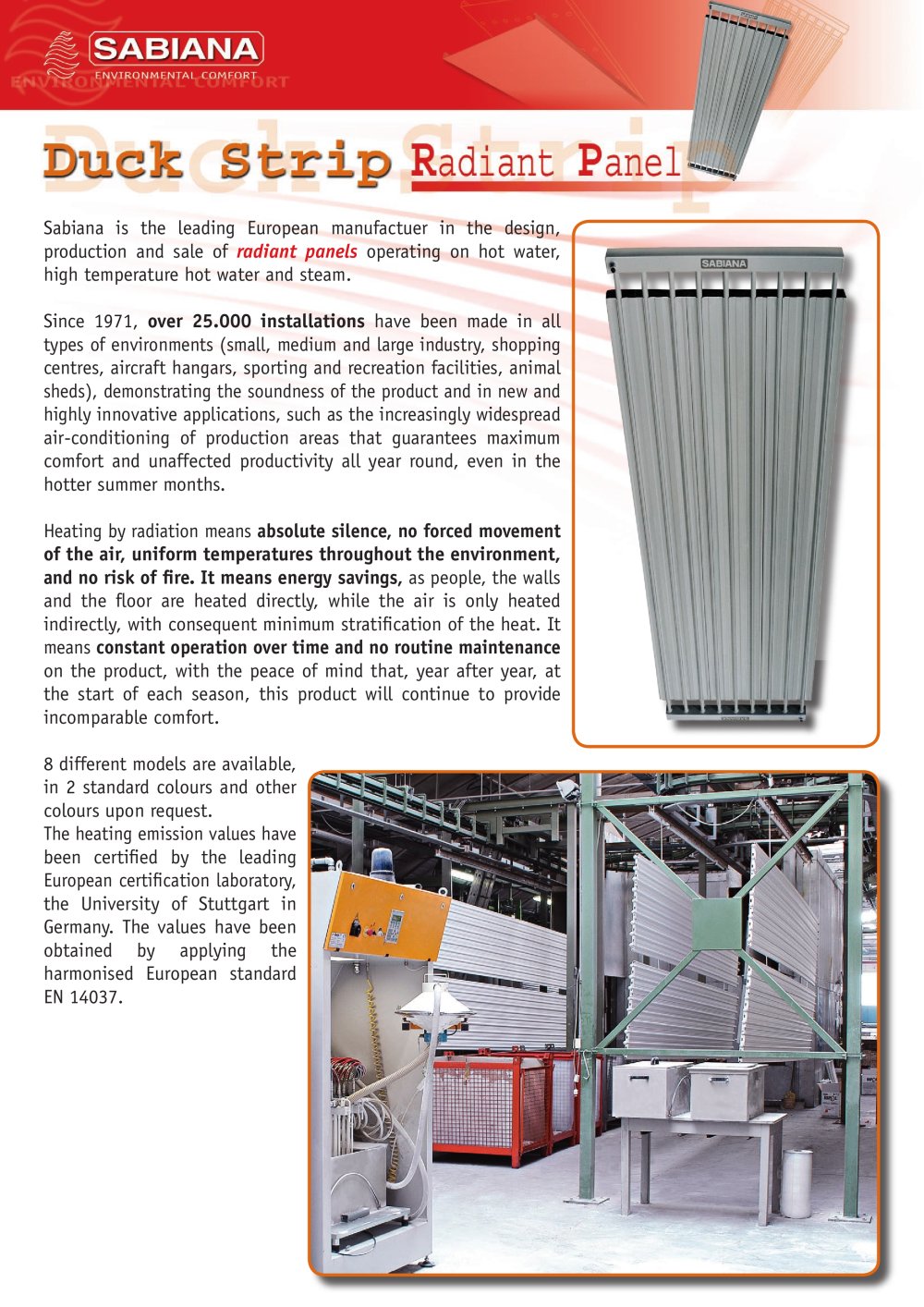

Sabiana is the leading European manufactuer in the design, production and sale of radiant panels operating on hot water, high temperature hot water and steam. Since 1971, over 25.000 installations have been made in all types of environments (small, medium and large industry, shopping centres, aircraft hangars, sporting and recreation facilities, animal sheds), demonstrating the soundness of the product and in new and highly innovative applications, such as the increasingly widespread air-conditioning of production areas that guarantees maximum comfort and unaffected productivity all year round, even in the hotter summer months. Heating by radiation means absolute silence, no forced movement of the air, uniform temperatures throughout the environment, and no risk of fire. It means energy savings, as people, the walls and the floor are heated directly, while the air is only heated indirectly, with consequent minimum stratification of the heat. It means constant operation over time and no routine maintenance on the product, with the peace of mind that, year after year, at the start of each season, this product will continue to provide incomparable comfort. 8 different models are available, in 2 standard colours and other colours upon request. The heating emission values have been certified by the leading European certification laboratory, the University of Stuttgart in Germany. The values have been obtained by applying the harmonised European standard EN 14037. > 01 - DUCK STRIP.indd 1 26-06-2008 16:15:02 size="-1">

General construction of a panel 1 − Threaded male connection ( 1/2ؔ - 3/4 - 1Ԕ - 1.1/4) 2 ԢȒ Water drain connection 3/8ؔ 3 − Air vent connection 3/8ؔ 4 − First or end header 5 − Steel pipe 1/2ؔ 6 − Steel radiant panel 7 − Hanging bracket 8 − Insulation 9 − Side edging strip 10 − Insulation retaining clip 11 − Anti-convective side skirts (upon request) 12 − Skirt hook 13 − Belled end for welding 14 − Make-up joint 15 − Make-up joint between panel and header (upon request) > 01 - DUCK STRIP.indd 2 26-06-2008 16:10:33 size="-2">

Radiant panels made up of: Quality steel radiant panel, 0.8 mm thick, cold formed by mechanical forming procedure. Into the panels, width 300-600-900-1200 mm and length 6 and 4m (3 and 5m upon request), are formed semicircular self- locking sockets, spaced 100 or 150mm apart, depending on the models and used to hold the pipes that carry the hot water. Օ Steel pipes pressed into the semicircular sockets on the panel. Standard version: panels fitted with 1.5mm thick pipes, outside diameter 1/2, made by electric welding from high-quality cold rolled steel strips. The pipes are electronically...

Modular widths Model DS3 - 1/2ؔ pipes spaced 100 mm. apart Model DS2 - 1/2ؔ pipes spaced 150 mm. apart > 01 - DUCK STRIP.indd 4 26-06-2008 16:10:36 size="-1">

Totale length (m) Composition > First section Intermediate section Final section >

MODEL Rated emission ( * ) MODEL Rated emission ( * ) DS2-03 162 W > / m DS3-03 194 W > / m DS2-06 289 W > / m DS3-06 345 W > / m DS2-09 406 W > / m DS3-09 501 W > / m DS2-12 543 W > / m DS3-12 639 W > / m (*) ∆ tm = 55 K >

Thickness 30 mm 40 mm 50 mm Thermal conductivity according to UNI CTI 7745 and UNI FA 112 0,037 W/mk 0,035 W/mk 0,037 W/mk Density 14 kg/m > 3 25 kg/m > 3 14 kg/m > 3 Resistance 0,81 m > 2 K/W 1,14 m > 2 K/W 1,35 m > 2 K/W >

The descriptions and illustrations provided in this publication are not binding: Sabiana reserves the right, whilst maintaining the essential characteristics of the types described and illustrated, to make, at any time, without the requirement to promptly update this piece of literature, any changes that it considers useful for the purpose of improvement or for any other manufacturing or commercial requirements. > A/26-06-2008 DUCK STRIP Cod. A4800100E 01 - DUCK STRIP.indd 12 26-06-2008 16:10:59 size="-1">
