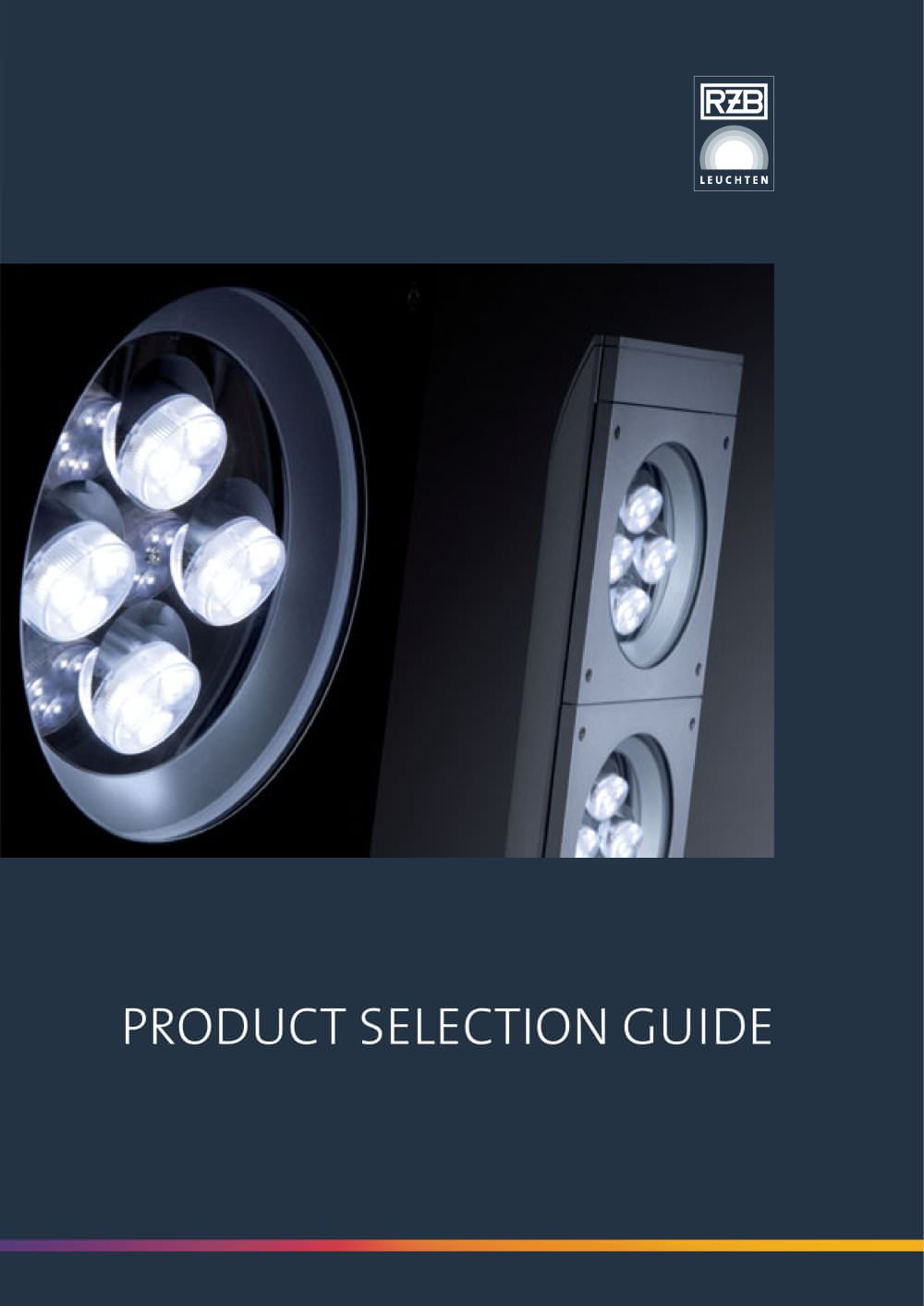

ProductSelectionGuide
644Pages

INDOOR LIGHTING 12 - 241 OUTDOOR LIGHTING 242 - 409 WORKPLACE LUMINAIRES 410 - 423 LUMINAIRE SIGNS 424 - 447 EMERGENCY LIGHTING 448 - 605 APPENDIX 606 - 641 Service 608 - 615 Lamps Conditions of sale and delivery Catalogue number index 620 Index 636 - 639 Contacts 641 This illustrated catalogue 2009 provides an overview of RZB's range of luminaires. It is designed to facilitate easy navigation to the desired product. RZB products may only be modified by us. Our luminaires are technical work aids and may only be used for the purpose specified by us. If products are improperly used or...

New products Recessed projectors ^^^H 1 1 150 150 151 151 152 152 153 154 - 157

"I have the simplest tastes -1 am always satisfied with the best." Oscar Wilde Design to match function Our products are designed in line with our inno-vative technology. State of the art architecture requires luminaires that enhance the property from both a technical and design perspective. Our products, which stem from our own ideas and are realised by our creative designers, are more than capable of meeting this challenge. We are delighted to be able to present our new range of architecturally sophisticated luminaires. 10

Uwe Fischer Lightwalker sries 400 - 403 400 - 403 400 - 403 398 Hartmut S. Engel Plania, Mondana, Quadrana, Slopia series DESIGNer for RZB RZB is proud to prsent a wide range of new products that really stand out, from designers such as Uwe Fischer, Hartmut S. Engel, Sieger Design and jps+. Even though the assignments may differ, our cooperation with designers is always based on RZB's fundamental understanding of design and function. 15 45 sieger design Light Modules series 35 35 36 94 jps+ jonas planning services id entity projector system 163 11

INDOOR LIGHTING | RECESSED CEILING AND WALL LUMINAIRES RZB Product image Catalogue number Dimensions Lamp/Wattage Object image Recessed ceiling and wall luminaires | Series: Mondana-E 350 Opal glass Type of protection: IP 65 Protection class: I Protection class: II UGR value: < 19 Ceiling/wall thickness: 10-30 mm Base: polycarbonate (PC), microtexture finish. Opal glass: mouth blown, satin finish. Glass fastening: threaded screw. Housing for recessed wall and ceiling installation: aluminium, powder-coated, saltwater-proof. Standard Gore Protective diaphragm gasket for reducing condensation....

RZB INDOOR LIGHTING | RECESSED CEILING AND WALL LUMINAIRES Object image Catalogue number Dimensions Lamp/Wattage Product image Recessed ceiling and wall luminaires | Sries: Mondana-E PE Type of protection: IP 65 Protection class: I Protection class: II UGR value: < 19 Ceiling/wall thickness: 10-30 mm Base: polycarbonate (PC), microtexture finish. Diffuser: plastic (PE), opal, satin finish. Glass fastening: threaded screw. Housing for recessed wall and ceiling installation: aluminium, powder-coated, saltwater-proof. Standard Gore Protective diaphragm gasket for reducing condensation....

INDOOR LIGHTING | RECESSED CEILING AND WALL LUMINAIRES RZB Product image Catalogue number Dimensions Lamp/Wattage Object image Semi-recessed ceiling and wall luminaires | Sries: Mondana-HE Opal glass Type of protection: IP 65 Protection class: I Protection class: II UGR value: < 19 Ceiling/wall thickness: 10-30 mm Base: polycarbonate (PC), microtexture finish. Opal glass: mouth blown, satin finish. Glass fastening: threaded screw. Semi-recessed housing for wall and ceiling installation: aluminium, powder-coated, saltwater-proof. Standard Gore Protective diaphragm gasket for reducing...

RZB INDOOR LIGHTING | RECESSED CEILING AND WALL LUMINAIRES Object image Catalogue number Dimensions Lamp/Wattage Product image Semi-recessed ceiling and wall luminaires | Sries: Mondana-HE PE Type of protection: IP 65 Protection class: I Protection class: II UGR value: < 19 Ceiling/wall thickness: 10-30 mm Base: polycarbonate (PC), microtexture finish. Diffuser: plastic (PE), opal, satin finish. Glass fastening: threaded screw. Semi-recessed housing for wall and ceiling installation: aluminium, powder-coated, saltwater-proof. Standard Gore Protective diaphragm gasket for reducing...

INDOOR LIGHTING | RECESSED CEILING AND WALL LUMINAIRES RZB Product image Catalogue number Dimensions Lamp/Wattage Object image Recessed wall luminaires | Sries: LED orientation lights Type of protection: IP 40 (IP 44 in connection with commercially available seals) Protection class: I Voltage: 100 - 250 V / 0/50-60 Hz Housing: sheet steel, powder-coated. Front panel: stain-less steel, matt finish. Cover: plastic (PMMA), transparent. LED module for recessed installation or installation in hollow walls or concrete, inner diameter 70 mm, from Kaiser, LED tilted 30°, with electronic...

RZB INDOOR LIGHTING | RECESSED CEILING AND WALL LUMINAIRES Object image Catalogue number Dimensions Lamp/Wattage Product image Recessed wall luminaires | Sries: Brick® stainless steel 120 Type of protection: IP 67 Protection class: I Housing: die-cast aluminium, powder-coated, with installation housing: plastic. Cover frame: stainless steel. Safety glass: frosted inside. Reflector: aluminium. Cable screw fitting: M16 with rubber cable. Available colour: 0 = stainless steel Recessed wall luminaires TE + h TT DAC Recess opening: DA 110 mm, TE 100 mm 581464.000 H 7, D 120 QT9 (axial) 20 W ** /...

INDOOR LIGHTING | RECESSED CEILING AND WALL LUMINAIRES RZB Product image Catalogue number Dimensions Lamp/Wattage Object image Recessed ceiling and wall luminaires | Sries: Quadrana Light Space Type of protection: IP 65 Protection class: I Ceiling/wall thickness: 10-30 mm Base: die-cast aluminium, powder-coated. Diffuser: plastic (PMMA), two-piece. Front frame: stainless steel, brushed. Diffuser fastening: toggles. Installation housing for installation in cavity walls and ceilings. With 16 LEDs and electronic constant current supply. Standard GoreTM Protective diaphragm gasket. Available...

INDOOR LIGHTING | RECESSED CEILING AND WALL LUMINAIRES Object image Catalogue number Dimensions Lamp/Wattage Product image Recessed ceiling luminaires | Sries: Egeo Type of protection: IP 20 Protection class: I Ceiling thickness: 1-75 mm Housing: metal. Dual parabolic reflector: metal. Perforated metal louvre. With EB Available with dimmable EB on request Available colour: 20 = white Recessed ceiling luminaires for grid ceilings 600 mm x 600 mm Recess opening: 580 mm x 580 mm, TE 47 mm 76.1005.20 L 592, B 592, H 122 76.1007.20 L 592, B 592, H 122 for grid ceilings 625 x 625 mm Recess...
