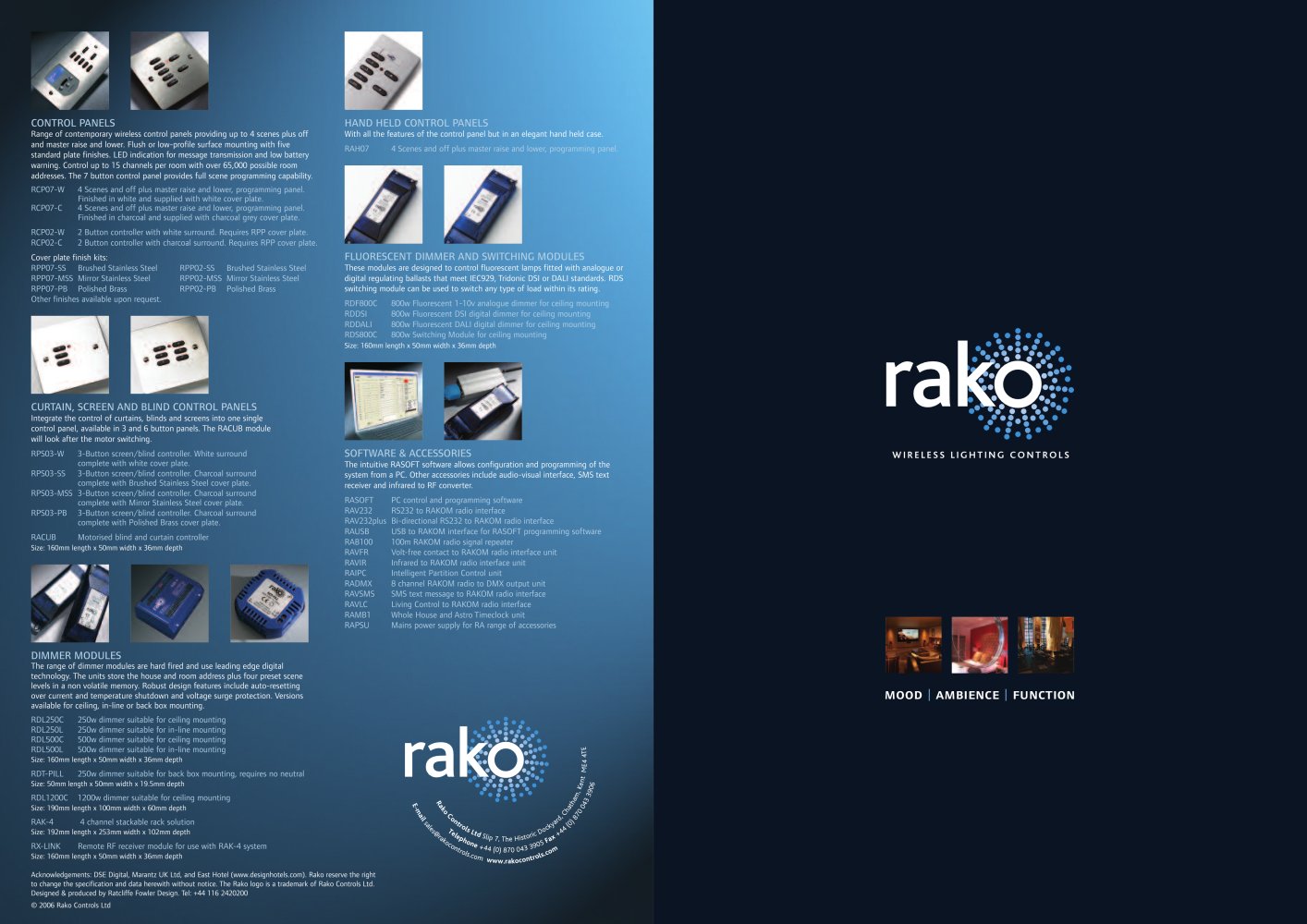

Rako A4 Brochure
1 / 2Pages

Range of contemporary wireless control panels providing up to 4 scenes plus offand master raise and lower. Flush or low-profile surface mounting with five standard plate finishes. LED indication for message transmission and low battery warning. Control up to 15 channels per room with over 65,000 possible room addresses. The 7 button control panel provides full scene programming capability. RCP07-W 4 Scenes and off plus master raise and lower, programming panel.Finished in white and supplied with white cover plate.RCP07-C 4 Scenes and off plus master raise and lower, programming panel.Finished in charcoal and supplied with charcoal grey cover plate.RCP02-W 2 Button controller with white surround. Requires RPP cover plate. RCP02-C 2 Button controller with charcoal surround. Requires RPP cover plate.Cover plate finish kits: RPP07-SS Brushed Stainless Steel RPP02-SSBrushed Stainless Steel RPP07-MSSMirror Stainless SteelRPP02-MSSMirror Stainless Steel RPP07-PB Polished BrassRPP02-PB Polished Brass Other finishes available upon request. With all the features of the control panel but in an elegant hand held case. RAH07 4 Scenes and off plus master raise and lower, programming panel. > These modules are designed to control fluorescent lamps fitted with analogue or digital regulating ballasts that meet IEC929, Tridonic DSI or DALI standards. RDS switching module can be used to switch any type of load within its rating.RDF800C800w Fluorescent 1-10v analogue dimmer for ceiling mountingRDDSI 800w Fluorescent DSI digital dimmer for ceiling mounting RDDALI 800w Fluorescent DALI digital dimmer for ceiling mounting RDS800C 800w Switching Module for ceiling mounting > Size: 160mm length x 50mm width x 36mm depth Integrate the control of curtains, blinds and screens into one single control panel, available in 3 and 6 button panels. The RACUB module will look after the motor switching. RPS03-W 3-Button screen/blind controller. White surround complete with white cover plate.RPS03-SS3-Button screen/blind controller. Charcoal surroundcomplete with Brushed Stainless Steel cover plate.RPS03-MSS3-Button screen/blind controller.Charcoal surroundcomplete with Mirror Stainless Steel cover plate.RPS03-PB3-Button screen/blind controller.Charcoal surroundcomplete with Polished Brass cover plate.RACUBMotorised blind and curtain controller > The intuitive RASOFT softwareallows configuration and programming of thesystem from a PC. Other accessories include audio-visual interface, SMS text receiver and infrared to RF converter.RASOFT PC control and programming softwareRAV232 RS232 to RAKOM radio interface RAV232plus Bi-directional RS232 to RAKOM radio interface RAUSBUSB to RAKOM interface for RASOFT programming software RAB100 100m RAKOM radio signal repeater RAVFR Volt-free contact to RAKOM radio interface unit RAVIR Infrared to RAKOM radio interface unit RAIPC Intelligent Partition Control unit RADMX8 channel RAKOM radio to DMX output unit RAVSMS SMS text message to RAKOM radio interface RAVLCLiving Control to RAKOM radio interface RAMB1Whole House and Astro Timeclock unit RAPSU Mains power supply for RA range of accessories > Size: 160mm length x 50mm width x 36mm depth The range of dimmer modules are hard fired and use leading edge digitaltechnology. The units store the house and room address plus four preset scene levels in a non volatile memory. Robust design features include auto-resetting over current and temperature shutdown and voltage surge protection. Versions available for ceiling, in-line or back box mounting.RDL250C 250w dimmer suitable for ceiling mountingRDL250L 250w dimmer suitable for in-line mounting RDL500C 500w dimmer suitable for ceiling mounting RDL500L 500w dimmer suitable for in-line mounting > E E T T Size: 160mm length x 50mm width x 36mm depth 4 4 4 4 E E RDT-PILL 250w dimmer suitable for back box mounting, requires no neutral > M M t t Size: 50mm length x 50mm width x 19.5mm depth n n e e 6 6 K K , , 9 9 RDL1200C 1200w dimmer suitable for ceiling mounting > m m 3 3 E E R R a a 3 3 Size: 190mm length x 100mm width x 60mm depth - - a a t h h m m k k 4 4 a t o o a a h a RAK-44channel stackable rack solution > i i C C C h l l 7 s s o o , C 8 7 a a n n r d , ) 8 l l t t a d Size: 192mm length x 253mm width x 102mm depth e e r r y r ) s s @ @ 4 ( ( T T o o k a r r e e l l s s 4 4 a a l l o c k y k k e e L L + 4 RX-LINK Remote RF receiver module for use with RAK-4 system > o o p p t t D c d d x + c c h h i c o S S o o o o l l i i t o r D p p F a x n n n n 7 7 , , 5 a t t e e T T h h e e H H i i s s t o r i c r r 9 F Size: 160mm length x 50mm width x 36mm depthAcknowledgements: DSE Digital, Marantz UK Ltd, and East Hotel (www.designhotels.com). Rako reserve the righttochange the specification and data herewith without notice. The Rako logo is a trademark of Rako Controls Ltd.Designed & produced by Ratcliffe Fowler Design. Tel: +44 116 24202002006 RakoControls Ltd o o + + 4 4 l l s s 4 4 3 3 5 . . ( ( s . c o m m c c ) ) 4 8 8 7 7 4 3 3 9 o o o l o m m t r . c w w o n s w w o c l w w . . r r a a k k o c o n t r o size="-2">

Rako modules simply wire in-line with the lighting circuit and can either be located in ceiling voids and fitted through a standard down-light cut out, or wired in-line and plugged into your nearest socket. > CUSTOMISED CONTROL PANELS Double gang control panels providing the capability for both lighting and curtain/blind or screen control on one panel. Special finishes available upon request. > LOAD TYPES Rakohas a dimmer to suit all load types including incandescent, low voltage, LEDs, colour changers, cold cathode, fluorescent and non-dimmed loads. MASTER CONTROL For ultimate simplicity...
