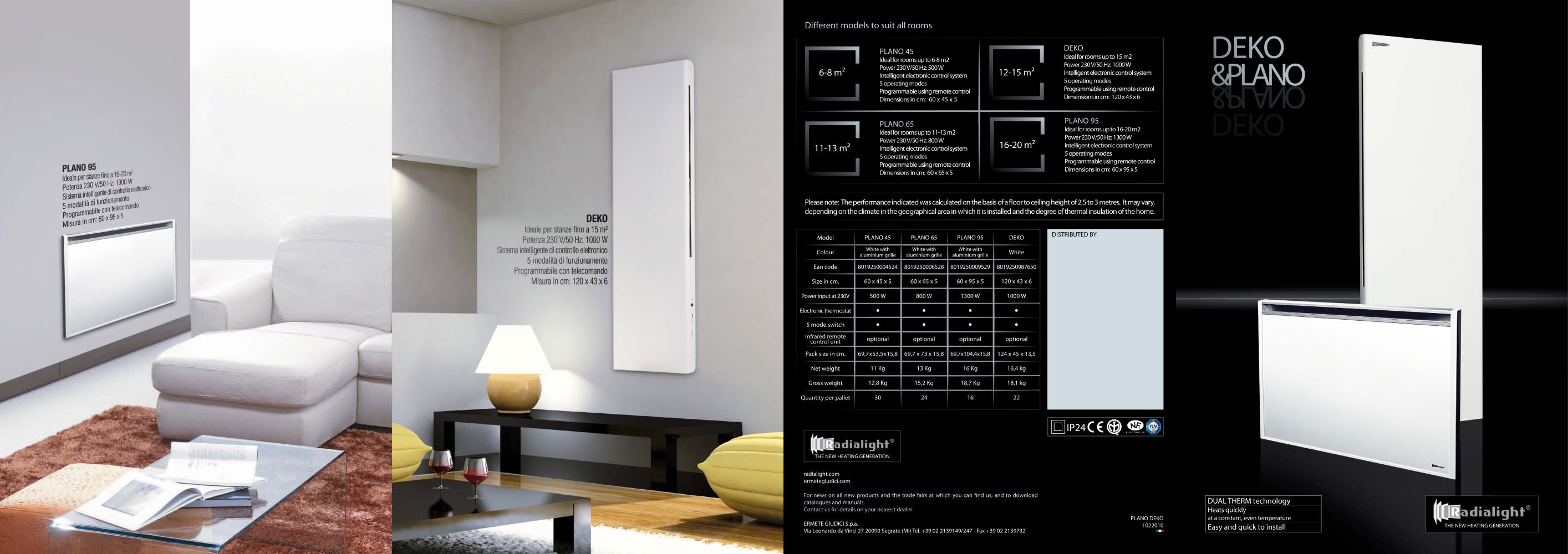

Catalogue 2010 Radialight PLANO and DEKO electric radiators
2Pages

Model PLANO 45 PLANO 65 PLANO 95 DEKO Colour White with aluminium grille White with aluminium grille White with aluminium grille White Ean code 8019250004524 8019250006528 8019250009529 8019250987650 Size in cm. 60 x 45 x 5 60 x 65 x 5 60 x 95 x 5 120 x 43 x 6 Power input at 230V 500 W 800 W 1300 W 1000 W Electronic thermostat œ œ œ œ 5 mode switch œ œ œ œ Infrared remote control unit optional optional optional optional Pack size in cm. 69,7 x 53,5 x 15,8 69,7 x 73 x 15,8 69,7 x 104,4 x 15,8 124 x 45 x 13,5 Net weight 11 Kg 13 Kg 16 Kg 16,4 kg Gross weight 12,8 Kg 15,2 Kg 18,7 Kg 18,1 kg Quantity per pallet 30 24 16 22 Different models to suit all rooms Please note: The performance indicated was calculated on the basis of a floor to ceiling height of 2,5 to 3 metres. It may vary, depending on the climate in the geographical area in which it is installed and the degree of thermal insulation of the home. PLANO 45 Ideal for rooms up to 6-8 m2 Power 230 V/50 Hz: 500 W Intelligent electronic control system 5 operating modes Programmable using remote control Dimensions in cm: 60 x 45 x 5 DEKO Ideal for rooms up to 15 m2 Power 230 V/50 Hz: 1000 W Intelligent electronic control system 5 operating modes Programmable using remote control Dimensions in cm: 120 x 43 x 6 PLANO 65 Ideal for rooms up to 11-13 m2 Power 230 V/50 Hz: 800 W Intelligent electronic control system 5 operating modes Programmable using remote control Dimensions in cm: 60 x 65 x 5 PLANO 95 Ideal for rooms up to 16-20 m2 Power 230 V/50 Hz: 1300 W Intelligent electronic control system 5 operating modes Programmable using remote control Dimensions in cm: 60 x 95 x 5 6-8 m² 12-15 m² 11-13 m² 16-20 m² DISTRIBUTED BY radialight.com ermetegiudici.com For news on all new products and the trade fairs at which you can find us, and to download catalogues and manuals. Contact us for details on your nearest dealer ERMETE GIUDICI S.p.a. Via Leonardo da Vinci 27 20090 Segrate (Mi) Tel. +39 02 2139149/247 - Fax +39 02 2139732 The new heating generation IP24 É L E C T R I C I T É Deko Deko &plano &plano PLANO DEKO I 022010 DUAL THERM technology Heats quickly at a constant, even temperature Easy and quick to install The new heating generation

HOW Plano & Deko WORK They are fitted with a multi-function electronic control system that allows precise comfort settings for each room. This makes it a tailor-made heating system that can meet any heating need in a single room or various areas of the home. X Antigelo: in case of prolonged absence the temperature in the room does not drop below 7°C (+/- 3°C) „i The unit is in PROGRAM mode that has a weekly program that is only available via the Zefiro infrared remote control (optional extra) Comfort: when you want the comfort level in the room to correspond to the thermostat setting...
