Product catalog summary
Overview: The document describes the features and specifications of the Pietro Berto fixed floor electric oven, designed for the bread baking industry. It combines modern technology with decades of experience.
Design and Construction: The oven features a front made entirely of 304 stainless steel with painted cast aluminum details, ensuring durability and a modern design. The oven mouth is also made of thick 304 stainless steel for longevity. The baking chamber doors open upwards and are balanced for ease of use.
Heating and Insulation: The baking chambers are heated by independent armoured heating elements located between the ceiling and floor, ensuring airtight construction and high heat insulation. The front section of the chamber is adjustable.
Vaporisation System: Each chamber has independent vaporisers with armoured heating elements, providing a high quantity of vapor throughout the chamber. The system includes vapor input and discharge mechanisms.
Electronic Control Panel: The control panel allows for power management, enabling operation at 50% or up to 100% capacity for rapid heating. It provides automatic temperature control, independent power distribution between ceiling and floor, and vapor control with display indicators. Baking time can be set with visual and audio alerts for cycle completion.
Optional Features: Additional vaporisers, an oven control card for automatic ignition and power management, and a bakery control device for power distribution are available. Heating elements and control panels can be positioned on the left side of the oven.
Compliance and Usage: The oven is built to comply with current safety, hygiene, and electrical standards. Unauthorized uses are prohibited.
Specifications: The document includes a detailed table of models with specifications such as the number of doors per chamber, baking surface area, external and chamber dimensions, weight, and electrical power requirements.
See more

Catalog excerpts

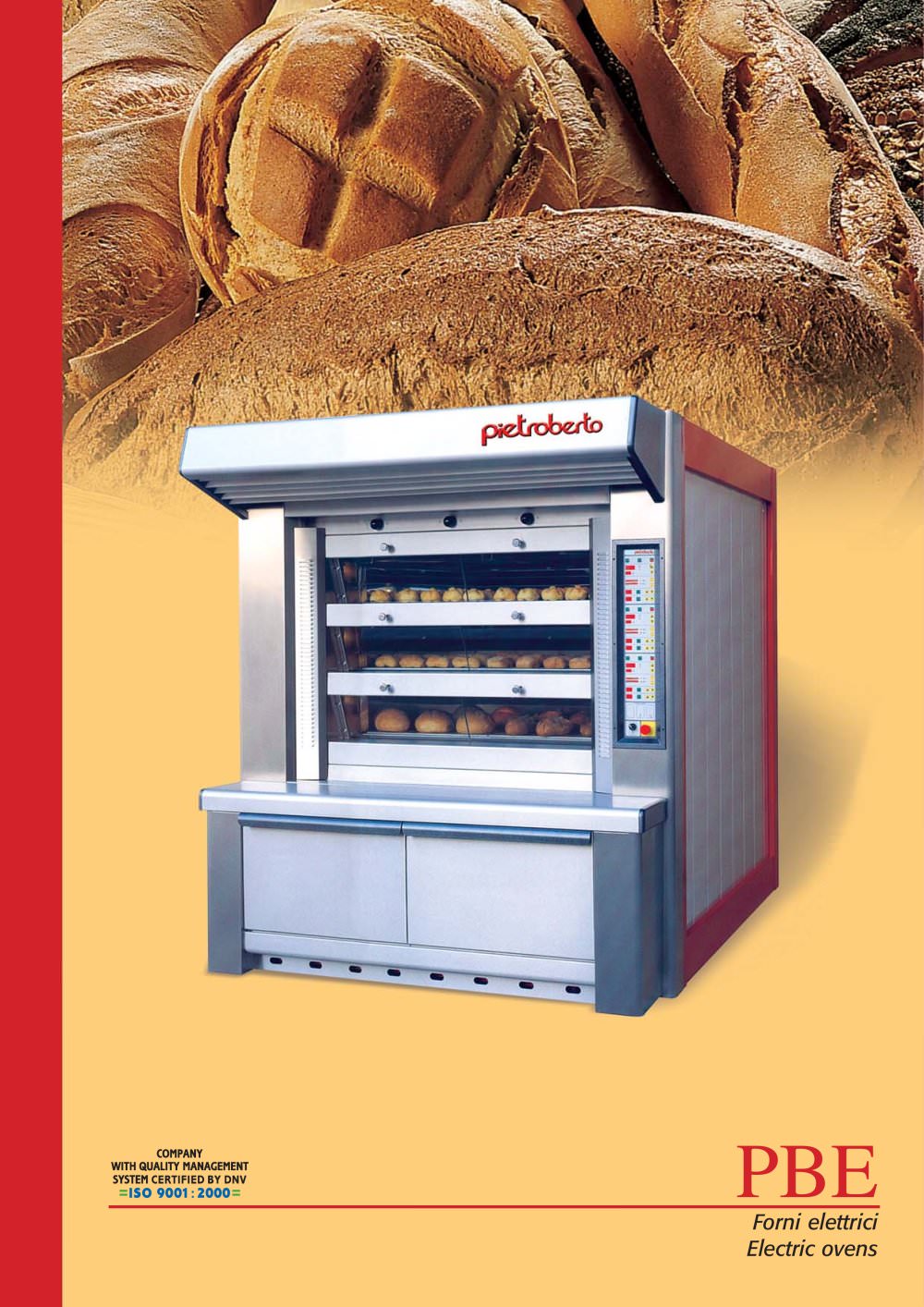

 PBE-1

Forni elettrici Electric ovens PBE

 Open the catalog to page 1
 PBE-2

Forno elettrico Electric Oven PBE Il nuovo forno elettrico Pietro Berto a platea fissa è il risultato di una ricerca che ha unito moderne tecnologie con esperienze decennali maturate nel campo della panificazione. La facciata del forno, costruita interamente in acciaio inox 304 e rifinita con tamponi in fusione di alluminio verniciati a fuoco, denota il moderno design e la cura nei particolari (1). L’avambocca è costruita interamente in acciaio inox 304 di grosso spessore per garantire un’elevata durata nel tempo. Gli sportelli delle camere di cottura sono bilanciati con l’apertura verso l’alto...

 Open the catalog to page 2
 PBE-3

Pannello di comando elettronico Electronic control panel ¡ Gestione della potenza: la centralina è dotata di serie di un dispositivo per il funzionamento del forno a circa il 50% della potenza totale delle resistenze, ma è possibile una gestione fino al 100% nel caso si voglia far riscaldare il forno o la camera in tempi ristretti. ¡ Distribuzione della potenza: consente una regolazione automatica della temperatura in modo da gestire la distribuzione del calore in ogni zona della camera di cottura. Infatti, la potenza delle resistenze è regolabile disgiuntamente tra cielo e platea e tra la zona...

 Open the catalog to page 3
