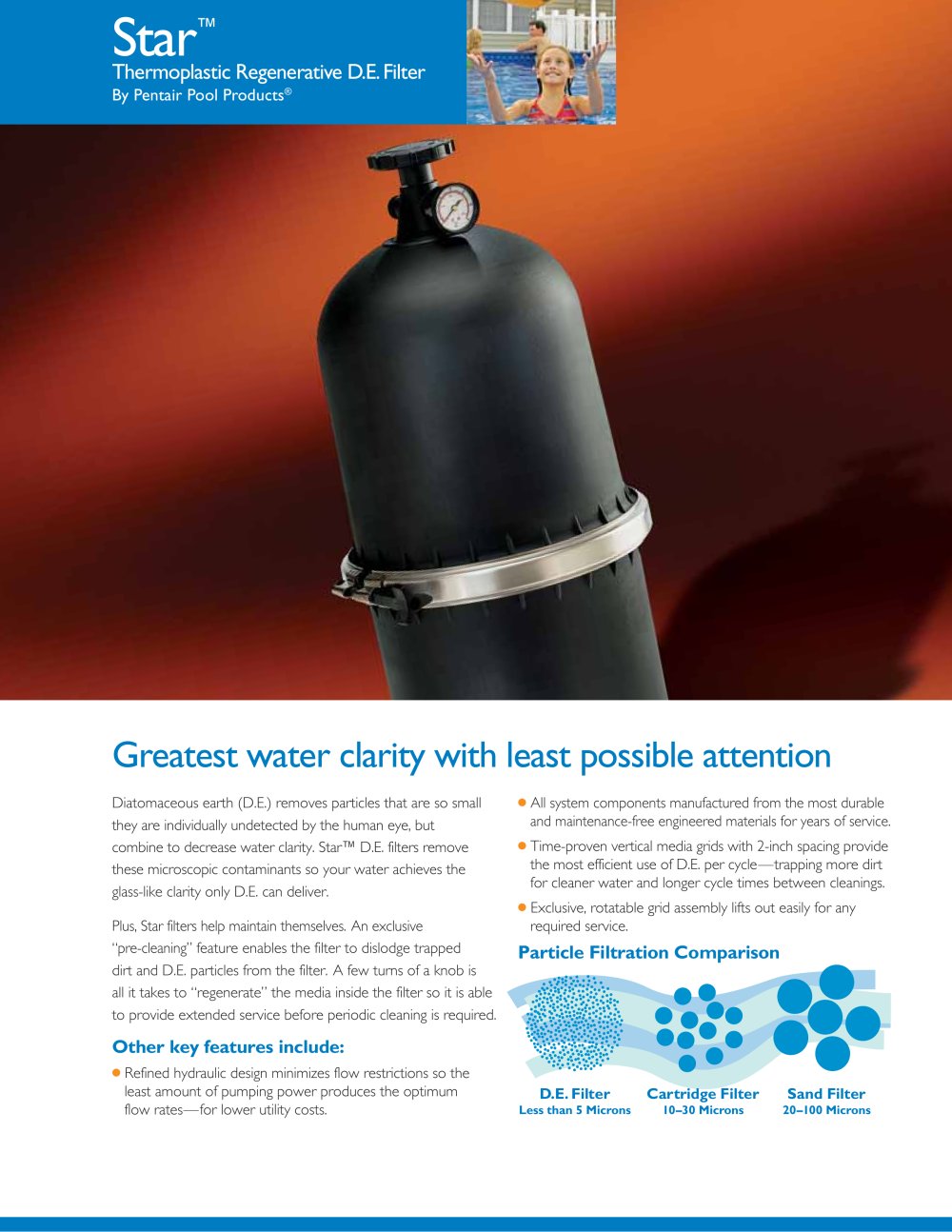

Diatomaceous earth (D.E.) removes particles that are so small they are individually undetected by the human eye, but combine to decrease water clarity. Star D.E. filters remove these microscopic contaminants so your water achieves the glass-like clarity only D.E. can deliver. > ٢׏ All system components manufactured from the most durable and maintenance-free engineered materials for years of service. > ● Time-proven vertical media grids with 2-inch spacing provide the most efficient use of D.E. per cycletrapping more dirt for cleaner water and longer cycle times between cleanings. > ע׏ Exclusive, rotatable grid assembly lifts out easily for any required service. Plus, Star filters help maintain themselves. An exclusive pre-cleaningӔ feature enables the filter to dislodge trapped dirt and D.E. particles from the filter. A few turns of a knob is all it takes to regenerateӔ the media inside the filter so it is able to provide extended service before periodic cleaning is required. > ● Refined hydraulic design minimizes flow restrictions so the least amount of pumping power produces the optimum flow ratesfor lower utility costs. D.E. Filter Cartridge Filter Sand Filter > Less than 5 Microns 10ז30 Microns 20100 Microns size="-1">

Open the catalog to page 1

Easy view pressure gaugeRotating knob allows quick and easy ٓbump and swish regeneration of filter to extend time between full cleanings Stainless steel clamp is easy off, easy on and lasts for years Tank is molded from advanced, corrosion-proof thermoplastic for strength and long life > Model Filter Vertical Filter D.E. Required Flow Rate Turnover Capacity (Gallons) Number Area Sq. Ft. Clearance* Diameter (Lbs.) GPM** 8hrs. 10hrs. 12hrs. ST 35 7.6 38" 12" 3 35 16,800 21,000 25,200 ST 50 11.4 50" 12" 4 50 24,000 30,000 36,000 ST 80 15.2 63" 12" 5 80 38,400 48,000 57,600 * Required clearance...
