SM & SMBW 2000 Series™ Filters

SM & SMBW 2000 Series™ Filters
2Pages

Catalog excerpts

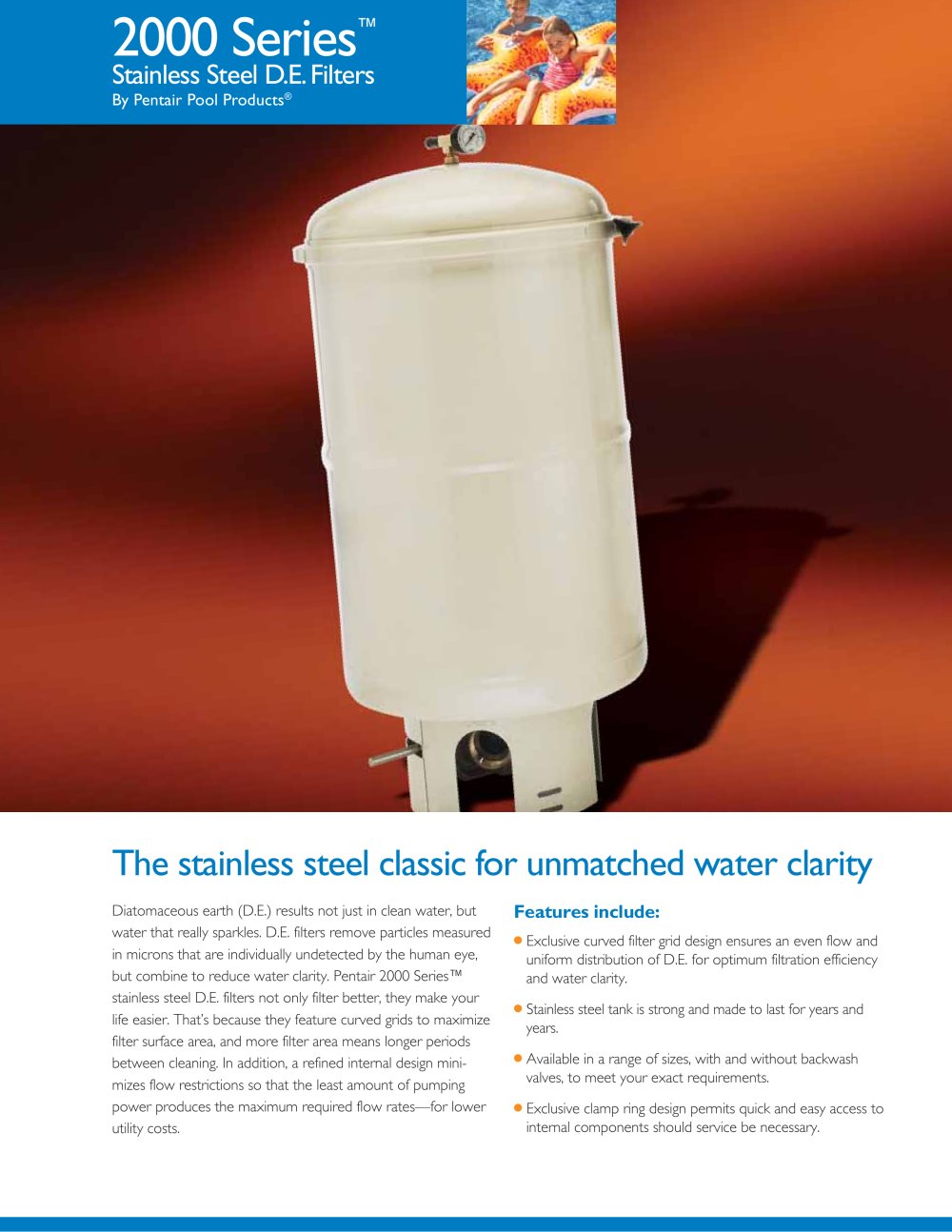

Diatomaceous earth (D.E.) results not just in clean water, but water that really sparkles. D.E. filters remove particles measured in microns that are individually undetected by the human eye, but combine to reduce water clarity. Pentair 2000 Series stainless steel D.E. filters not only filter better, they make your life easier. Thatْs because they feature curved grids to maximize filter surface area, and more filter area means longer periods between cleaning. In addition, a refined internal design mini- mizes flow restrictions so that the least amount of pumping power produces the maximum required flow ratesfor lower utility costs. > ע׏ Exclusive curved filter grid design ensures an even flow and uniform distribution of D.E. for optimum filtration efficiency and water clarity. > ● Stainless steel tank is strong and made to last for years and years. > ● Available in a range of sizes, with and without backwash valves, to meet your exact requirements. > ● Exclusive clamp ring design permits quick and easy access to internal components should service be necessary. >

Open the catalog to page 1

Exclusive clamp ring is safe, strong, reliable, and permits quick and easy access to internal componentsUnique Spiro-Mite grid design provides maximum surface area for high efficiency filtration and longer filter cycles2" plumbing connections for maximum flow, greater efficiency > Model Filter Vertical Filter D.E. Required Flow Rate Turnover Capacity-Res. (Gallons) Number Area Sq. Ft. Clearance* Diameter (Lbs.) (GPM)** 8hrs. 10hrs. 12hrs. SMBW 2036 ن 35 60" 20" 3.6 70 33,600 42,000 50,400 SMBW 2048 47 66" 20" 4.8 94 45,120 56,400 67,680 SMBW 2060 Ɔ 58 72" 20" 6.0 116 55,680 69,600 83,520...

Open the catalog to page 2
