Quad DE™ Filter

Quad DE™ Filter
2Pages

Catalog excerpts

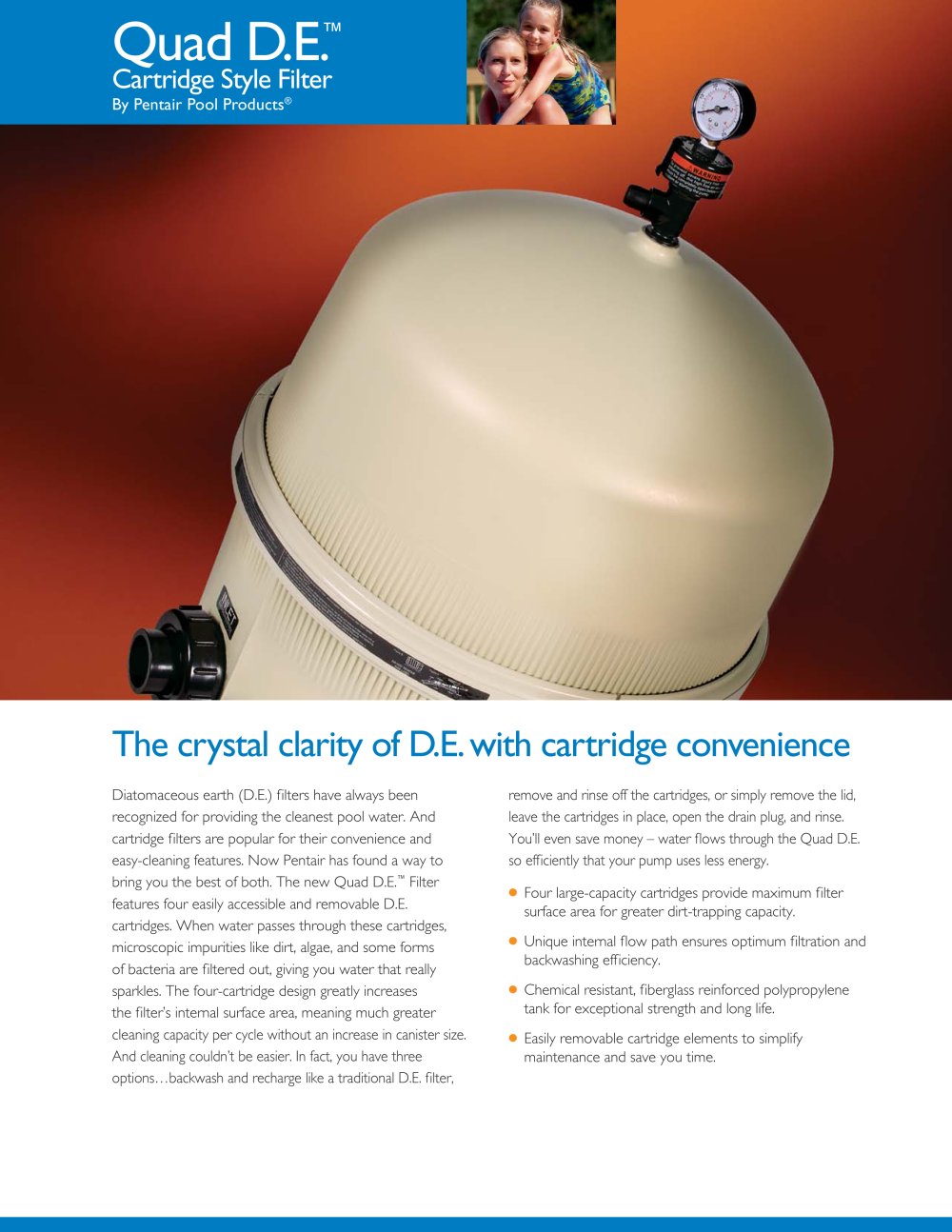

Diatomaceous earth (D.E.) filters have always been recognized for providing the cleanest pool water. And cartridge filters are popular for their convenience and easy-cleaning features. Now Pentair has found a way to bring you the best of both. The new Quad D.E. the cartridges in place, open the drain plug, and rinse. Youll even save money Җ water flows through the Quad D.E. so efficiently that your pump uses less energy. > Filter features four easily accessible and removable D.E. cartridges. When water passes through these cartridges, microscopic impurities like dirt, algae, and some forms of bacteria are filtered out, giving you water that really sparkles. The four-cartridge design greatly increases the filterْs internal surface area, meaning much greater cleaning > ● Four large-capacity cartridges provide maximum filter surface area for greater dirt-trapping capacity. > ● Unique internal flow path ensures optimum filtration and backwashing efficiency. > ● Chemical resistant, fiberglass reinforced polypropylene tank for exceptional strength and long life. capacity per cycle without an increase in canister size. And cleaning couldnt be easier. In fact, you have three options҅backwash and recharge like a traditional D.E. filter, remove and rinse off the cartridges, or simply remove the lid, leave > ● Easily removable cartridge elements to simplify maintenance and save you time. >

Open the catalog to page 1

Fiberglass reinforced polypropylene tank for long life ٖ will not corrode Tension Control clamp for secure closure2" plumbing connections for maximum flowConveniently located 2" drain for easy and efficient cleanout and 100% draining Model Filter Vertical Filter Flow Rate GPM Turnover Capacity (Gallons) Number Area Sq. Ft. Clearance* Diameter Res.*** Comm. 8 hours 10 hours 12 hours QUAD 60 > ** 60 62" 21.5" 120 120 57,600 72,000 86,400 QUAD 80 > ** 80 68" 21.5" 160 150 76,800 96,000 115,200 QUAD 100 > ** 100 74" 21.5" 160 150 76,800 96,000 115,200 > * Required clearance to remove filter...
