Nautilus® Plus Filters

Nautilus® Plus Filters
2Pages

Catalog excerpts

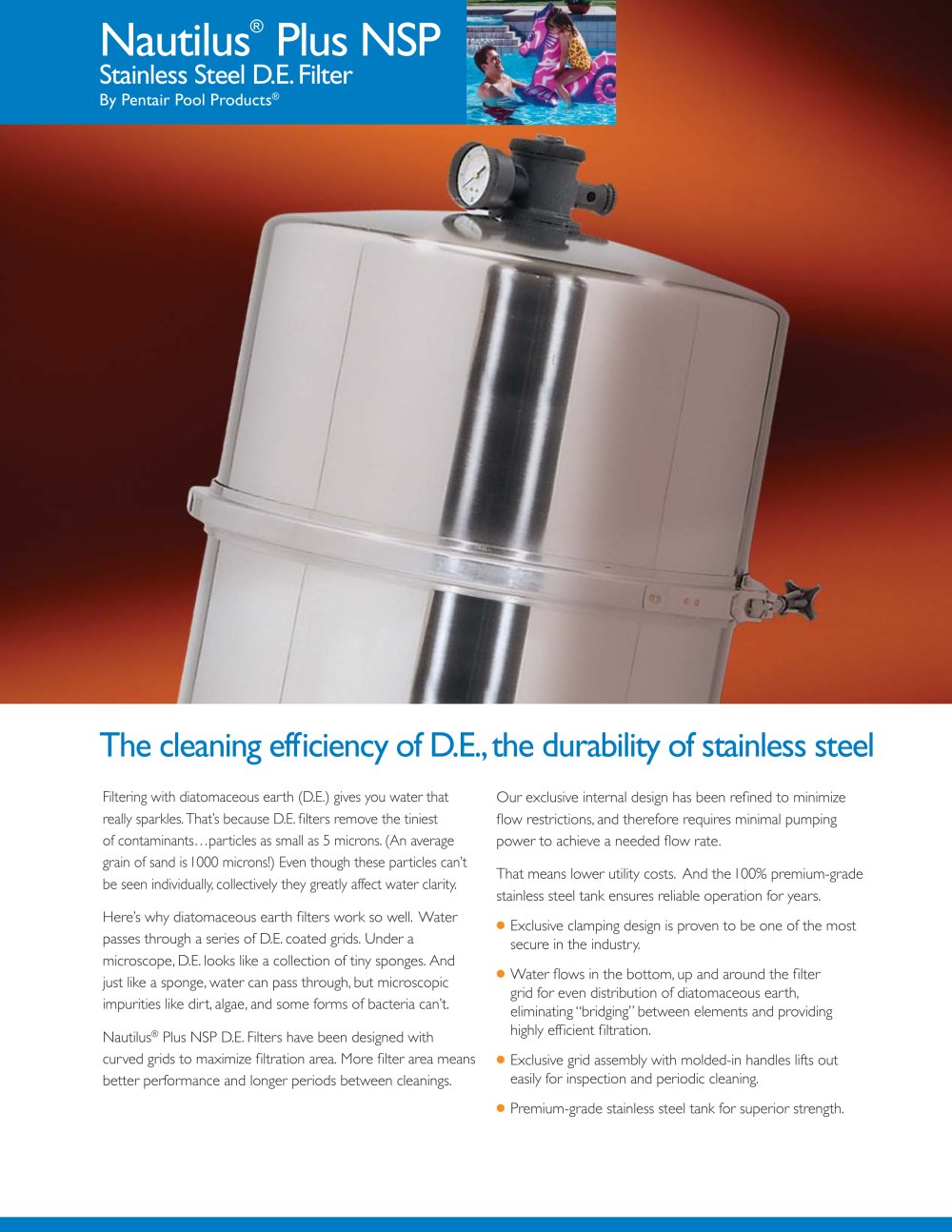

Filtering with diatomaceous earth (D.E.) gives you water that really sparkles. Thats because D.E. filters remove the tiniest of contaminants҅particles as small as 5 microns. (An average grain of sand is 1000 microns!) Even though these particles cant be seen individually, collectively they greatly affect water clarity. HereҒs why diatomaceous earth filters work so well. Water passes through a series of D.E. coated grids. Under a microscope, D.E. looks like a collection of tiny sponges. And just like a sponge, water can pass through, but microscopic impurities like dirt, algae, and some forms of bacteria cant.Nautilus > Ң׏ Exclusive clamping design is proven to be one of the most secure in the industry. > ● Water ows in the bottom, up and around the filter grid for even distribution of diatomaceous earth, eliminating bridgingӔ between elements and providing highly efficient filtration. > Plus NSP D.E. Filters have been designed with curved grids to maximize filtration area. More filter area means better performance and longer periods between cleanings. Our exclusive internal design has been refined to minimize ow restrictions, and therefore requires minimal pumping power to achieve a needed ow rate. That means lower utility costs. And the 100% premium-grade stainless steel tank ensures reliable operation for years. > ΢׏ Exclusive grid assembly with molded-in handles lifts out easily for inspection and periodic cleaning. > ● Premium-grade stainless steel tank for superior strength. >

Open the catalog to page 1

Strong and corrosion-resistant premium-grade stainless steel tankWater ows in bottom, up and around filter grid for even D.E. distribution and highly efficient filtrationExclusive clamp design is super-safe and secure, year after year Filter Turnover Capacity in Gallons (Residential)Flow Rate(GPM) Model Area Vertical Tank Number (Sq. Ft.) Clearance* Diameter Res.** Com. 8 hours 10 hours 12 hours NSP 36 36 67" 18" 72 54 34,560 43,200 51,840 NSP 48 48 73" 18" 96 72 46,080 57,600 69,120 NSP 60 60 79" 18" 120 90 57,600 72,000 86,400 NSP 72 72 85" 18" 144 144 69,120 86,400 103,680 * Required...

Open the catalog to page 2
