Meteor® Top Mount Filters

Meteor® Top Mount Filters
2Pages

Catalog excerpts

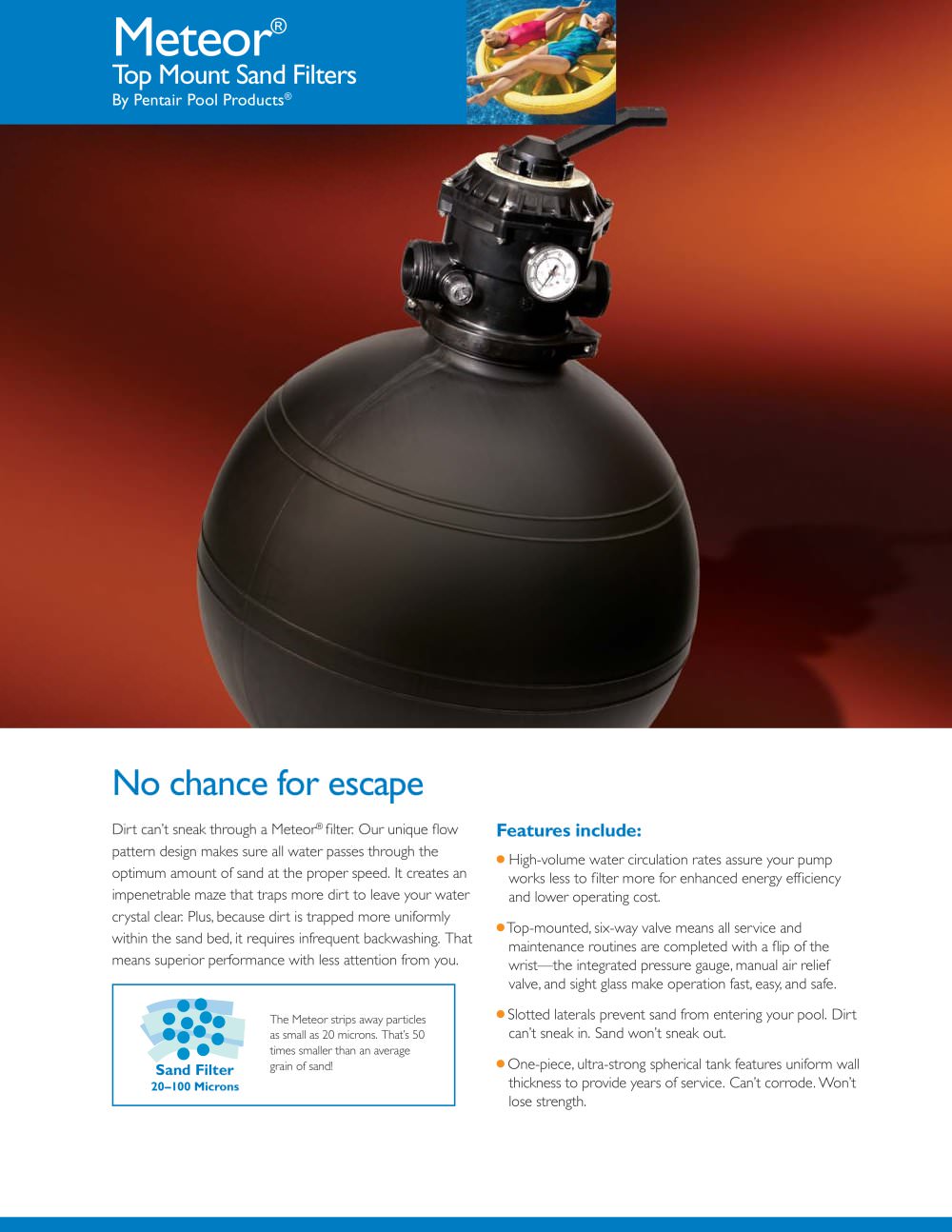

Dirt cant sneak through a Meteor > Ү filter. Our unique owpattern design makes sure all water passes through the optimum amount of sand at the proper speed. It creates an impenetrable maze that traps more dirt to leave your water crystal clear. Plus, because dirt is trapped more uniformly within the sand bed, it requires infrequent backwashing. That means superior performance with less attention from you. > ● High-volume water circulation rates assure your pump works less to filter more for enhanced energy efficiency and lower operating cost. > ● Top-mounted, six-way valve means all service and maintenance routines are completed with a ip of the wristthe integrated pressure gauge, manual air relief valve, and sight glass make operation fast, easy, and safe. > The Meteor strips away particles as small as 20 microns. Thatגs 50 times smaller than an average grain of sand! ● Slotted laterals prevent sand from entering your pool. Dirt cant sneak in. Sand wonҒt sneak out. Sand Filter > ● One-piece, ultra-strong spherical tank features uniform wall thickness to provide years of service. Cant corrode. WonҒt lose strength. > 20100 Microns size="-1">

Open the catalog to page 1

Easy-to-read pressure gauge for easy monitoringSix-position valve provides easy operation of all filter functionsDurable blow-molded tank offers commercial strength and life > Model Filter Vertical Filter Required Flow Rate Turnover Capacity (Gallons) Number Area Sq. Ft. Clearance* Diameter Sand Ά (lbs.) GPM** 8hrs. 10hrs. 12hrs. 58931800 1.8 45" 18.5" 65 37.5 18,000 22,500 27,000 58931900 2.1 45" 20.5" 100 45 21,600 27,000 32,400 58930000 2.5 45" 22.5" 150 50 24,000 30,000 36,000 *Required clearance to remove lter elements**Flow rates based on NSF 20 GPM per sq. ft. of lter area. Actual...

Open the catalog to page 2
