LX220 Solar Control Systems

LX220 Solar Control Systems
2Pages

Catalog excerpts

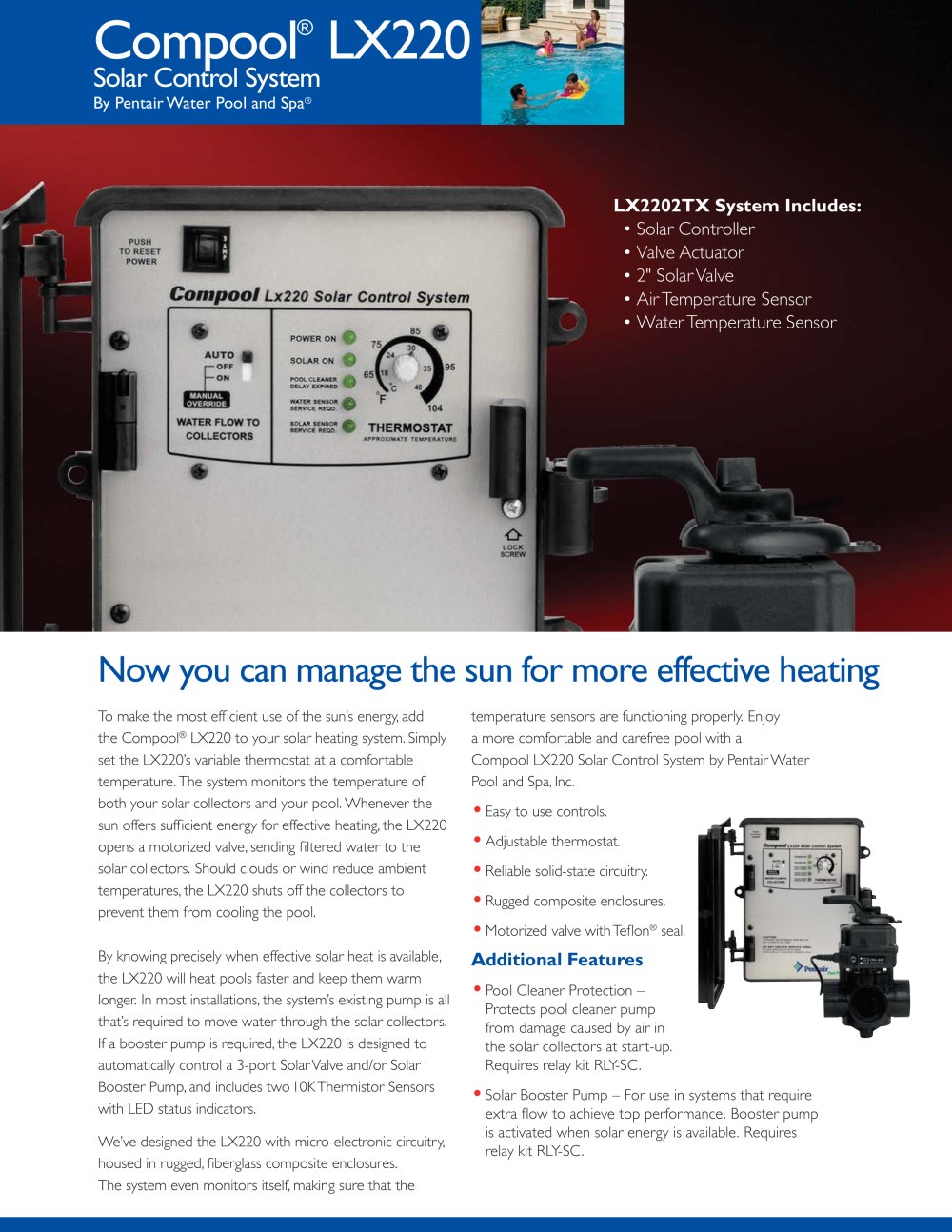

To make the most efficient use of the sunՒs energy, add the Compool > LX220 to your solar heating system. Simply set the LX220Βs variable thermostat at a comfortable temperature. The system monitors the temperature of both your solar collectors and your pool. Whenever the sun offers sufficient energy for effective heating, the LX220 opens a motorized valve, sending filtered water to the solar collectors. Should clouds or wind reduce ambient temperatures, the LX220 shuts off the collectors to prevent them from cooling the pool.By knowing precisely when effective solar heat is available, the LX220 will heat pools faster and keep them warm longer. In most installations, the systems existing pump is all thatҒs required to move water through the solar collectors. If a booster pump is required, the LX220 is designed to automatically control a 3-port Solar Valve and/or Solar Booster Pump, and includes two 10K Thermistor Sensors with LED status indicators.Weve designed the LX220 with micro-electronic circuitry, housed in rugged, fiberglass composite enclosures. The system even monitors itself, making sure that the temperature sensors are functioning properly. Enjoy a more comfortable and carefree pool with a Compool LX220 Solar Control System by Pentair Water Pool and Spa, Inc. > Reliable solid-state circuitry. > Rugged composite enclosures. > Motorized valve with Te on > seal. > Pool Cleaner Protection Protects pool cleaner pump from damage caused by air in the solar collectors at start-up. Requires relay kit RLY-SC. > Solar Booster Pump For use in systems that require extra ow to achieve top performance. Booster pump is activated when solar energy is available. Requires relay kit RLY-SC. >

Open the catalog to page 1

The Solar Valve, the only one of its kind, automatically drains the solar collectors when the pump shuts off. It also features a durable Te on ή seal that offers years of maintenance free operation.The Valve Actuator is built to last, with sturdy steel gears, a highly efficient low-voltage motor, and a weatherproof composite enclosure. The LX220 control panel lets you set your desired pool temperature, and automatically sends water to the solar collectors when conditions are just right. LX220B Solar Control263045 CVA24 Additional Valve Actuator (for water features valve)HW5B Solar Drain...
