FNS® Plus Filters
2Pages

{{requestButtons}}

Catalog excerpts

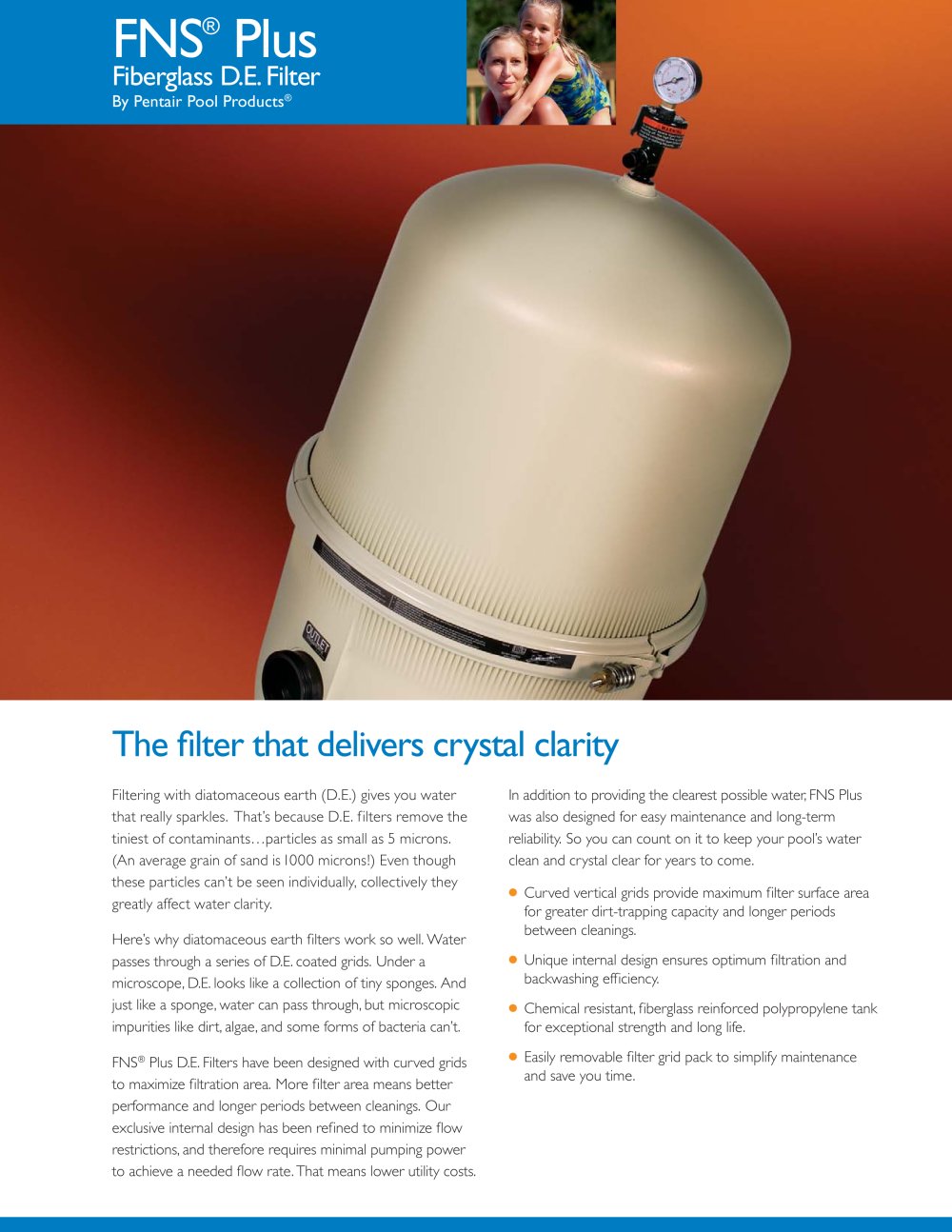

FNS® Plus Filters - 1

Filtering with diatomaceous earth (D.E.) gives you water that really sparkles. Thats because D.E. filters remove the tiniest of contaminants҅particles as small as 5 microns. (An average grain of sand is 1000 microns!) Even though these particles cant be seen individually, collectively they greatly affect water clarity.HereҒs why diatomaceous earth filters work so well. Water passes through a series of D.E. coated grids. Under a microscope, D.E. looks like a collection of tiny sponges. And just like a sponge, water can pass through, but microscopic impurities like dirt, algae, and some forms of bacteria cant.FNS > Ң׏ Curved vertical grids provide maximum filter surface area for greater dirt-trapping capacity and longer periods between cleanings. > ● Unique internal design ensures optimum filtration and backwashing efficiency. > ● Chemical resistant, fiberglass reinforced polypropylene tank for exceptional strength and long life. > Plus D.E. Filters have been designed with curved grids to maximize filtration area. More filter area means better performance and longer periods between cleanings. Our exclusive internal design has been refined to minimize ow restrictions, and therefore requires minimal pumping power to achieve a needed ow rate. That means lower utility costs. In addition to providing the clearest possible water, FNS Plus was also designed for easy maintenance and long-term reliability. So you can count on it to keep your poolΒs water clean and crystal clear for years to come. > ● Easily removable filter grid pack to simplify maintenance and save you time. >

Open the catalog to page 1
FNS® Plus Filters - 2

Corrosion-resistant fiberglass tank for long life2" plumbing connections for maximum owConveniently located 1ν" drain for easy and efficient cleanout and 100% drainingTension Control TM clamp for secure closure Model Filter Vertical Filter Flow Rate GPM Turnover Capacity (Gallons) Number Area Sq. Ft. Clearance* Diameter Res.** Com.*** 8 hours 10 hours 12 hours FNSP 24 24 48" 21.5" 60 48 23,040 28,800 34,560 FNSP 36 > 36 62" 21.5" 90 72 34,560 43,200 51,840 FNSP 48 > Ɔ 48 74" 21.5" 120 96 46,080 57,600 69,120 FNSP 60 > 60 86" 21.5" 150 120 57,600 72,000 86,400 > Ɔ NSF Listed. * Required...

Open the catalog to page 2
