FNS® Filters
2Pages

{{requestButtons}}

Catalog excerpts

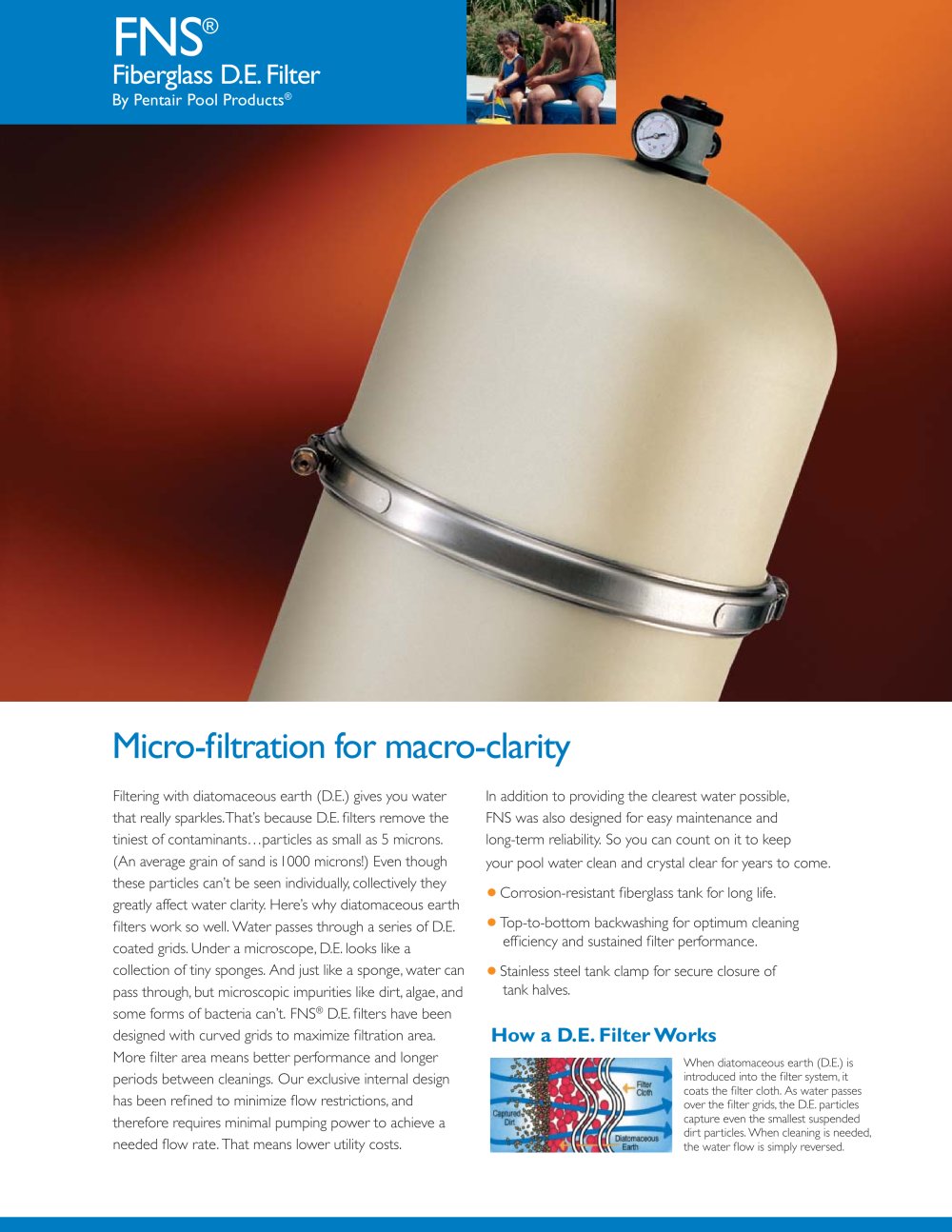

FNS® Filters - 1

Filtering with diatomaceous earth (D.E.) gives you water that really sparkles. Thats because D.E. filters remove the tiniest of contaminants҅particles as small as 5 microns. (An average grain of sand is 1000 microns!) Even though these particles cant be seen individually, collectively they greatly affect water clarity. HereҒs why diatomaceous earth filters work so well. Water passes through a series of D.E. coated grids. Under a microscope, D.E. looks like a collection of tiny sponges. And just like a sponge, water can pass through, but microscopic impurities like dirt, algae, and some forms of bacteria cant. FNS > Ң׏ Corrosion-resistant fiberglass tank for long life. > ● Top-to-bottom backwashing for optimum cleaning efficiency and sustained filter performance. > ● Stainless steel tank clamp for secure closure of tank halves. > D.E. filters have been designed with curved grids to maximize filtration area. More filter area means better performance and longer periods between cleanings. Our exclusive internal design has been refined to minimize ow restrictions, and therefore requires minimal pumping power to achieve a needed ow rate. That means lower utility costs. In addition to providing the clearest water possible, FNS was also designed for easy maintenance and long-term reliability. So you can count on it to keep your pool water clean and crystal clear for years to come. > When diatomaceous earth (D.E.) is introduced into the filter system, it coats the filter cloth. As water passes over the filter grids, the D.E. particles capture even the smallest suspended dirt particles. When cleaning is needed, the water ow is simply reversed. size="-1">

Open the catalog to page 1
FNS® Filters - 2

Corrosion-resistant fiberglass tank for long life 2" plumbing connections for maximum ow and filtration efficiencyStainless steel tank clamp for secure closure Model Filter Vertical Filter Flow Rate GPM Turnover Capacity (Gallons) Number Area Sq. Ft. Clearance* Diameter Res.** Com. 8 hours 10 hours 12 hours FNS 24 24 45" 18.5" 48 36 23,040 28,800 34,560 FNS 36 36 57" 18.5" 72 54 34,560 43,200 51,840 FNS 48 48 63" 18.5" 96 72 46,080 57,600 69,120 FNS 60 60 75" 18.5" 120 90 57,600 72,000 86,400 > * Required clearance to remove filter elements. ** Maximum flow rate. Flow rate is based on 2.0...

Open the catalog to page 2
