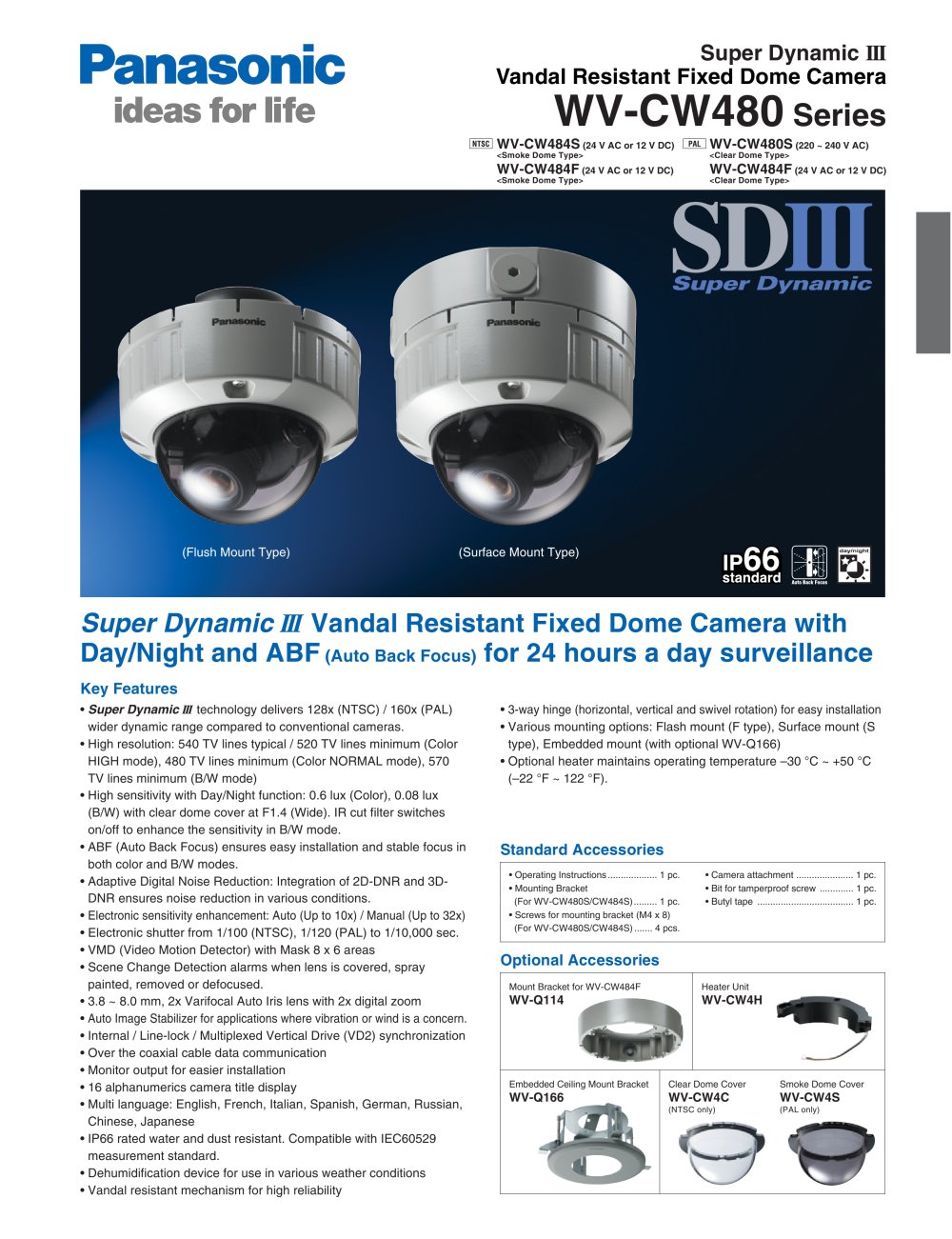

Vandal Resistant Fixed Dome Camera <Smoke Dome Type> <Smoke Dome Type> <Clear Dome Type> <Clear Dome Type> Super Dynamic in Vandal Resistant Fixed Dome Camera with Day/Night and ABF (Auto Back Focus) for 24 hours a day surveillance • Super Dynamic III technology delivers 128x (NTSC) / 160x (PAL) wider dynamic range compared to conventional cameras. • High resolution: 540 TV lines typical / 520 TV lines minimum (Color HIGH mode), 480 TV lines minimum (Color NORMAL mode), 570 TV lines minimum (B/W mode) • High sensitivity with Day/Night function: 0.6 lux (Color), 0.08 lux (BAA/) with clear dome cover at F1.4 (Wide). IR cut filter switches on/off to enhance the sensitivity in B/W mode. • ABF (Auto Back Focus) ensures easy installation and stable focus in both color and BAA/ modes. • Adaptive Digital Noise Reduction: Integration of 2D-DNR and 3D- DNR ensures noise reduction in various conditions. • Electronic sensitivity enhancement: Auto (Up to 10x) / Manual (Up to 32x) • Electronic shutter from 1/100 (NTSC), 1/120 (PAL) to 1/10,000 sec. • VMD (Video Motion Detector) with Mask 8x6 areas • Scene Change Detection alarms when lens is covered, spray painted, removed or defocused. • 3.8 ~ 8.0 mm, 2x Varifocal Auto Iris lens with 2x digital zoom • Auto Image Stabilizer for applications where vibration or wind is a concern. • Internal / Line-lock / Multiplexed Vertical Drive (VD2) synchronization • Over the coaxial cable data communication • Monitor output for easier installation • 16 alphanumerics camera title display • Multi language: English, French, Italian, Spanish, German, Russian, Chinese, Japanese • IP66 rated water and dust resistant. Compatible with IEC60529 measurement standard. • Dehumidification device for use in various weather conditions • Vandal resistant mechanism for high reliability • 3-way hinge (horizontal, vertical and swivel rotation) for easy installation • Various mounting options: Flash mount (F type), Surface mount (S type), Embedded mount (with optional WV-Q166) • Optional heater maintains operating temperature -30 °C ~ +50 °C Standard Accessories • Mounting Bracket • Screws for mounting bracket (M4 x 8) Optional Accessories Heater Unit Embedded Ceiling Mount Bracket Clear Dome Cover Smoke Dome Cover (NTSC only) (PAL only)

Open the catalog to page 1

Part Names and Functions * With optional Heater Unit WV-CW4H ** Optional Heater Unit WV-CW4H cannot be used under 12 V DC operation ©Video Output Cable with BNC Connector © Focus Lock Lever © Zoom Lock Lever ©Tilting Lock Screw ©Panning Table ©Panning Lock Screw ©Camera Lock Screw ©Monitor Output Jack ©Optional Heater Connector ©LED Indicator ©Operation Buttons ©SET Button ©DOWN Button ©LEFT Button ©RIGHT Button (Surface mount type) WV-CW484S: 225(8-7/8") (Flush mount type) Above figures are for NTSC model. Figures for PAL model are slightly different. Trademarks and registered trademarks -...
