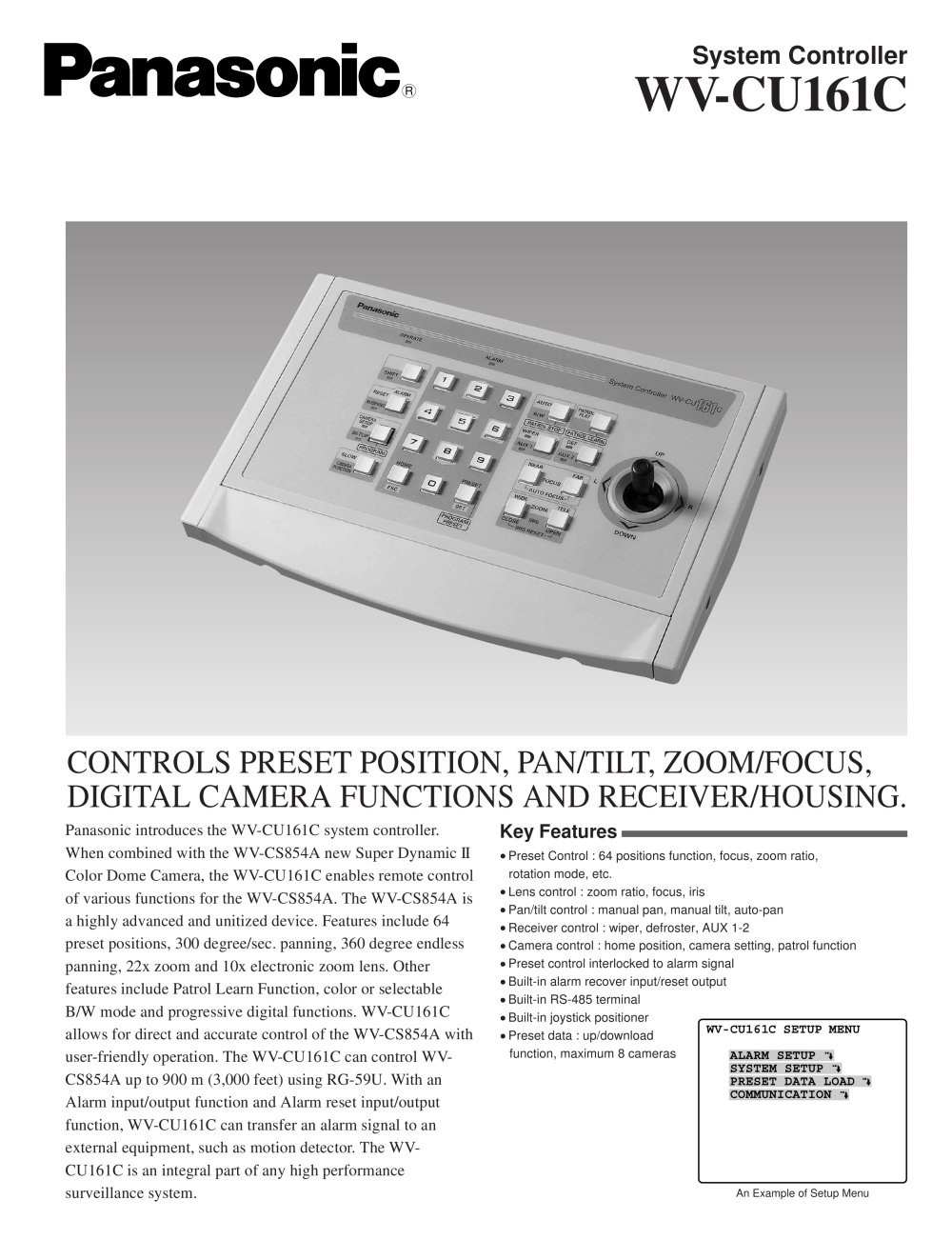

System Controller WV-CU161C R CONTROLS PRESET POSITION, PAN/TILT, ZOOM/FOCUS, DIGITAL CAMERA FUNCTIONS AND RECEIVER/HOUSING. Panasonic introduces the WV-CU161C system controller. When combined with the WV-CS854A new Super Dynamic II Color Dome Camera, the WV-CU161C enables remote control of various functions for the WV-CS854A. The WV-CS854A is a highly advanced and unitized device. Features include 64 preset positions, 300 degree/sec. panning, 360 degree endless panning, 22x zoom and 10x electronic zoom lens. Other features include Patrol Learn Function, color or selectable B/W mode and progressive digital functions. WV-CU161C allows for direct and accurate control of the WV-CS854A with user-friendly operation. The WV-CU161C can control WVCS854A up to 900 m (3,000 feet) using RG-59U. With an Alarm input/output function and Alarm reset input/output function, WV-CU161C can transfer an alarm signal to an external equipment, such as motion detector. The WVCU161C is an integral part of any high performance surveillance system. Key Features • Preset Control : 64 positions function, focus, zoom ratio, rotation mode, etc. • Lens control : zoom ratio, focus, iris • Pan/tilt control : manual pan, manual tilt, auto-pan • Receiver control : wiper, defroster, AUX 1-2 • Camera control : home position, camera setting, patrol function • Preset control interlocked to alarm signal • Built-in alarm recover input/reset output • Built-in RS-485 terminal • Built-in joystick positioner • Preset data : up/download function, maximum 8 cameras An Example of Setup Menu

Open the catalog to page 1

MAJOR OPERATING CONTROLS SYSTEM EXAMPLES Basic Connection Wiper/Auxiliary 1 button Alarm indicator Auto Panning/Black and White Operate indicator Selectable/Patrol Stop button Patrol Play/Patrol Learn button Shift button Defroster/Auxiliary 2 button Alarm Reset/ Joystick Controller Suspend button System Controller WV-CU161C WV-CS854A System Controller WV-CU OPERATE Digital Disk Recorder WJ-HD100 C ALARM 1 SHIFT 2 3 4 5 6 PATROL PLAY AUTO B/W UP ALARM RESET SUSPEND CAMERA SETUP SETUP WIPER DEF AUX1 AUX2 NEAR 7 8 9 L R FOCUS AUTO FOCUS PROGRAM RESET CAMERA FUNCTION FAR HOME PRESET WIDE SET...
