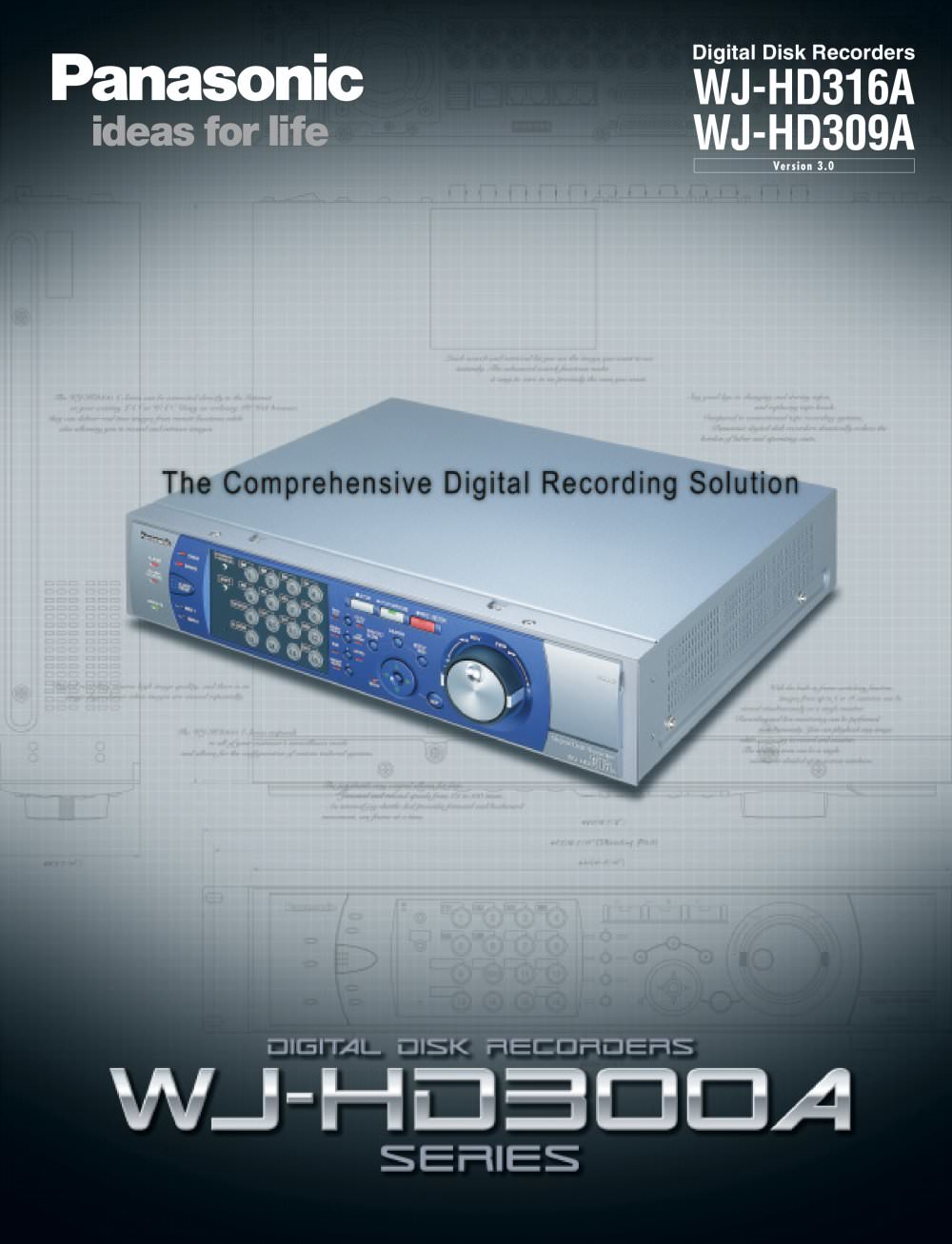

Digital Disk Recorders The Comprehensive Digital Recording Solution [DISK RECORDERS

The WJ-HD300A Series offers high quality pictures and disk saving recording utilizing a new compression technology. Panasonic presents the new WJ-HD300A Series with a unique new system featuring a high compression ratio of 1/30 for practical use. Under the "All-in-One Solution" concept, all the vital recording components and features are condensed into one unit. With one single unit, unprecedented, highly reliable surveillance recording is possible in a wide range of applications. The WJ-HD300A Series also features System Scalability to meet extended user needs. 1/30 Super Compression:...

Open the catalog to page 2

Superior surveillance made possible by state-of-the-art digital features. Instant Search and Playback Filtered Search Disk Management Filtered records Various parameters/filters such as time & date, camera channel, REC events, text and VMD enables instant search and playback from mass recorded data. Text *REC Events VMD Time & Date Camera Channel * REC Event filter REC mode High-Refresh Rate Recording High-speed digital processing enables high-refresh rate recording - to ensure critical moments are not missed. Max. 30 image per sec. @ 720 x 480 (FRAME/NTSC) Max. 60 image per sec. @ 720 x...

Open the catalog to page 3

MAJOR OPERATING CONTROLS: WJ-HD316A Front View Rear View 9 Alarm Suspension Indicator O Alarm Reset Button O Monitor Switch Button Camera Selection Buttons Pan, Tilt, Latest Recorded Image Playback Button Zoom, Focus, A - B Repeat Button Iris, Listing Button Preset, Auto Pan Button Stop Button Play/Pause Button Record Button Slow Button Search Button Setup, Escape Button • Copy Port S-Video Output Connector Video Output Connector © Audio Input Connectors ( © Audio Output Connector ( © Video Input Connectors I © Video Output Connectors © Monitor Output Connector ( Monitor Connector ) PS-Data...

Open the catalog to page 4

System Scalability: Viewing cascade connection (up to 4 main units) Up to four (4) WJ-HD316A units can be cascaded to increase maximum 64 video inputs. All 64 cameras can be switched and viewed in live and playback from the master, while each slave unit has its own live viewing monitor. Live / Playback System Controller Expandable to 7.5 Terabytes (TB) storage In addition to a total 500 GB capacity of the main unit WJ-HD316A/309A, one WJ-HDE300 extension unit provides up to 1.0 TB (1,000 GB). With seven (7) extension units, the maximum capacity can be extended up to 7.5 TB to satisfy long...

Open the catalog to page 5

STANDARD PRODUCT CONFIGURATIONS OPTIONAL COMPONENTS & ACCESSORIES Digital Disk Recorders Extension Unit System Controllers Management PC Software WJ-HD316A (16ch) WJ-HD309A (9ch) WJ-HDE300 WV-CU360C WV-AS65 (4 drive bays for optional HDD units) WV-CU650 • Built-in 250GB HDD unit, and 1 drive bay for optional HDD unit • Built-in an Ethernet port SYSTEM EXAMPLES 3 Up to 7.5TB Capabilities with Optional Extension Unit & HDDs 1 Basic System Configurations WV-CW964 x 8 CH1 Color Monitor x 2 WV-CP480 Series x 8 CH8 CH9 WV-CS954 x 8 CH16 CH1 CH2 Color Monitor x 2 WV-CW374 x 8 CH8 CH9 CH15 CH16...
