digital CCTV video recorder
6Pages

{{requestButtons}}

Catalog excerpts

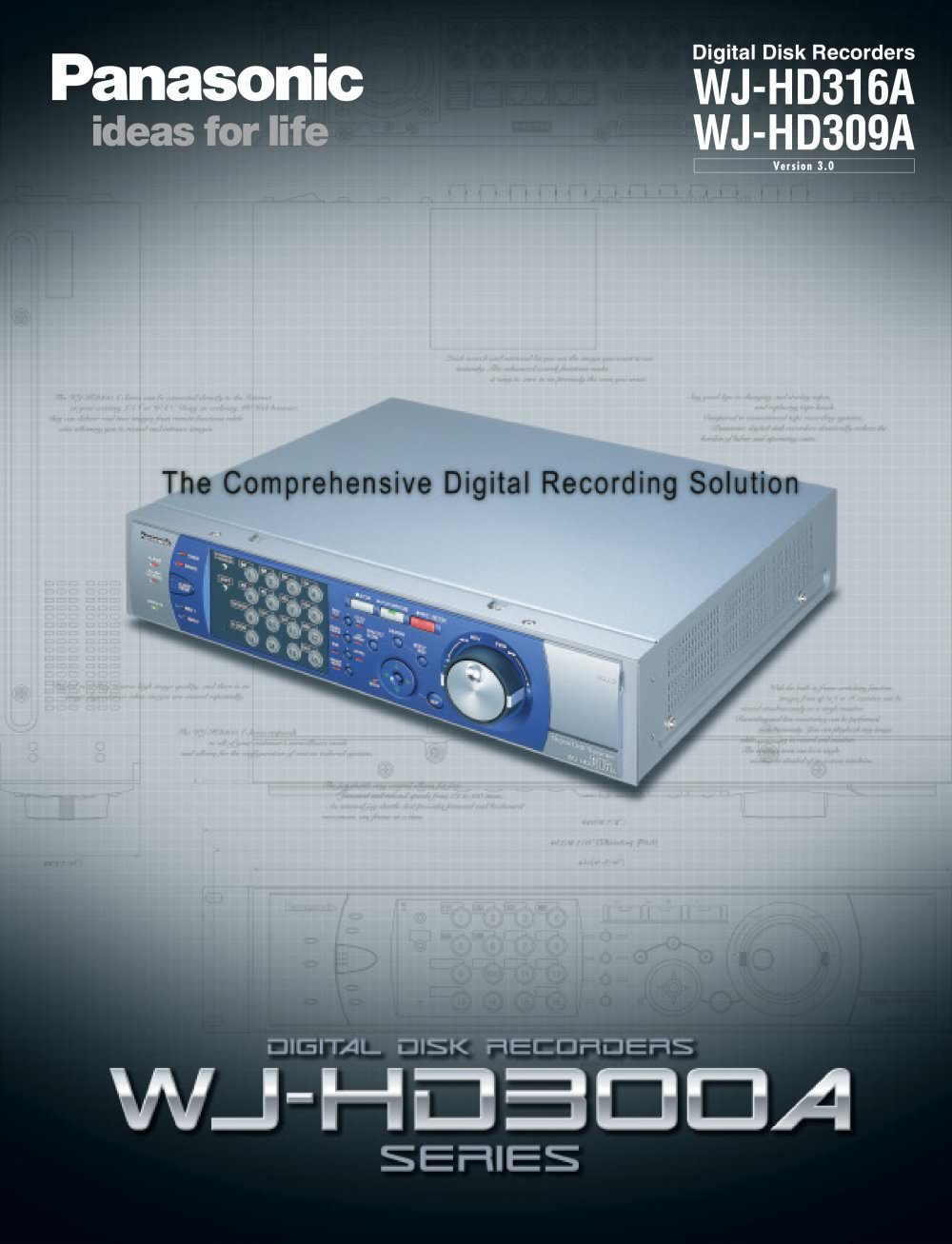

digital CCTV video recorder - 1

Digital Disk Recorders WJ-HD316AWJ-HD309A >

Open the catalog to page 1
digital CCTV video recorder - 2

The WJ-HD300A Sries offers high quality pictures and disk saving utilizing a new compression technology. Panasonic prsents the new WJ-HD300A S驩ries with a unique new system featuring a high compression ratio of 1/30 for practical use. Under the "All-in-One Solution" concept, all the vital recording components and features are condensed into one unit. With one single unit, unprecedented, highly reliable surveillance recording is possible in a wide range of applications. The WJ-HD300A Series also features System Scalability to meet extended user needs. recording 1/30 Super Compression:...

Open the catalog to page 2
digital CCTV video recorder - 4

General Power Source120 V AC, 60 HzPower Consumption75 W Ambient Operating Temperature+5 C - +45 а C (41 F - 113 а F)Ambient Operating HumidityLess than 90 % Dimensions VideoVideo Input Connectors 420 mm (W) x 88 mm (H) x 350 mm (D) [16-9/16" (W) x 3-7/16" (H) x 13-3/4" (D)] Input/Output (excluding rubber feet and projections)Weight9.5 kg (21 lbs.) 1 V [P-P] / 75 Ω , with auto termination loop-thru, vertical timing pulse multiplexed, x8 (1 to 8 CH) (BNC) 1 V [P-P] / 75 Ω , with auto-termination loop-thru, x8 (9 to 16 CH) (BNC)Cascade Input Connector1 V [P-P] / 75 Ω (BNC)Video Output...

Open the catalog to page 4
