Dome cameras
14Pages

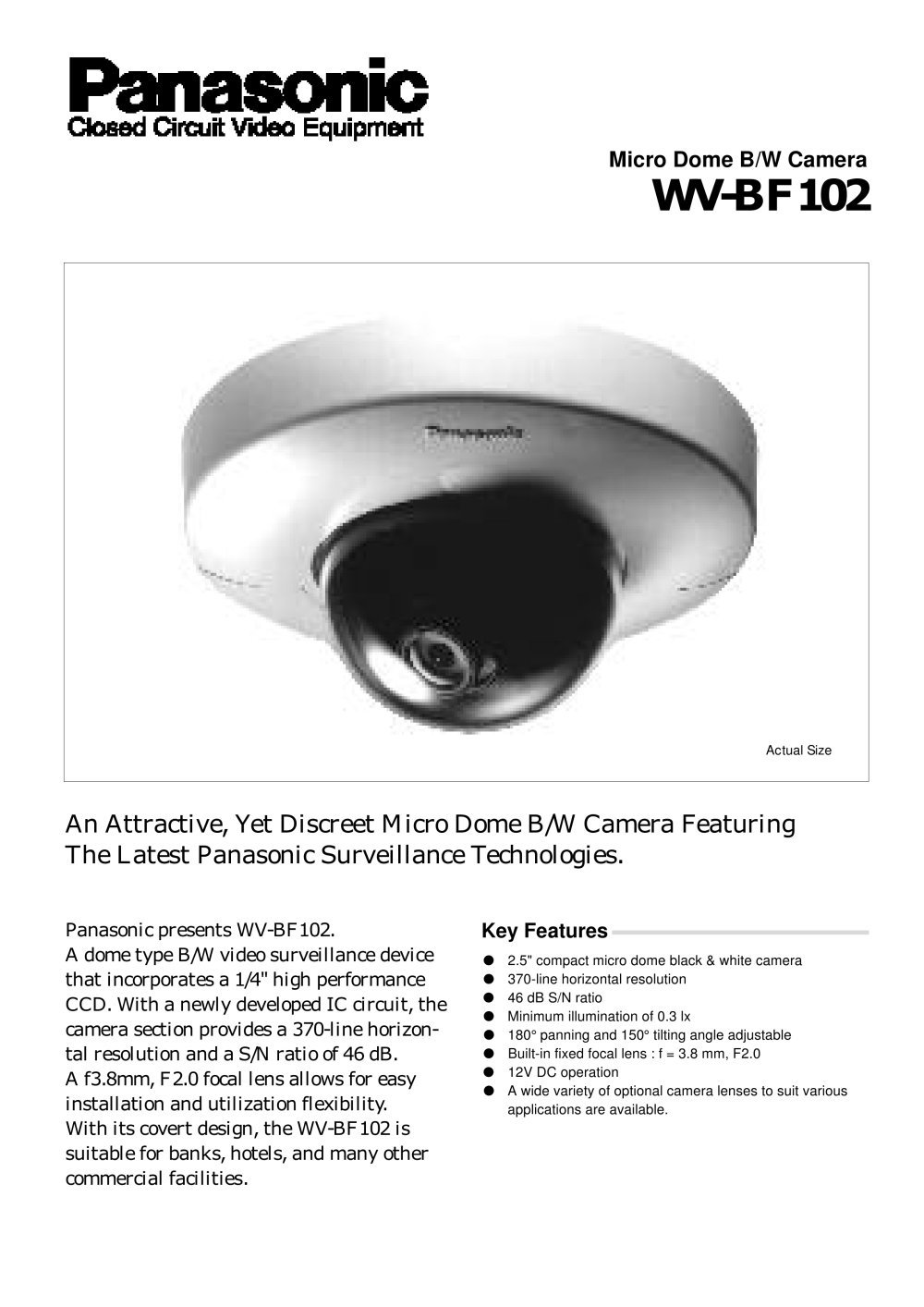

Actual Size 2.5" compact micro dome black & white camera 370-line horizontal resolution 46 dB S/N ratio Minimum illumination of 0.3 lx 180 panning and 150 а tilting angle adjustable Built-in fixed focal lens : f = 3.8 mm, F2.0 12V DC operation A wide variety of optional camera lenses to suit variousapplications are available. >

Actual Size 2.5" compact colour dome camera 330-line horizontal resolution 46 dB S/N ratio Minimum illumination of 5 lx 180 panning and 150 а tilting angle adjustable Built-in fixed focal lens : f = 3.8 mm, F2.0 ATW (Auto Tracing White Balance) control function isprovided. 12V DC operation A wide variety of optional camera lenses to suit variousapplications are available. >

Super dynamic function. Built-in vari-focal lens: f 3.2-6.4 mm, F 1.6-1.9. 753 horizontal pixels CCD with 480 TV line horizontal resolution. Chroma averaging circuit. Signal to noise ratio 50 dB. On screen setup menu. 240-240 V AC (WV-CF250) 24 V AC (WV-CF254) Single wire control for Menu Set up. Minimum illumination of 5 lx (0.5 foot candle). 2H type vertical enhancer. High light aperture correction. >

WV-CF250WV-CF254 Pick-up Device 753 (H) 582 (V) pixels, Interline Transfer CCD Scanning Area 4.9 (H) ח 3.6 (V) mm (Equivalent to scanning area of 1/3" pick-up tube) Scanning 625 lines / 50 fields / 25 frames Horizontal 15.625 kHz Vertical 50.00 Hz Synchronization Internal Sync / Line Lock / VD2 Video Output 1.0 V [p-p] PAL composite 75 Ω / BNC connector Horizontal Resolution 480 TV Line Signal-to-Noise Ratio 50 dB (AGC OFF, weight ON) Minimum Illumination 5 lx (0.5 footcandle) at WIDE end Lens Variable focal ALC lens: f 3.2 mm-f 6.4 mm ( Gain Control Selectable AGC ON or OFF (SETUP MENU)...

Compact ո110mm diameter dome-sized all-in-one colour camera, forwide area surveillance applications. > Built-in Super Dynamic II function has 80 times wider dynamic rangewhen compared to a conventional camera. > 570-line at B/W and 480-line at colour imaging horizontal resolution. > Built-in Digital-FLIP by memory read out, allows 180-degree turnautomatically. > IP52 drip proof environmental structure. > Can select colour or B/W capturing by removal of IR filter, enablesimprovement of the sensitivity for any applications ; 0.06 lx at B/W or 1 lx at colour imaging (at sensitivity 2x up). >...

Wire ColourGrayWhitePinkGreen FunctionOUT 1GNDOUT 2GND > DataTransmissionBrownGNDT (B) T (A) R (B)R (A)RedOrange YellowGreenDataReception > Wire ColourBlackBrownRedOrangeYellowSky BlueBluePurple FunctionIN 1GNDIN 2GNDIN 3GNDIN 4GND > Model No WV-CS850WV-CS854 Effective Pixels 737 (H) x 575 (V) 46 Scanning Area 1/4-type Super Dynamic II CCD Synchronization Internal / Line-lock / Multiplexed Vertical Drive (VD2) Horizontal Scanning Frequency 15.625 kHz Vertical Scanning Frequency 50 Hz Video Output 1.0 v[p-p] PAL/CCIR composite / 75 Ω H. Resolution more than 570-line at B/W, or 480-line at...

Vandal ProofSuper Dynamic II Colour Camera > (with Low-Light B/W Mode) Closed Circuit Video Equipment

With a body made of die-cast aluminum and a domemade of 3.5mm thickpolycarbonate, these cameras are tough enoughto resist severe shocks. The camera lens unithas a spring structure,so the chassis canwithstand external shocks. Meet IP66 international standards. With excellentdust and moisture resistantcapabilities these cameras can be used outdoors, underbuilding eaves. >
