Plate heat exchanger

Product catalog summary
Technical Specifications:
  • The document provides technical data for various heat exchanger models, including CB14-20H, CB14-40H, CB27-24M, CB27-50M, CB76-30L, and CB76-40L.
  • Key parameters include capacity (ranging from 40 kW to 450 kW), primary and secondary side flow rates, pressure drops, and connection sizes.
  • Maximum pressure for primary and secondary sides is specified as 32 bar for most models, with connection sizes varying from ¾” to 2”.
Dimensions:
  • Dimensions for each model are provided, detailing measurements such as length, width, and height.
  • For example, the CB14-20H model has dimensions of 172 mm (a), 42 mm (b), 208 mm (c), 78 mm (d), and 24 mm (e).
Heat Exchanger Features:
  • The heat exchangers are constructed from profiled metal plates made of acid-proof stainless steel, ensuring high efficiency and effective heat transfer.
  • The design includes closely-packed metal plates forming thin channels, resulting in a compact heat exchanger.
  • These exchangers are seal-less, making them suitable for processes involving high and low temperatures and pressures.
  • Available in sizes ranging from 40 kW to 1000 kW, they are adaptable to various installations.
See more

Catalog excerpts

Plate heat exchanger-1

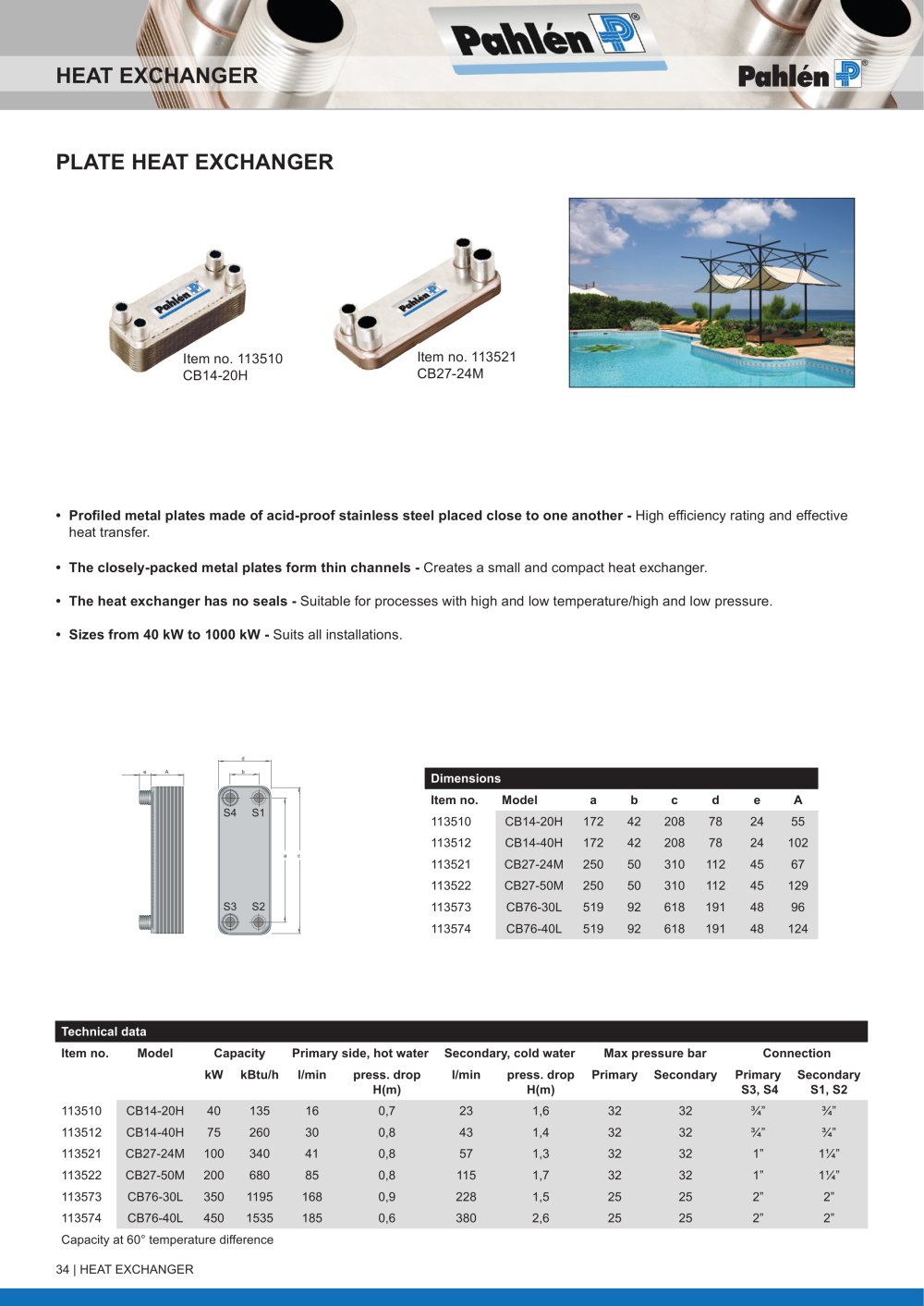

PLATE HEAT EXCHANGER • Profiled metal plates made of acid-proof stainless steel placed close to one another - High efficiency rating and effective heat transfer. • The closely-packed metal plates form thin channels - Creates a small and compact heat exchanger. • The heat exchanger has no seals - Suitable for processes with high and low temperature/high and low pressure. • Sizes from 40 kW to 1000 kW - Suits all installations. Technical data Capacity at 60° temperature difference Primary side, hot water Secondary, cold water press, drop press, drop Primary Secondary Primary Secondary
