Autodos M1-M2-M3

Autodos M1-M2-M3
1 / 4 PagesView full catalog

Autodos M1-M2-M3

Product catalog summary
Overview: The document describes the Autodos M1-M2-M3, an automatic measuring and control unit designed for commercial swimming pools. It features a modern design with a new flow cell and is part of Pahlén's third-generation technology for monitoring water quality.
Key Features:
  • Measures pH, redox, free chlorine, and total chlorine.
  • Automatic dosing of chemicals to optimize consumption.
  • Separate module for each electrode, allowing for easy calibration and maintenance.
  • Built-in pre-filter, temperature sensor, and electronic flow meter.
  • Alarm and safety settings with user access protection.
  • Easy installation and operation with a digital control panel.
Design and Functionality:
  • The Autodos features a transparent PVC flow cell with a tiltable module for easy maintenance.
  • Displays clear readings of chlorine, pH, flow, and temperature on LED displays.
  • Equipped with a transparent cover for visual flow indication and easy access for calibration.
Models and Specifications:
  • Autodos M1: Single-channel instrument for monitoring one parameter (free chlorine, pH, redox, or total chlorine).
  • Autodos M2: Dual-channel instrument for monitoring pH and free chlorine or pH and redox.
  • Autodos M3: Three-channel instrument for monitoring pH, free chlorine, and redox or pH, free, and combined chlorine.
Additional Components:
  • Autologger: Connects Autodos to a PC for logging measurement values and registering alarms. It includes a datalogger and a communication module.
  • Communication Module: Provides RS232 communication to a PC and includes cables and an external transformer.
Safety and Customization:
  • Customizable alarm levels for pH, redox, chlorine, and flow.
  • Built-in safety functions to prevent overdosing and unauthorized access.
See more

Catalog excerpts

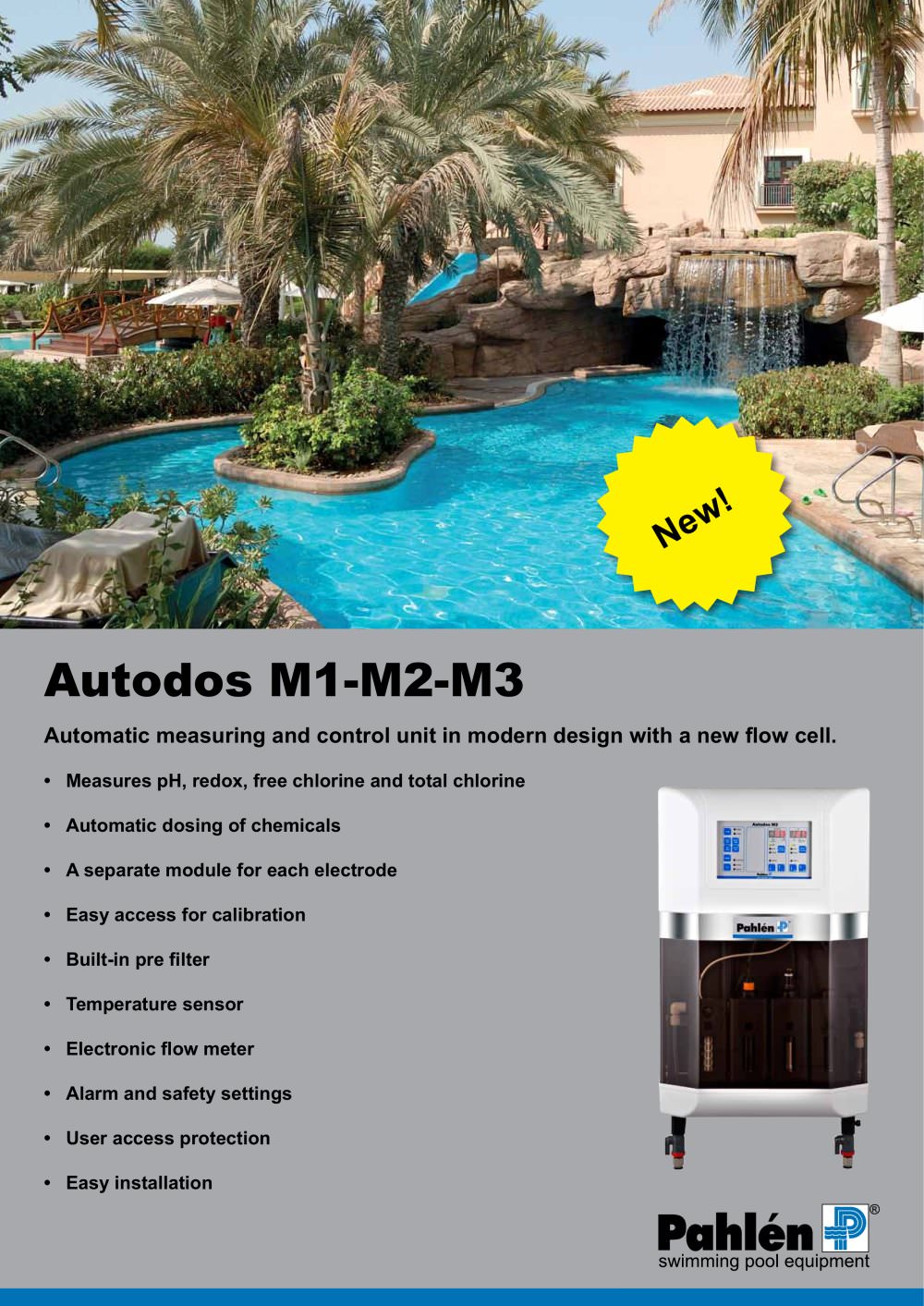

Autodos M1-M2-M3-1

Automatic measuring and control unit in modern design with a new flow cell. • Measures pH, redox, free chlorine and total chlorine • Automatic dosing of chemicals • A separate module for each electrode • Easy access for calibration • Temperature sensor • Electronic flow meter • Alarm and safety settings • User access protection • Easy installation swimming pool equipment

 Open the catalog to page 1
Autodos M1-M2-M3-2

Pahlén Autodos - measuring and control unit Autodos is the easy way to manage water quality Highly intelligent Autodos for commercial pools. The optimum solution for the public swimming pool is to install a Pahlén Autodos in the system. The water quality is continuously monitored, which makes it easier to maintain a clear and clean water. Through the use of automatic dosing, the chemical consumption is controlled and optimized, as a result of a more even flow of chemicals. Additional control and disinfection are obtained with a Pahlén C02 unit and UV light. Autodos is a well known, reliable and...

 Open the catalog to page 2
Autodos M1-M2-M3-3

Autodos technical features • Digital control and display - Easy to set and operate. • New modern design and material - For easy handling and maintenance. • Tiltable flow cell module - Makes the maintenance easier than ever. • Transparent flow cell with flow meter - Clear view of the current flow. • Starting module with prefilter, flow meter, flow guard, temperature sensor - Everything in one place for easy maintenance. • User access protection, that can be activated when necessary - Prevents unauthorized access to the control unit. • Customized alarm levels - Easy to set your own values for pH,...

 Open the catalog to page 3
Autodos M1-M2-M3-4

swimming pool equipment

 Open the catalog to page 4
